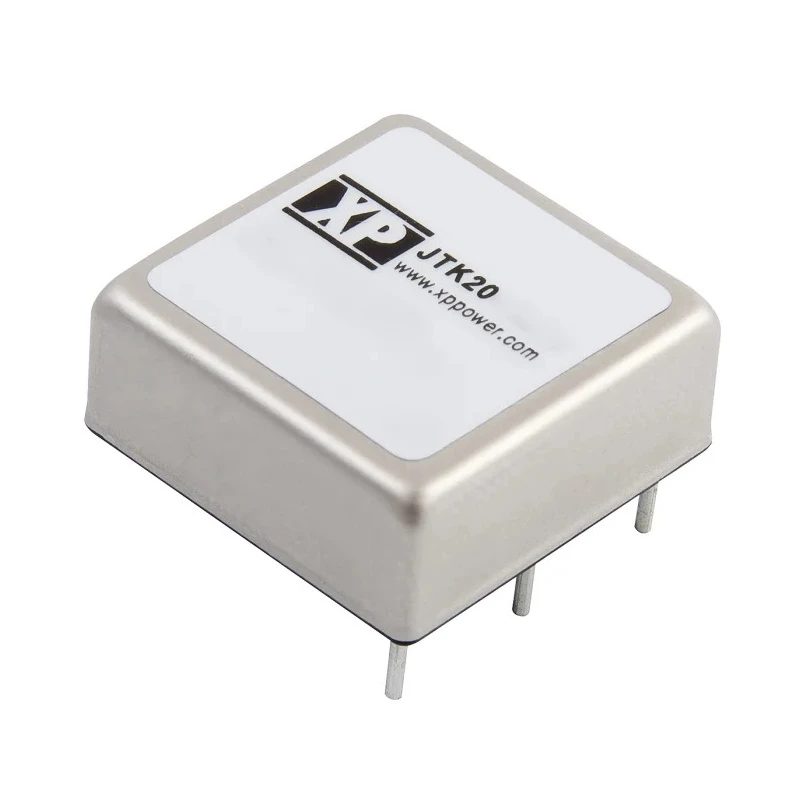

XP Power JTK DC/DC Converter 5V DC 4A 36V DC Input 20W Through Hole DIP Package JTK2024S05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JTK DC/DC Converter, 5V dc/ 4 A, 36V dc I |
| Brand | XP Power |
| Efficiency | 89% |
| Length | 25.4mm |
| Model | JTK2024S05 |
| Depth | 9.9mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JTK |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 560000h |
| Number of outputs | 1 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 4A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
| Wide 4 | 1 input range |
Key Features
- Offers a wide input voltage range of 9V to 36V DC for versatile applications.
- Provides a single isolated output of 5V DC at 4 Amps output current.
- Features a high efficiency rating of up to 89% for energy saving performance.
- Supports operation over a temperature range from -40°C to 100°C ensuring reliability.
- Designed with 1.6 kV DC isolation for safety and noise reduction.
- Compact dimensions of 25.4mm length, 25.4mm width, and 9.9mm depth in a DIP package.
- Mean time between failures (MTBF) rated at 560,000 hours for long-term durability.
- Ideal for industrial, electronic component, power supply, and transformer applications.
Product Description
XP Power JTK2024S05 DC/DC Converter is a highly reliable power supply solution delivering 5V DC output at 4 Amps with a maximum output power of 20 Watts. It supports a wide 4:1 input voltage range from 9V DC minimum to 36V DC maximum. Housed in a standard through-hole DIP package, this converter offers compact dimensions with 25.4mm length and width, and 9.9mm depth.
Designed for industrial and electronic component use, the device provides single isolated output with isolation voltage rating of 1.6kV DC to ensure safe and noise-free operation. The converter attains an efficiency of up to 89%, helping reduce energy consumption and thermal dissipation.
It is specified for operation over a wide temperature range between -40°C and +100°C, making it suitable for demanding environments. The converter incorporates a Mean Time Between Failures (MTBF) of 560,000 hours, underscoring its robustness for long-term industrial and power supply applications.
This DC/DC Converter series by XP Power is ideal for applications in electronic components, power supply transformers, and industrial control systems requiring a stable isolated output voltage and current configuration.
Wide 4:1 input voltage range from 9V to 36V DC. Single isolated output voltage of 5 V DC at 4 A current. Efficiency rating up to 89% for optimal power consumption. Operating temperature range from -40°C to 100°C for rugged environments.
Isolation voltage of 1600 V DC for enhanced safety. Compact DIP package with dimensions 25.4 x 25.4 x 9.9 mm. High MTBF of 560,000 hours for reliable performance. Explore the range of XP Power DC/DC Converters at EnvMart for trusted power supply solutions in industrial and electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a wide input voltage range from 9V DC to 36V DC, allowing for versatile applications.
It provides a single isolated output of 5V DC at a maximum output current of 4 Amps.
The maximum output power of this unit is 20 Watts.
This converter has an efficiency rating of up to 89%, contributing to energy savings.
The dimensions of this model are 25.4mm in length, 25.4mm in width, and 9.9mm in depth.
It features an isolation voltage rating of 1.6kV DC, ensuring safety and noise reduction during operation.
This model operates effectively over a temperature range from -40°C to 100°C, making it suitable for rugged environments.
The MTBF for this unit is rated at 560,000 hours, indicating its reliability for long-term use.
It is designed for through-hole mounting, fitting into standard DIP packages.
This model has a single output, providing a stable isolated voltage.
It is ideal for use in industrial applications, electronic components, power supply transformers, and control systems requiring a stable output.
The input ratio for this model is 4:1, allowing for flexibility in input voltage selection.
