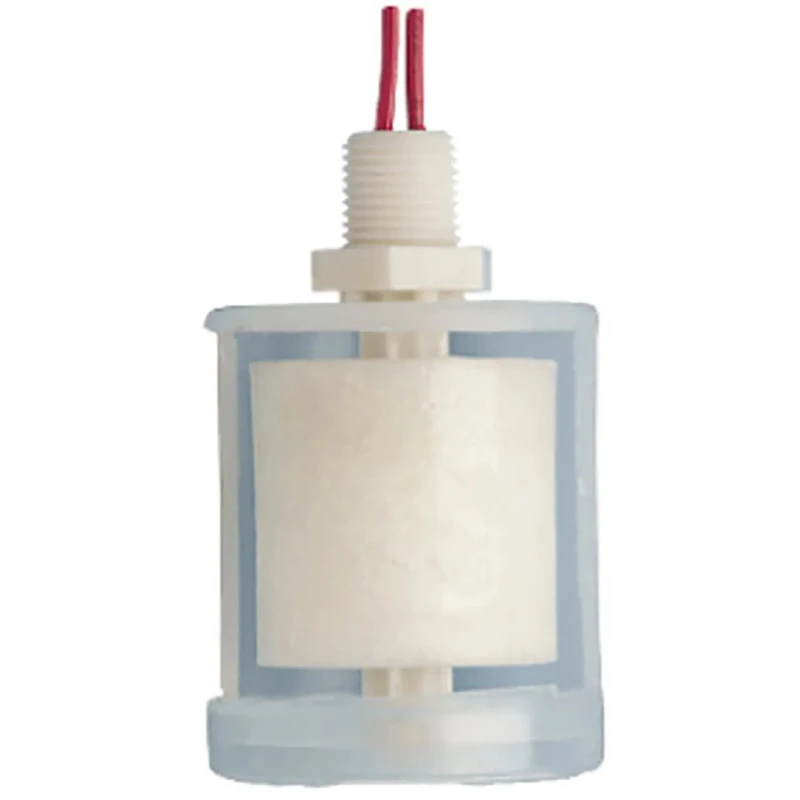

Gems Sensors LS-3 Series Vertical Float Switch, 560 mm Cable, SPST NO/NC, 240 V AC Max 142545

Gems Sensors 142545 LS-3 Series Vertical Float Switch is a compact and reliable fluid level switch engineered for use in shallow tanks or restricted spaces. Featuring a 560 mm cable and SPST NO/NC switch output, it supports a maximum AC voltage of 240 V and a pressure rating of 150 psi. The polypropylene housing provides chemical resistance and robustness, making it suitable for challenging industrial environments.

This float switch operates effectively within a temperature range of -40°C to 65.6°C, ensuring stable performance in varied climatic conditions. The float can be easily reversed to switch between normally open and normally closed operations, allowing for versatile installation depending on application needs.

Designed with compact NPT thread fittings, installation is straightforward in most tanks or vessels. The LS-3 series complies with EU directive 2011/65/EC (RoHS) and FDA standards, underscoring its safety and environmental compliance.

Common applications include industrial process control, water and wastewater treatment, HVAC systems, laboratory instrumentation, and agricultural liquid level monitoring. Its design supports high reliability for continuous use in demanding settings.

The switch can be installed either way up for flexibility in mounting. The float operation is easily reversed for normally closed or normally open switching. Polypropylene housing offers excellent chemical resistance and durability.

Supports a maximum AC voltage of 240 V and pressure rating up to 150 psi. Operates reliably in temperatures ranging from -40°C to 65.6°C. Compact size with NPT threading for easy installation in various applications. Meets EU RoHS directive 2011/65/EC and FDA standards ensuring compliance and safety.

Ideal for high-volume, low-cost use in industrial, laboratory, and commercial fluid level sensing. Explore other Float Switches and sensor solutions in the Gems Sensors range at EnvMart.
