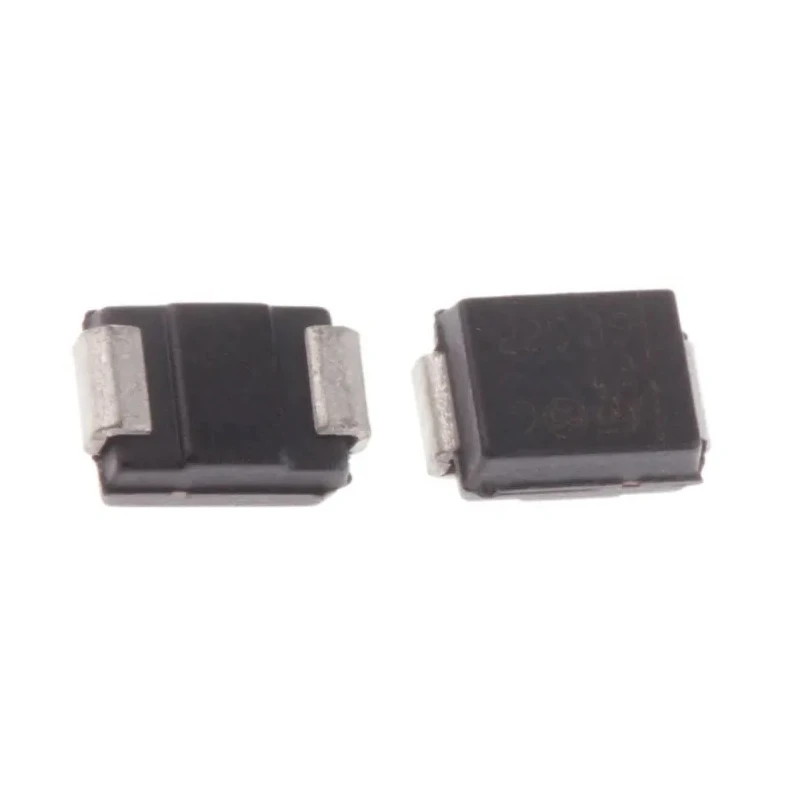

STMicroelectronics 1-Element Uni-Directional TVS Diode Surface Mount DO-214 Package 600W SM6T33A
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SM6T33A |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SM6T |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 59V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 31.4V |
| Maximum Reverse Stand-off Voltage Vwm | 28.2V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 68A |
| Maximum Reverse Leakage Current | 200nA |
Key Features
- Provides transient voltage suppression for electronic circuits.
- Uni-directional diode configuration optimized for voltage spike protection.
- Surface mount package type DO-214 allows efficient PCB integration.
- Clamping voltage of 59V ensures reliable surge voltage limiting.
- Operates between -55°C and 150°C for wide temperature applications.
- Peak pulse power dissipation rating of 600W supports high energy transients.
- 2-pin configuration simplifies circuit layout and connectivity.
- Low maximum reverse leakage current of 200nA enhances circuit performance.
Product Description
STMicroelectronics SM6T33A is a 1-element, uni-directional Transient Voltage Suppressor (TVS) diode designed to protect electronic circuits from voltage spikes and transient surges. It is housed in a DO-214 surface mount package, making it ideal for reliable and space-efficient PCB mounting.
This TVS diode features a peak pulse power dissipation of 600W and a clamping voltage of 59V, effectively limiting voltage surges to safe levels. Its uni-directional configuration ensures protection for circuits with a defined polarity. The diode supports operating temperatures from -55°C to 150°C, allowing use in demanding industrial and automotive environments.
Its small dimensions (4.6mm length, 3.95mm width, 2.45mm height) and 2-pin design facilitate easy integration into compact electronic designs. The low maximum reverse leakage current of 200nA ensures minimal impact on circuit efficiency during normal operation.
Applications include transient voltage suppression in power supplies, industrial control systems, automotive electronics, and other sensitive electronic components requiring surge protection.
Key Features:. Transient voltage suppression for protecting circuits from surges. Uni-directional, single diode configuration for polarized protection. Surface mount DO-214 package for compact PCB design. 600W peak pulse power dissipation rating.
Wide operating temperature range from -55°C to 150°C. Low leakage current to maintain circuit integrity. Compact size with precise mechanical dimensions.
The SM6T33A diode is a robust solution for protecting electronics in industrial, automotive, telecommunications, and power management applications. It ensures long-term device reliability by safeguarding against voltage transients.
Explore further TVS Diode options and semiconductor devices in our Electronics category to suit varied industrial and commercial EMI/ESD protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SM6T33A diode has a peak pulse power dissipation rating of 600W, which supports high energy transients effectively.
The clamping voltage of the SM6T33A is 59V, which helps to limit voltage surges to safe levels during operation.
This model has dimensions of 4.6mm in length, 3.95mm in width, and 2.45mm in height, making it compact for PCB integration.
It operates within a temperature range of -55°C to 150°C, allowing it to be used in various demanding environments.
The SM6T33A features a uni-directional diode configuration, providing protection for circuits with a defined polarity.
This diode contains a single element per chip, designed specifically for transient voltage suppression.
The maximum reverse leakage current for the SM6T33A is 200nA, which helps maintain circuit efficiency during normal operation.
It is housed in a DO-214 surface mount package, facilitating efficient and compact PCB integration.
The maximum reverse stand-off voltage for the SM6T33A is 28.2V, ensuring it can handle specific voltage levels safely.
This diode is suitable for applications requiring transient voltage suppression, such as power supplies, industrial control systems, and automotive electronics.
The test current for this model is 1mA, which is used to evaluate its performance during testing.
The maximum peak pulse current rating for the SM6T33A is 68A, indicating its capability to handle high surge currents.
