STMicroelectronics 1-Element Uni-Directional TVS Diode 1.5 kW 2-Pin SMC SM15T200A
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 7.15mm |
| Model | SM15T200A |
| Width | 6.25mm |
| Mount Type | Surface |
| Series | SM15T TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 353V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 190V |
| Maximum Reverse Stand-off Voltage Vwm | 171V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 28A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single diode configuration designed for surface mounting.
- Uni-directional direction type ensures efficient transient voltage suppression.
- Rated for minimum breakdown voltage of 190 V and maximum reverse stand-off voltage of 171 V.
- Clamping voltage of 353 V and peak pulse current up to 28 A.
- Operating temperature range from -55°C to 150°C for reliable performance.

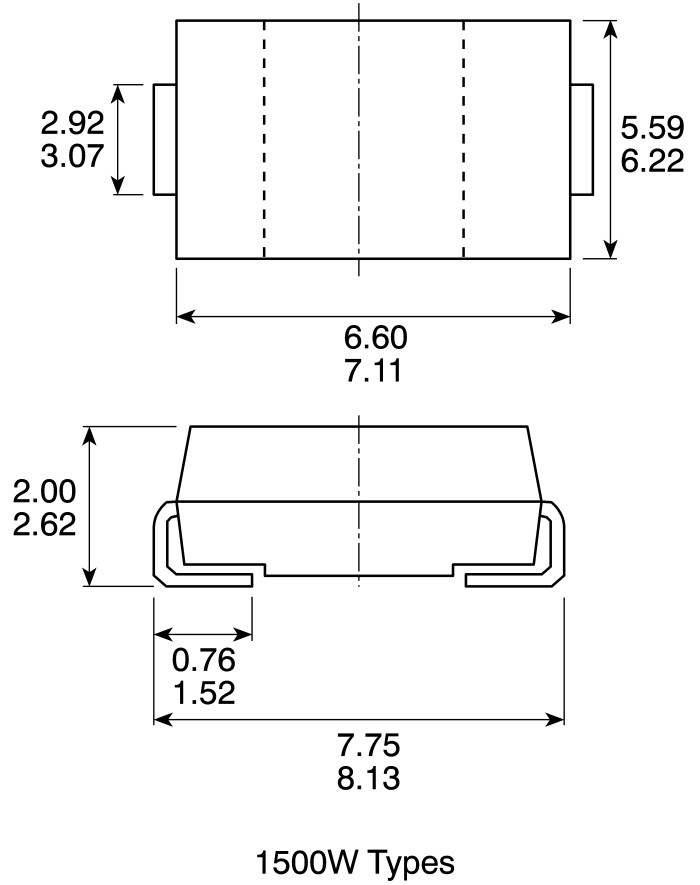

- Compact dimensions with length 7.15 mm, width 6.25 mm, height 2.45 mm.
- Low maximum reverse leakage current of 1 μA for energy efficiency.
- No automotive standard certification; conforms to SM15T series specifications.
Product Description
STMicroelectronics SM15T200A is a 1-Element Uni-Directional Transient Voltage Suppressor (TVS) diode providing 1.5 kW peak pulse power dissipation. Housed in a robust 2-pin SMC surface mount package, it offers excellent protection against voltage spikes and transients in electronic circuits.
This diode features a single diode configuration designed specifically for surface mounting applications. Its uni-directional nature allows efficient suppression of transient voltages, safeguarding sensitive components.
The device operates within a minimum breakdown voltage of 190 V and a maximum reverse stand-off voltage of 171 V, with a clamping voltage rated at 353 V. It can conduct peak pulse currents up to 28 A, making it suitable for transient protection in industrial, electronic, and power supply circuits.
Engineered for harsh environments, it withstands temperatures from -55°C to 150°C, ensuring high reliability over a wide operating range. The compact footprint (7.15 mm length × 6.25 mm width × 2.45 mm height) supports space-saving PCB designs.
The ST15T200A series is ideal for protecting electronics in industrial, laboratory, manufacturing, and commercial applications where transient voltage protection is critical. Its low maximum reverse leakage current (1 μA) enhances energy efficiency and device longevity.
Although it does not hold specific automotive certification, it complies with the SM15T series product standards, ensuring trusted performance in general-purpose transient voltage suppression.
Single diode configuration designed for surface mounting. Uni-directional direction type ensures efficient transient voltage suppression. Rated for minimum breakdown voltage of 190 V and maximum reverse stand-off voltage of 171 V.
Clamping voltage of 353 V and peak pulse current up to 28 A. Operating temperature range from -55°C to 150°C for reliable performance. Compact dimensions with length 7.15 mm, width 6.25 mm, height 2.45 mm. Low maximum reverse leakage current of 1 μA for energy efficiency.
No automotive standard certification; conforms to SM15T series specifications. Explore the broad range of TVS Diode products and semiconductor components at EnvMart for your industrial and electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SM15T200A has a peak pulse power dissipation of 1.5 kW.
The clamping voltage of this diode is rated at 353 V.
This model operates within a temperature range of -55°C to 150°C.
The dimensions of the SM15T200A are 7.15 mm in length, 6.25 mm in width, and 2.45 mm in height.
The maximum reverse stand-off voltage for the SM15T200A is 171 V.
It can conduct peak pulse currents up to 28 A.
This model is designed for surface mounting.
The diode configuration of the SM15T200A is a single element.
The maximum reverse leakage current is 1 μA.
The minimum breakdown voltage is rated at 190 V.
While it does not hold specific automotive certification, it conforms to the SM15T series specifications.
This diode is suitable for transient protection in industrial, electronic, and power supply circuits.
