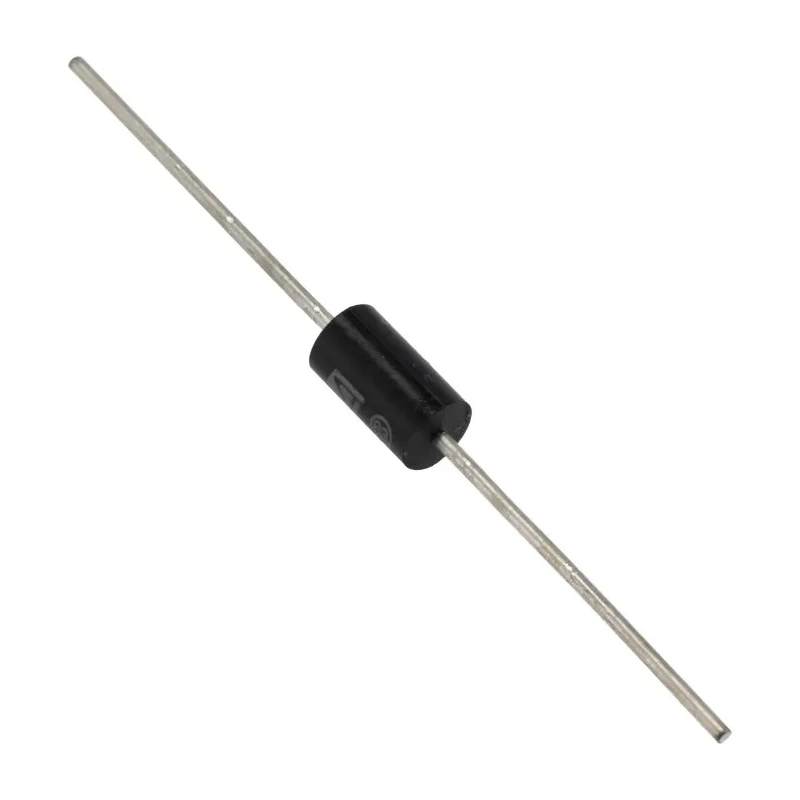

STMicroelectronics 1-Element Bi-Directional TVS Diode 1.5 kW, 2-Pin DO-201 1.5KE36CA
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE36CA |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 64.3V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 34.2V |
| Maximum Reverse Stand-off Voltage Vwm | 30.8V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 156A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- This diode features a single element with bi-directional configuration suitable for protecting circuits against voltage spikes.
- It has a minimum breakdown voltage (Vbr) of 34.2V and a maximum reverse stand-off voltage (Vwm) of 30.8V.
- Rated for a peak pulse power dissipation of 1.5 kW and maximum peak pulse current of 156A.
- Constructed in a through-hole DO-201 axial package with 2 pins for easy mounting.
- Operating temperature range from -65°C to 175°C provides reliable performance under extreme conditions.
- Clamping voltage is 64.3V, ensuring effective transient voltage suppression.
- Maximum reverse leakage current is a low 1μA, improving circuit stability.
- Compact dimensions include 9.5mm length and 5.3mm diameter.
Product Description
STMicroelectronics 1.5KE36CA is a 1-Element Bi-Directional TVS (Transient Voltage Suppressor) Diode with a peak pulse power dissipation of 1.5 kW, designed for robust protection of sensitive electronic components against voltage transients. This diode is supplied in a 2-pin DO-201 through-hole package, enabling straightforward mounting on circuit boards.
Featuring a single-element, bi-directional configuration, it offers effective clamping of surge voltages with a minimum breakdown voltage (Vbr) of 34.2V, maximum reverse stand-off voltage (Vwm) of 30.8V, and a clamping voltage (VC) of 64.3V. Its peak pulse current (Ippm) rating of 156A facilitates absorption of high transient currents to safeguard your devices.
The device operates reliably between extreme temperatures from -65°C to 175°C, making it suitable for demanding industrial environments and electronic systems requiring stable protection. Its low maximum reverse leakage current of 1μA ensures minimal impact on normal circuit operation.
With compact dimensions of 9.5mm in length and 5.3mm in diameter, this TVS Diode fits efficiently in tight spaces. It is widely applicable in power supply lines, industrial electronics, consumer devices, and other applications where transient voltage suppression is critical.
This diode offers single-element, bi-directional transient voltage suppression. DO-201 through-hole mounting package with 2 pins for mechanical and electrical connection. 1.5 kW peak pulse power dissipation for high surge protection capacity.
Wide operating temperature range from -65°C to 175°C ensures durability and reliability. Low leakage current of 1μA minimizes standby power loss. Compact axial design facilitates easy integration into circuit boards. Appropriate for industrial, power supply, and electronic applications requiring voltage spike protection.
Explore our comprehensive range of semiconductor protection devices on EnvMart for optimized electronic design and manufacturing efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode has a peak pulse power dissipation rating of 1.5 kW, providing robust protection against voltage transients.
The minimum breakdown voltage (Vbr) of this model is 34.2V, allowing it to effectively clamp voltage spikes.
The maximum reverse stand-off voltage (Vwm) is 30.8V, ensuring safety during normal operation.
The clamping voltage (VC) is 64.3V, which helps in limiting the voltage during transient events.
It can handle a maximum peak pulse current (Ippm) of 156A, making it suitable for high transient currents.
This diode operates reliably within a temperature range of -65°C to 175°C, accommodating extreme conditions.
The diode is housed in a DO-201 through-hole package, which facilitates easy mounting on circuit boards.
The dimensions of this diode are 9.5mm in length and 5.3mm in diameter, allowing for compact integration.
This model features a 2-pin configuration, suitable for through-hole mounting.
The maximum reverse leakage current is 1μA, which helps improve circuit stability during operation.
It utilizes a single-element, bi-directional configuration, providing effective voltage spike protection.
This diode is applicable in power supply lines, industrial electronics, and consumer devices where transient voltage suppression is critical.
