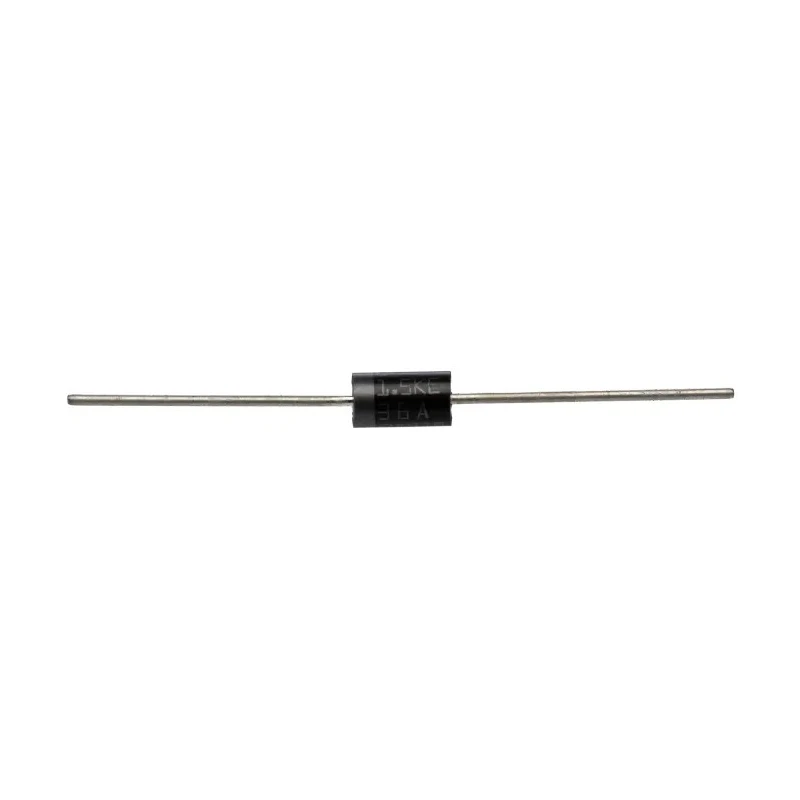

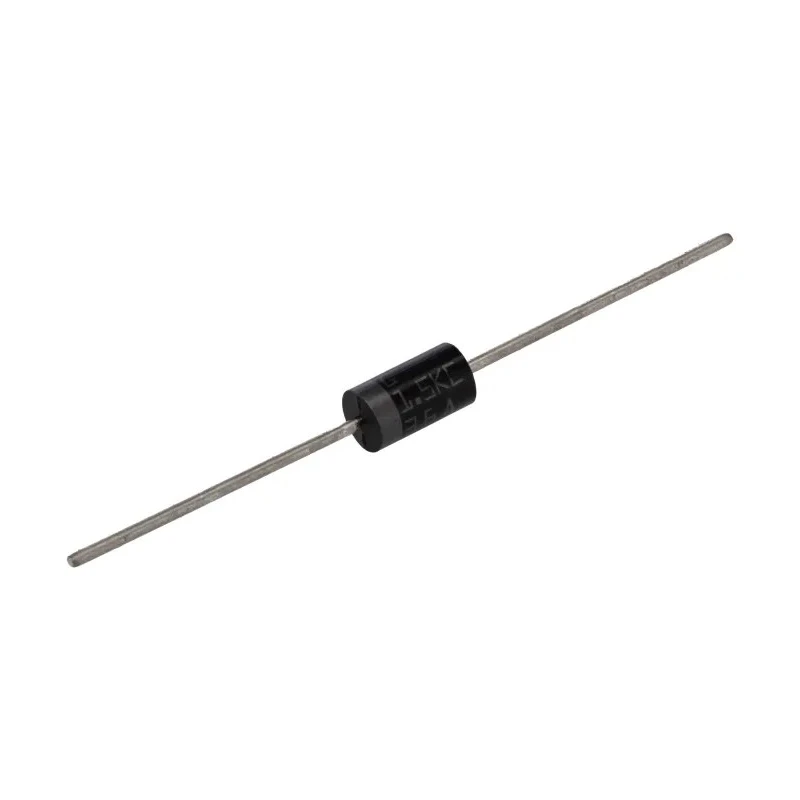

STMicroelectronics 1-Element Uni-Directional TVS Diode 1.5 kW 2-Pin DO-201 1.5KE36A
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE36A |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 64.3V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 34.2V |
| Maximum Reverse Stand-off Voltage Vwm | 30.8V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 156A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single diode configuration for reliable protection.
- Uni-directional direction type for specific transient voltage events.
- Through hole mount type with 2-pin DO-201 package.
- Minimum breakdown voltage of 34.2 V suitable for controlled clamping.
- Clamping voltage rated at 64.3 V for precise suppression.
- Operating temperature range from -65°C to 175°C ensures durability in harsh environments.
- Maximum peak pulse current of 156 A for high surge handling capability.
- Compact dimensions with length 9.5 mm and diameter 5.3 mm.
Product Description
STMicroelectronics 1.5KE36A is a high-performance 1-element uni-directional Transient Voltage Suppressor (TVS) diode rated for 1.5 kW peak pulse power dissipation. This diode is engineered to protect sensitive electronic components from voltage spikes and transient surges typically encountered in power and signal lines.
The device features a single diode configuration in a 2-pin DO-201 through-hole package, making it compatible with a variety of industrial and commercial PCB designs. It provides a minimum breakdown voltage of 34.2 V, with a maximum reverse stand-off voltage of 30.8 V, ensuring effective clamp voltage of 64.3 V during transient events.
Operating over a wide temperature range from -65°C to 175°C, the 1.5KE36A maintains reliable suppression performance in demanding environments including industrial, automotive, and HVAC applications. It has a maximum peak pulse current rating of 156 A, capable of absorbing high transient energies.
The device’s compact physical dimensions (length 9.5 mm, diameter 5.3 mm) and low maximum reverse leakage current (1 μA) improve system efficiency and facilitate easy integration. It is RoHS compliant and intended for through-hole mounting.
Commonly used in industrial electronics, power supply protection, and transient voltage suppression applications, this TVS Diode helps enhance system robustness and longevity by preventing damage due to voltage spikes and electrostatic discharges.
Single diode configuration for reliable protection. Uni-directional transient voltage suppression improves circuit safety. Through hole mounting for compatibility with standard PCB layouts. High peak pulse power handling of 1.5 kW to manage surges.
Wide temperature tolerance from -65°C to 175°C for industrial applications. Compact DO-201 axial package eases installation. Low leakage current minimizes power loss in circuits. Robust mechanical and electrical characteristics suitable for harsh environments.
Essential for safeguarding electronic and semiconductor components. Supports long-term reliability in transient-prone electrical systems. Explore more high-quality semiconductor components in the EnvMart Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is rated at 1.5 kW, allowing it to handle significant transient energy.
The clamping voltage for the 1.5KE36A is rated at 64.3 V, ensuring effective suppression during transient events.
This diode operates over a wide temperature range from -65°C to 175°C, making it suitable for harsh environments.
The minimum breakdown voltage of this model is 34.2 V, which is crucial for effective voltage spike protection.
This model supports through-hole mounting, making it compatible with standard PCB layouts.
The physical dimensions of this diode are a length of 9.5 mm and a diameter of 5.3 mm.
The maximum peak pulse current rating for this diode is 156 A, allowing it to handle high surge conditions.
The maximum reverse leakage current for this model is 1 μA, which helps improve system efficiency.
The 1.5KE36A features a single diode configuration, providing reliable transient voltage suppression.
The maximum reverse stand-off voltage for the 1.5KE36A is 30.8 V, ensuring effective operation under specified conditions.
This TVS diode is commonly used in industrial electronics, power supply protection, and transient voltage suppression applications.
Yes, the 1.5KE36A is RoHS compliant, ensuring it meets environmental regulations for hazardous substances.
