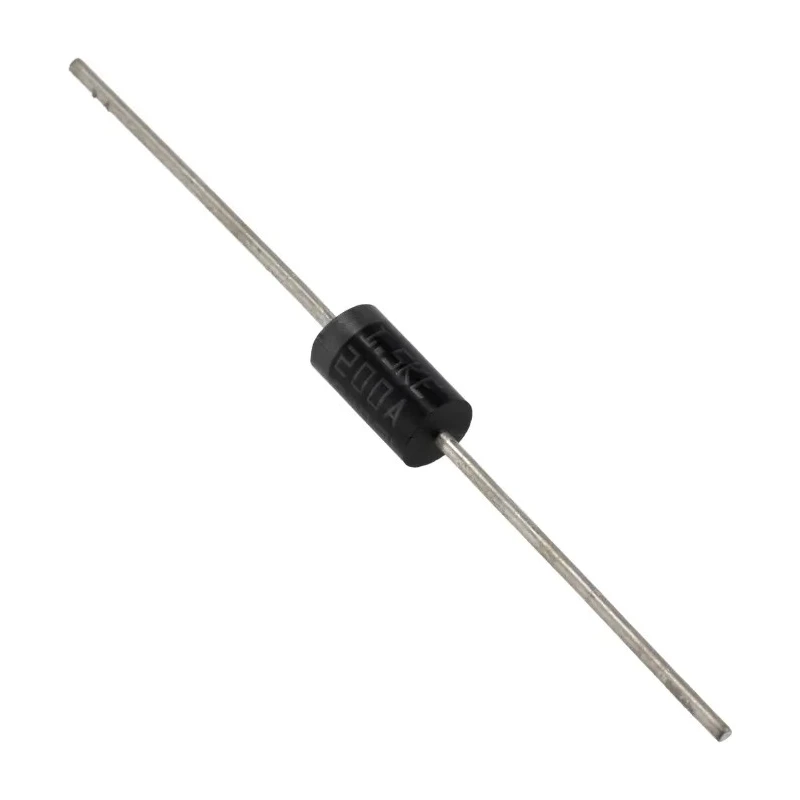

STMicroelectronics 1-Element Uni-Directional TVS Diode 1.5 kW, 2-Pin DO-201 1.5KE200A
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE200A |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 353V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 190V |
| Maximum Reverse Stand-off Voltage Vwm | 171V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 28A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- This single-element diode offers reliable transient voltage protection in electronic circuits.
- Its through-hole mount with a DO-201 package ensures easy PCB integration.
- Features a minimum breakdown voltage of 190 V and maximum reverse stand-off voltage of 171 V.
- Supports a peak pulse current up to 28 A and has a clamping voltage of 353 V.
- Rated for operation from -65°C to 175°C, suitable for diverse industrial environments.
- Offers low maximum reverse leakage current of 1 μA for energy efficiency.
- Compact dimensions of 9.5 mm length and 5.3 mm diameter facilitate space-saving designs.
- Non-automotive standard product built for robust power protection applications.
Product Description
STMicroelectronics 1.5KE200A is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode providing up to 1.5 kW of peak pulse power dissipation suitable for protection of sensitive electronic components and circuits against voltage spikes.
This diode features a single diode configuration with through-hole mounting and a DO-201 axial package type designed for easy installation on PCB assemblies. It offers a minimum breakdown voltage of 190 V and a maximum reverse stand-off voltage of 171 V, with a clamping voltage rating of 353 V to effectively clamp surges.
The diode supports a peak pulse current of 28 A and operates reliably within a temperature range of -65°C to 175°C ensuring durability under harsh industrial and commercial conditions.
Its compact dimensions of 9.5 mm length, 5.3 mm diameter, and width permit its use in high-density electronic assemblies while providing low leakage current of 1 µA for energy efficiency.
This uni-directional TVS diode from STMicroelectronics is ideal for industrial, electronic component protection, laboratory, manufacturing, and HVAC system applications where transient voltage suppression is critical.
This diode provides transient voltage suppression with 1.5 kW power handling capability. Designed for through-hole mounting with DO-201 axial package. Minimum breakdown voltage of 190 V and maximum reverse stand-off voltage of 171 V.
Peak pulse current up to 28 A and clamping voltage of 353 V. Operating temperature range from -65°C to 175°C. Low maximum reverse leakage current of 1 μA. Compact package size optimized for space constrained applications.
Discover more professional electronic components including TVS Diodes and discrete semiconductors by browsing the Semiconductor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STMicroelectronics 1.5KE200A TVS diode has a peak pulse power dissipation of 1.5 kW.
This diode features a minimum breakdown voltage of 190 V.
The maximum reverse stand-off voltage for the 1.5KE200A is 171 V.
The clamping voltage rating of this model is 353 V.
It supports a peak pulse current of up to 28 A.
This diode operates reliably within a temperature range of -65°C to 175°C.
The diode has compact dimensions of 9.5 mm in length and 5.3 mm in diameter.
This model is designed for through-hole mounting with a DO-201 package type.
The maximum reverse leakage current is 1 μA.
The 1.5KE200A has a single diode configuration, meaning it has 1 element per chip.
This diode features a pin count of 2.
This diode is suitable for protecting sensitive electronic components and circuits against voltage spikes in industrial and commercial applications.
