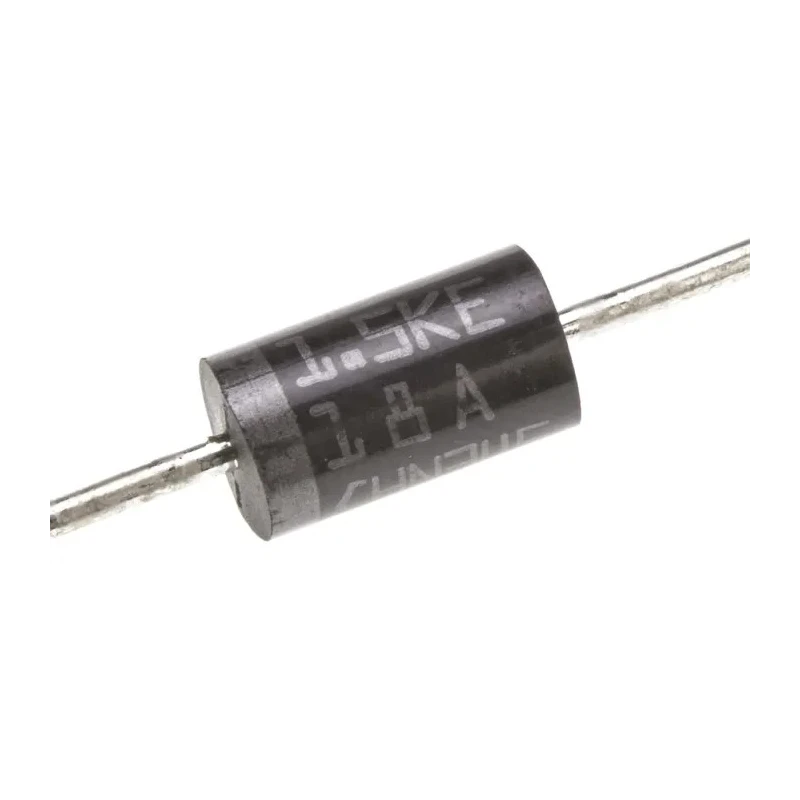

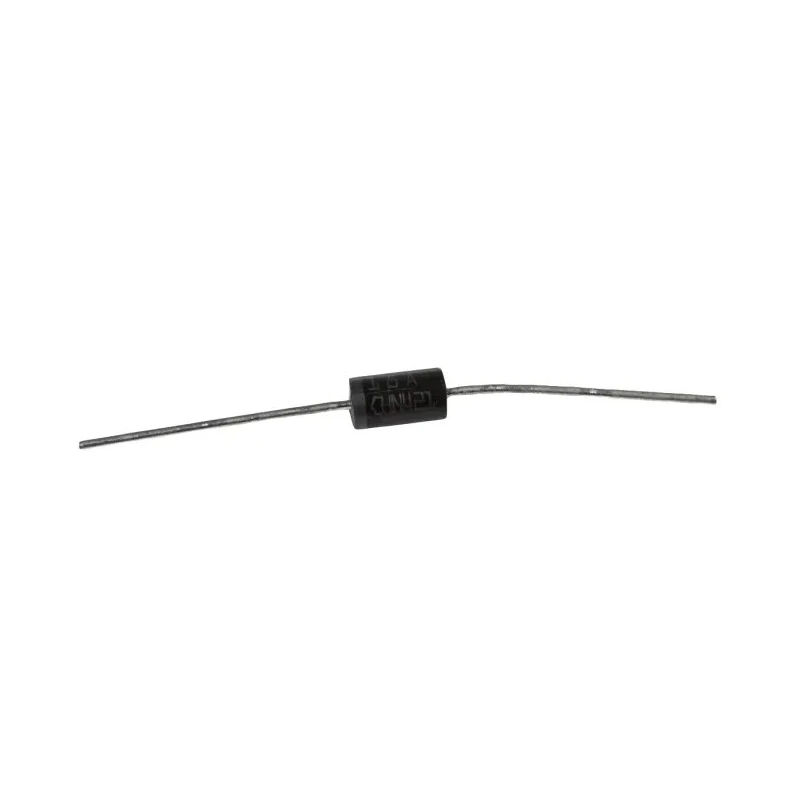

STMicroelectronics Uni-Directional 1-Element TVS Diode 1.5 kW Peak Pulse Power 2-Pin DO-201 1.5KE18A
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE18A |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 32.5V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 17.1V |
| Maximum Reverse Stand-off Voltage Vwm | 15.3V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 308A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Provides high transient voltage suppression with 1.5 kW peak pulse power dissipation.
- Uni-directional configuration suitable for protecting sensitive electronics.
- Through hole mount type in DO-201 axial package for easy PCB integration.
- Wide operating temperature range from -65°C to 175°C.
- Minimum breakdown voltage of 17.1 V and maximum reverse stand-off voltage of 15.3 V.
- Maximum peak pulse current capacity of 308 A for robust transient spike handling.
- Low maximum reverse leakage current of 1 μA for efficient operation.
- Compact physical dimensions approximately 9.5 mm length and 5.3 mm diameter.
Product Description
STMicroelectronics 1.5KE18A is a uni-directional Transient Voltage Suppressor (TVS) diode engineered to provide robust protection to electronic circuits against transient voltage spikes. It offers a peak pulse power dissipation rating of 1.5 kW and features a single element diode configuration housed in a compact 2-pin axial DO-201 package.
This diode is designed for through-hole mounting, simplifying integration into printed circuit boards (PCBs) in industrial, electronic, and electrical applications. The device operates efficiently across a broad temperature range from -65°C to 175°C, suitable for rugged environments.
With a minimum breakdown voltage of 17.1 V and maximum reverse stand-off voltage of 15.3 V, it provides reliable voltage threshold protection. The diode can handle transient peak currents up to 308 A, affording strong spike suppression. Its low maximum reverse leakage current of 1 μA ensures minimal power loss during normal operation.
The diode's clamping voltage is approximately 32.5 V, limiting voltage surges that could damage sensitive components. Its dimension specs include 9.5 mm length and 5.3 mm diameter, making it suitable for compact electronic assemblies.
This TVS diode is ideal for industrial, manufacturing, power supply protection, and electronic system safeguarding applications. It ensures enhanced circuit reliability by rapidly clamping excessive voltages caused by electrostatic discharge (ESD) or electrical transient events.
Provides 1.5 kW peak pulse power transient voltage suppression. Uni-directional single element diode configuration. Through-hole mounting in DO-201 axial package. Broad operating temperature range of -65°C to +175°C. Low leakage current of 1 μA maximizes efficiency.
Compact size: 9.5 mm length and 5.3 mm diameter. Clamping voltage of 32.5 V for voltage spike limitation. Rated peak pulse current of 308 A ensures strong surge handling. Widely used in electronic manufacturing and industrial power protection systems.
Explore the full range of TVS Diodes and semiconductor components at EnvMart for reliable transient voltage suppression and circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this TVS diode is 1.5 kW.
The clamping voltage of the 1.5KE18A is approximately 32.5 V.
The maximum reverse stand-off voltage for this model is 15.3 V.
The minimum breakdown voltage of the 1.5KE18A is 17.1 V.
This TVS diode can handle a maximum peak pulse current of 308 A.
The dimensions of this diode are approximately 9.5 mm in length and 5.3 mm in diameter.
The operating temperature range for the 1.5KE18A is from -65°C to 175°C.
This diode is designed for through-hole mounting.
This diode features a single element configuration.
The maximum reverse leakage current for this model is 1 μA.
The package type of the 1.5KE18A is DO-201.
This diode is manufactured in India.
