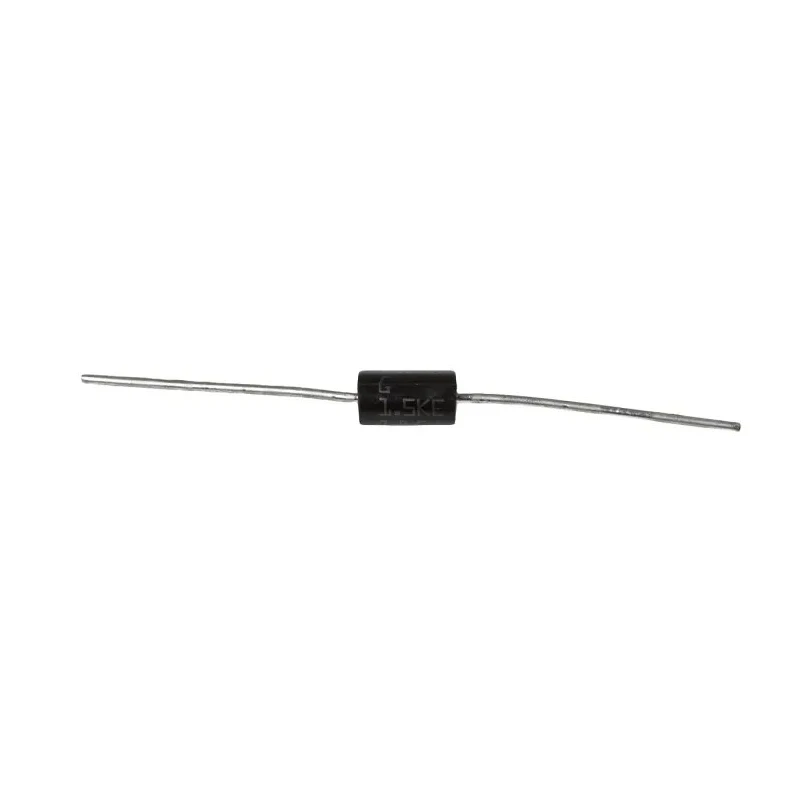

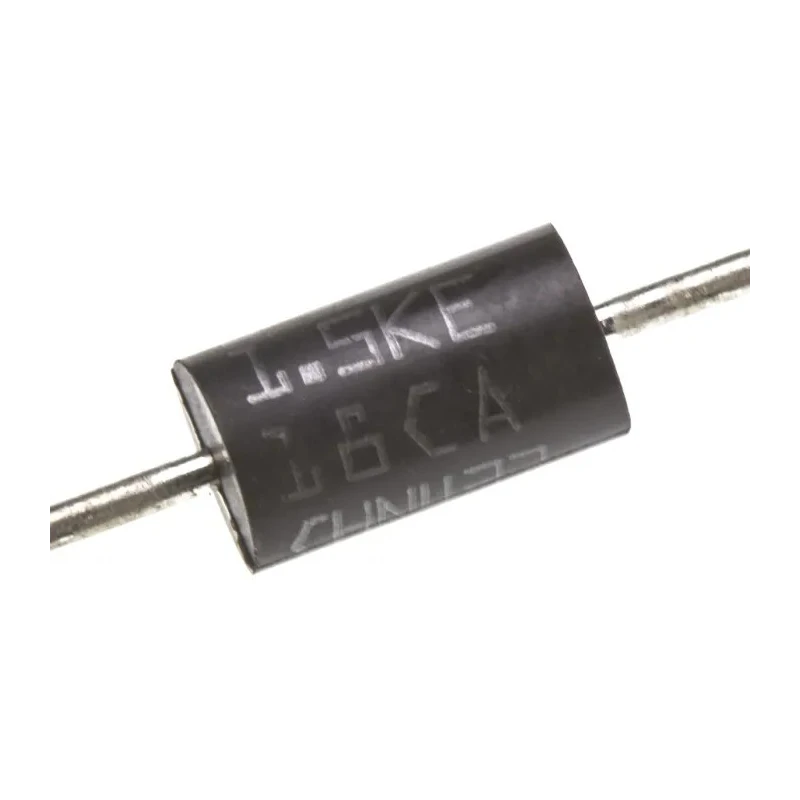

STMicroelectronics 1-Element Bi-Directional TVS Diode, 1.5 kW Peak Pulse Power, 2-Pin DO-201 Package 1.5KE18CA
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE18CA |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 32.5V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 17.1V |
| Maximum Reverse Stand-off Voltage Vwm | 15.3V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 308A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single diode configuration provides effective bidirectional voltage clamping.
- Peak pulse power dissipation of 1.5 kilowatts ensures high surge protection.
- Through-hole mount with compact DO-201 axial package for easy PCB integration.
- Minimum breakdown voltage of 17.1 volts with maximum reverse leakage current of 1 microampere.
- Wide operating temperature range from -65°C to 175°C for industrial and automotive applications.
- Clamping voltage of 32.5 volts safeguards sensitive electronic components.
- Handles peak pulse current up to 308 amperes for robust transient suppression.
- Axial package dimensions approximately 9.5 mm length and 5.3 mm diameter ensure space-efficient design.
Product Description
STMicroelectronics 1.5KE18CA is a 1-Element Bi-Directional Transient Voltage Suppressor (TVS) diode delivering 1.5 kW peak pulse power in a 2-pin DO-201 through-hole package. It is engineered to protect sensitive electronics against voltage surges and transient events in industrial, automotive, and power electronics applications.
This single diode configuration offers effective bidirectional voltage clamping with a minimum breakdown voltage of 17.1 V and a clamping voltage of 32.5 V, ensuring reliable suppression of transient voltage spikes. The device supports a peak pulse current of up to 308 A and maintains low leakage current (1 μA) to minimize power loss.
The axial DO-201 package measures approximately 9.5 mm in length with a 5.3 mm diameter, making it suitable for through-hole mounting on printed circuit boards. Operational temperature range extends from -65°C up to 175°C, allowing performance stability under extreme environmental conditions.
While this TVS diode does not include ESD protection or meet automotive standards, its robust power dissipation and compact size make it ideal for use in electronic power supplies, connectors, industrial equipment, laboratory instrumentation, HVAC systems, and manufacturing machinery requiring transient voltage protection.
Single diode, bi-directional TVS design for transient voltage suppression. 1.5 kW peak pulse power dissipation capability. Through-hole axial mounting in DO-201 package. 17.1 V minimum breakdown voltage with 32.5 V clamping voltage.
Low leakage current and high peak pulse current ratings. Wide operating temperature range from -65°C to 175°C. Compact dimensions suitable for dense PCB layouts. Applications include industrial, automotive, power connectors, and electronic components protection.
This product enables reliable transient voltage suppression to protect semiconductor devices and ensure operational durability of critical systems. It is a vital component in power and connector assemblies dealing with voltage spikes and surges.
Explore the STMicroelectronics TVS Diode category on EnvMart for more advanced transient voltage suppression solutions.
