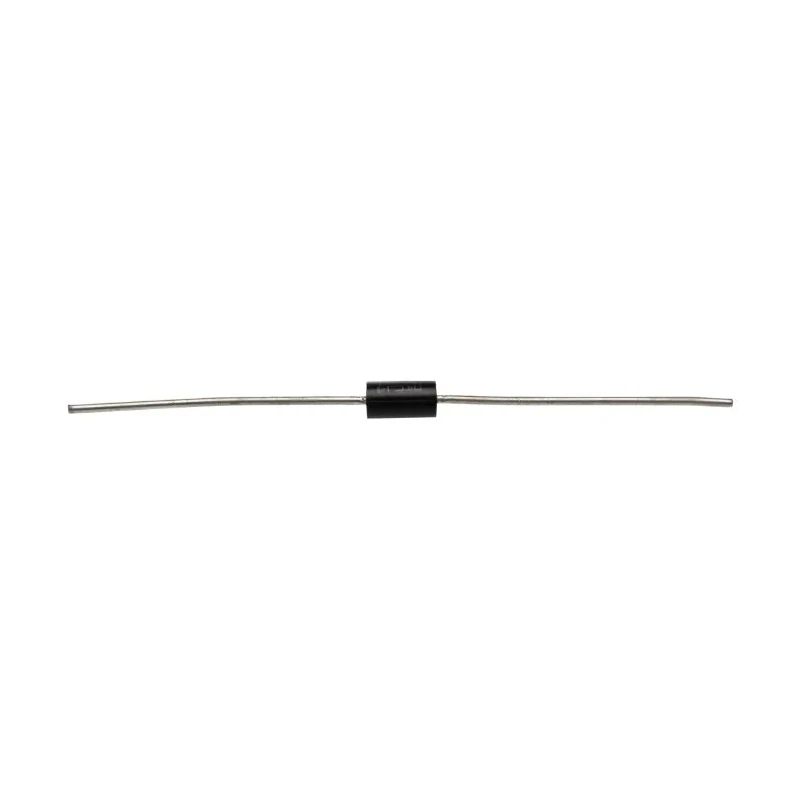

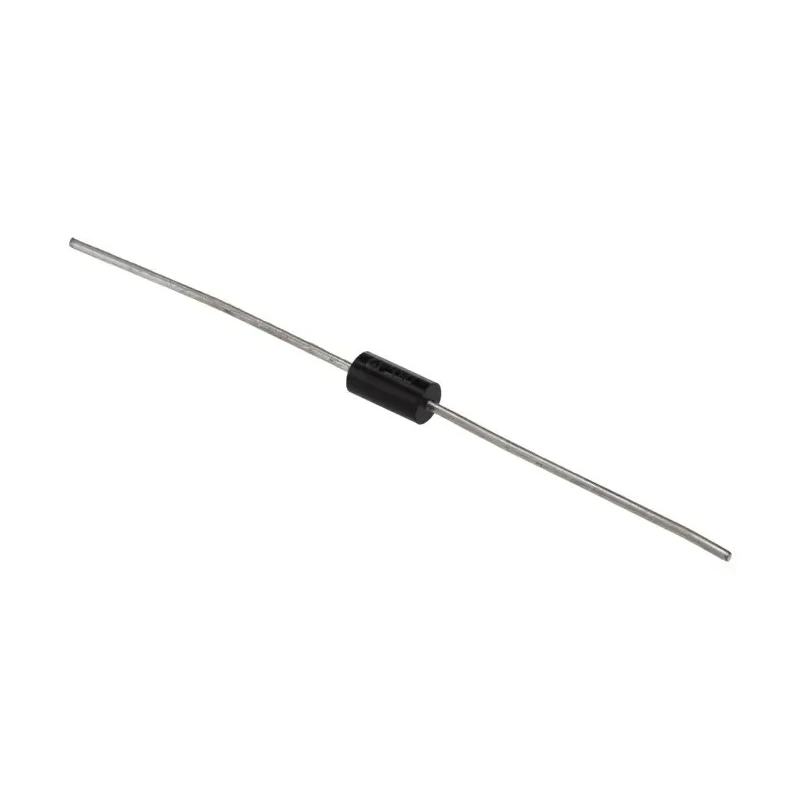

STMicroelectronics 1-Element Bi-Directional TVS Diode 600W Peak Pulse Power, 2-Pin DO-15 Package P6KE6V8CA
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.53mm |
| Brand | STMicroelectronics |
| Height | 3.53mm |
| Length | 6.75mm |
| Model | P6KE6V8CA |
| Width | 3.53mm |
| Mount Type | Through Hole |
| Series | P6KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 13.4V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6.45V |
| Maximum Reverse Stand-off Voltage Vwm | 5.8V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 298A |
| Maximum Reverse Leakage Current | 1mA |
Key Features
- Single diode configuration ensures effective transient voltage suppression.
- Bi-directional direction type protects circuits from both positive and negative voltage spikes.
- Minimum breakdown voltage of 6.45 volts for precise voltage protection.
- Maximum reverse stand-off voltage is 5.8 volts, suitable for safeguarding sensitive electronics.
- Peak pulse power dissipation rating of 600 watts enables robust surge handling.
- Clamping voltage at 13.4 volts to prevent voltage spikes from damaging components.
- Operates reliably between -65°C and 175°C, suitable for harsh environments.
- Compact physical size with 6.75 mm length and 3.53 mm diameter for easy PCB integration.
Product Description
STMicroelectronics P6KE6V8CA is a 1-element bi-directional TVS diode designed to protect electronic circuits from transient voltage spikes and surges. With a peak pulse power dissipation of 600W and a compact 2-pin DO-15 through-hole package, it offers an effective and reliable solution for circuit protection in a variety of applications.
This TVS diode features a single diode configuration in a bi-directional arrangement, capable of clamping transient voltages with a clamping voltage of 13.4 volts, ensuring sensitive components are safeguarded against damage. Its minimum breakdown voltage is 6.45 volts with a maximum reverse stand-off voltage of 5.8 volts.
The diode supports a wide operating temperature range from -65°C to 175°C, enabling it to perform reliably in demanding industrial or commercial electrical environments. Its compact size (6.75 mm length and 3.53 mm diameter) facilitates easy integration onto printed circuit boards.
Key electrical parameters include a maximum peak pulse current rating of 298 amperes and a test current of 10 milliamperes, highlighting its capability to handle sudden voltage transients effectively. The 2-pin through-hole mount style ensures secure mechanical and electrical connections.
This product is suitable for applications in power supplies, telecommunications, industrial controls, automotive electronics, and other sectors requiring robust transient voltage suppression.
Single diode configuration ensures effective transient voltage suppression. Bi-directional direction type protects circuits from both positive and negative voltage spikes. Minimum breakdown voltage of 6.45 volts for precise voltage protection.
Maximum reverse stand-off voltage of 5.8 volts safeguards sensitive electronics. 600W peak pulse power dissipation rating enables robust surge handling. Clamping voltage at 13.4 volts prevents voltage spikes from damaging components.
Operating temperature range from -65°C to 175°C for harsh environments. Compact 2-pin DO-15 package for through-hole mounting on PCBs. Maximum peak pulse current of 298 amperes ensures strong transient suppression. Test current rating of 10 mA facilitates validation of diode function.
Explore more reliable semiconductor solutions and TVS Diode products in our Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of the P6KE6V8CA is 600 watts, enabling it to handle robust surge events effectively.
The clamping voltage for this diode is 13.4 volts, which helps prevent voltage spikes from damaging sensitive components.
The minimum breakdown voltage of this TVS diode is 6.45 volts, providing precise voltage protection for electronic circuits.
The maximum reverse stand-off voltage is 5.8 volts, which safeguards sensitive electronics from overvoltage conditions.
This model operates reliably between -65°C and 175°C, making it suitable for harsh environmental conditions.
The maximum peak pulse current rating for the P6KE6V8CA is 298 amperes, indicating its capability to handle sudden voltage transients effectively.
The diode features a through-hole mount style, ensuring secure mechanical and electrical connections on printed circuit boards.
This diode has a length of 6.75 mm and a diameter of 3.53 mm, allowing for easy integration onto PCBs.
The P6KE6V8CA has a single diode configuration, designed for effective transient voltage suppression.
The test current rating for this diode is 10 milliamperes, which facilitates the validation of its function during testing.
This TVS diode is suitable for applications in power supplies, telecommunications, industrial controls, and automotive electronics, among others.
The P6KE6V8CA is manufactured in India.
