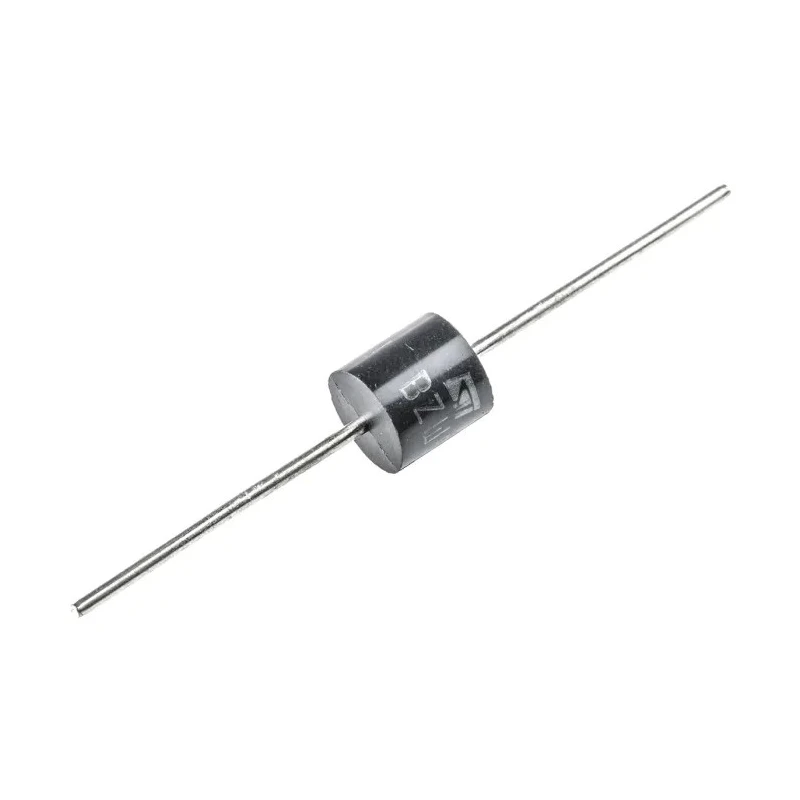

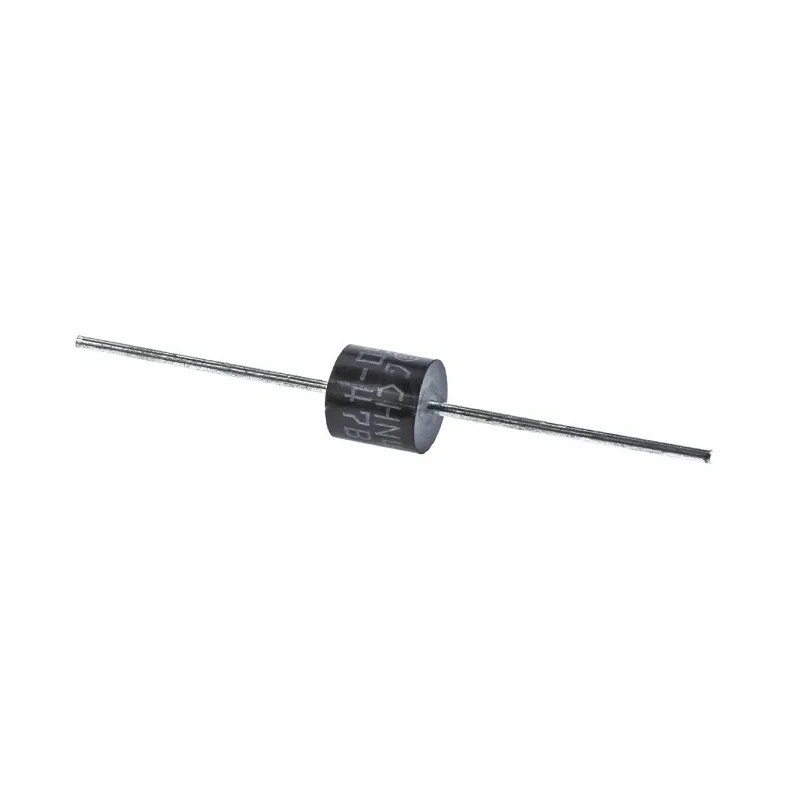

STMicroelectronics 1-Element Bi-Directional TVS Diode 5 kW 2-Pin R-6 BZW50-47B
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.1mm |
| Brand | STMicroelectronics |
| Height | 9.1mm |
| Length | 9.1mm |
| Model | BZW50-47B |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | BZW50 |
| Maximum Operating Temperature | 175°C |
| Package Type | R-6 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 108V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 52V |
| Maximum Reverse Stand-off Voltage Vwm | 47V |
| Peak Pulse Power Dissipation Pppm | 5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 556A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- This diode has a bi-directional direction type suited for protecting circuits from voltage spikes.
- It features a single diode configuration ensuring effective protection.
- The peak pulse power dissipation rating is 5 kW for high reliability.
- Mounted through hole in an R-6 package with two pins facilitates installation.
- Operating temperature ranges from -65°C to 175°C for extreme environments.
- The diode has a minimum breakdown voltage of 52 V and a maximum reverse stand-off voltage of 47 V.
- Clamping voltage is 108 V to safely shunt unwanted voltage peaks.
- It supports a maximum peak pulse current of 556 A and a test current of 1 mA.
Product Description
STMicroelectronics BZW50-47B 1-Element Bi-Directional TVS Diode with 5 kW peak pulse power is engineered to protect sensitive electronic circuits against transient voltage spikes and surges. It is a single-element device configured for bi-directional protection, suitable for sensitive electronic component safeguarding in various industrial and commercial applications.
This device features an R-6 through-hole package with two pins, making it easy to mount securely on printed circuit boards. With a minimum breakdown voltage of 52 V and a maximum reverse stand-off voltage of 47 V, it ensures robust voltage suppression performance.
The diode has a clamping voltage of 108 V, effectively clamping peak transient voltages to prevent damage to downstream components. It is capable of dissipating peak pulse power of 5 kW and enduring peak pulse currents up to 556 A, making it suitable for high energy transient scenarios.
Operating temperature ranges from -65°C to 175°C, allowing use in harsh environments such as industrial control equipment, automotive electronics, power supplies, and telecommunications.
The compact physical size of 9.1 mm in length, width, height, and diameter ensures easy integration into compact PCB layouts without compromising performance. The maximum reverse leakage current of 5 μA guarantees energy efficiency and low standby power loss.
This diode provides effective transient voltage suppression in industrial and commercial electronic circuits. Bi-directional configuration protects against voltage spikes from both polarities. High power handling capability (5 kW) supports heavy transient energy dissipation.
Wide operating temperature range ensures reliable function under extreme conditions. The through-hole R-6 package enables easy PCB mounting and soldering. Compact size allows space-efficient installations in devices and equipment.
STMicroelectronics is renowned for high-quality semiconductor components widely used in automotive, telecommunications, industrial automation, and power management sectors. This diode is ideal for engineers and technicians looking to enhance circuit protection against transient surges.
Explore more semiconductor components and TVS Diodes in EnvMart’s extensive catalog to find the perfect solution for your transient voltage suppression needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of this diode is 5 kW, which allows it to handle high energy transient scenarios effectively.
This model operates within a temperature range of -65°C to 175°C, making it suitable for extreme environments.
The clamping voltage of the BZW50-47B is 108 V, which helps to safely shunt unwanted voltage peaks.
The R-6 package of this diode has two pins, facilitating easy mounting on printed circuit boards.
The maximum reverse stand-off voltage for this diode is 47 V, ensuring effective voltage protection.
The minimum breakdown voltage of this diode is 52 V, which is critical for its protective function.
This diode can handle a maximum peak pulse current of 556 A, allowing it to effectively manage high transient currents.
The physical dimensions of the BZW50-47B are 9.1 mm in length, width, height, and diameter, enabling compact installations.
This model features a single diode configuration that provides bi-directional protection against voltage spikes.
The maximum reverse leakage current for this diode is 5 μA, contributing to its energy efficiency.
This diode uses a through-hole mounting type, making it suitable for secure installation on PCBs.
This diode is suitable for use in industrial control equipment, automotive electronics, power supplies, and telecommunications to protect against transient voltage spikes.
