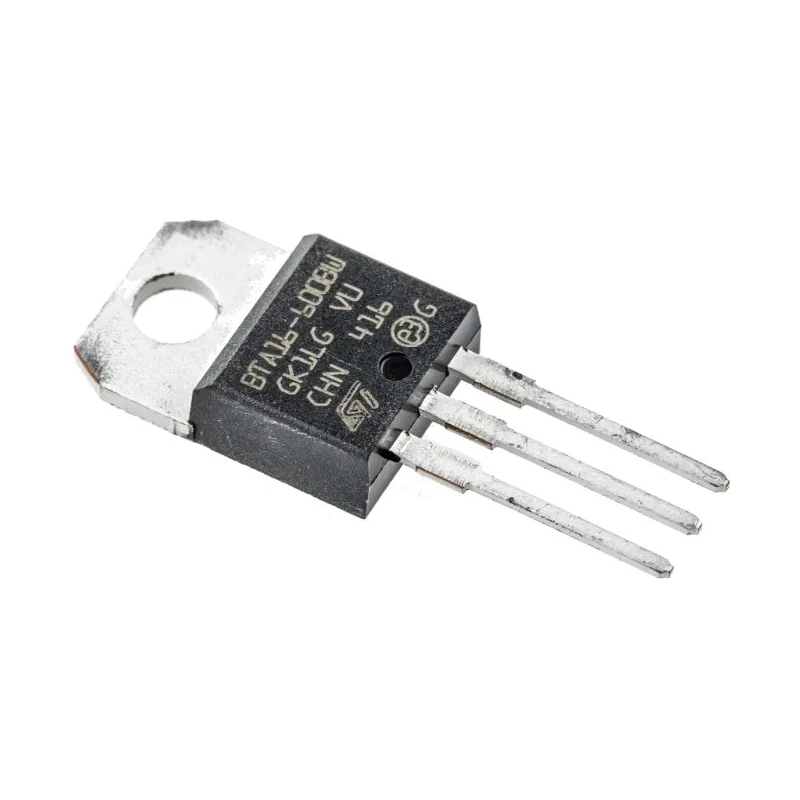

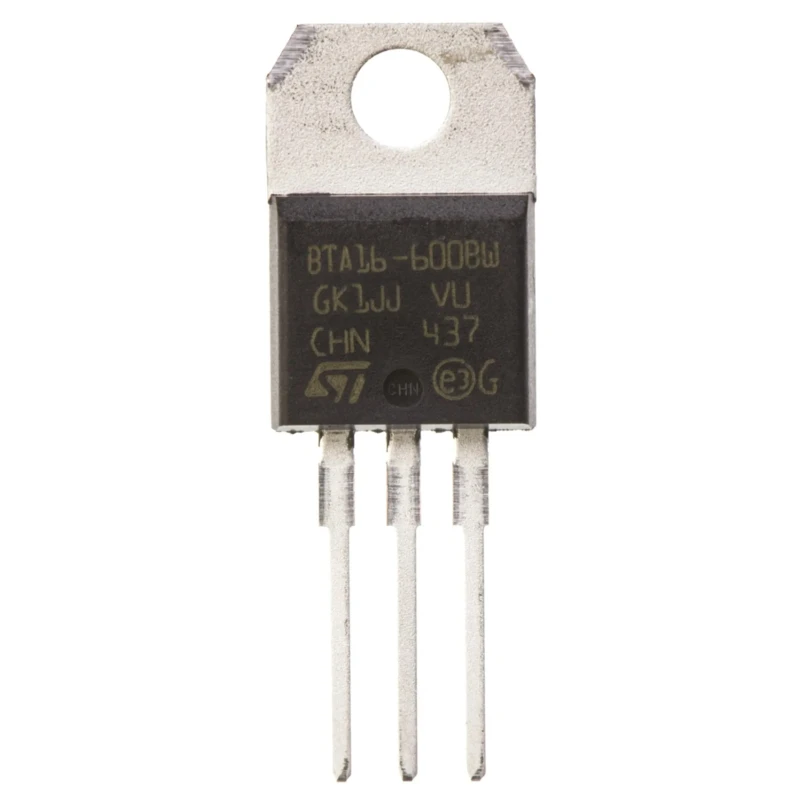

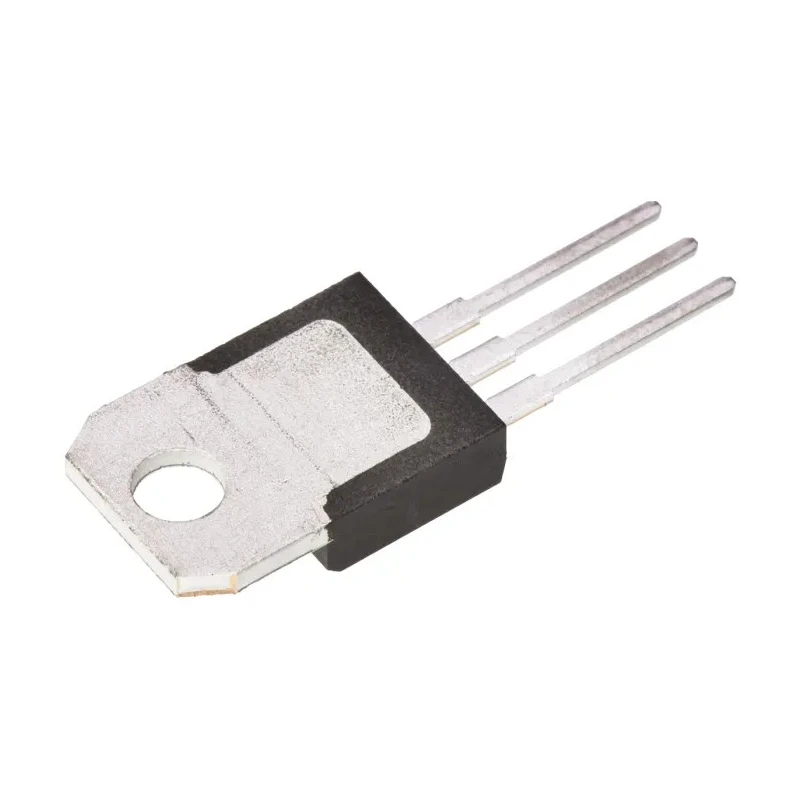

STMicroelectronics Through Hole 3-Pin TRIAC 16A 600V Gate Trigger 1.3V BTA16-600BWRG

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Through Hole 3-Pin TRIAC 16A 600V Gate Trigger 1.3V BTA16-600BWRG

Name: STMicroelectronics Through Hole 3-Pin TRIAC 16A 600V Gate Trigger 1.3V BTA16-600BWRG
Brand: STMicroelectronics
SKU: 189938
Price: 1.25 USD
Availability: InStock



Category TRIAC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	9.3mm
Length	10.4mm
Model	BTA16-600BWRG
Mount Type	Through Hole
Configuration	Single
Maximum Operating Temperature	125°C
Package Type	TO-220
Minimum Operating Temperature	-40°C
Pin Count	3
Rated Average On-State Current Irms	16A
Repetitive Peak Reverse Voltage VDRM	600V
Surge Current Rating	168A
Maximum Gate Trigger Current Igt	50mA
Maximum Holding Current Ih	50mA
Maximum Gate Trigger Voltage Vgt	1.3V
Peak On-State Voltage	1.55V
Repetitive Peak Off-State Current	5μA
Peak Gate Power Dissipation	1W

Key Features

Rated average on-state current of 16 amps for medium power applications.
Package type is TO-220 suitable for through hole mounting.
Maximum repetitive peak reverse voltage of 600 volts ensures reliable protection.
Maximum gate trigger current of 50 mA and gate trigger voltage of 1.3 volts.
Surge current rating of 168 amps provides robustness against transient spikes.
Operating temperature range from -40°C to 125°C supports industrial environments.
Peak on-state voltage drop is low at 1.55 volts for efficient operation.
Compact size with height 9.3 mm and length 10.4 mm for space-saving designs.

Product Description

STMicroelectronics BTA16-600BWRG is a through hole mount, 3-pin TRIAC semiconductor designed for switching and phase control applications in industrial and consumer electronics.

This TRIAC is rated for an average on-state current of 16 amps and can withstand a repetitive peak reverse voltage of up to 600 volts, suitable for AC power control and motor speed regulation.

It features a gate trigger voltage of 1.3 volts and maximum gate trigger current of 50 mA, ensuring reliable switching performance with low control input. The device has a surge current rating of 168 amps, allowing it to handle transient overloads and protect circuits during switching events.

The packaging in a TO-220 format supports through hole mounting and efficient heat dissipation, making it ideal for industrial power modules and HVAC systems. Operating temperature ranges from -40°C to 125°C allow use in harsh environmental conditions.

Rated average on-state current of 16A suitable for power control circuits. TO-220 package with through hole mount for easy PCB integration. Peak repetitive reverse voltage of 600V for AC line voltages. Low gate trigger voltage of 1.3V reduces driving power requirements.

Surge current rating of 168A enhances device robustness. Wide operating temperature range from -40°C to 125°C. Small form factor with 9.3 mm height and 10.4 mm length dimensions. Low off-state leakage current reduces power loss.

This TRIAC is widely used in industrial automation, lighting control, motor speed regulation, and power switching applications requiring reliable and efficient semiconductor solutions.
