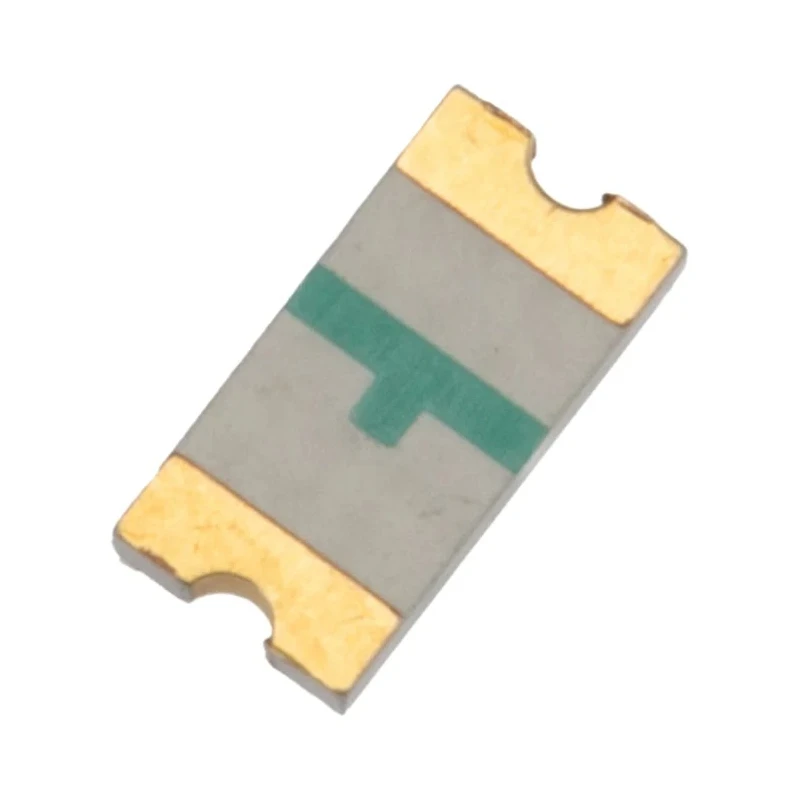

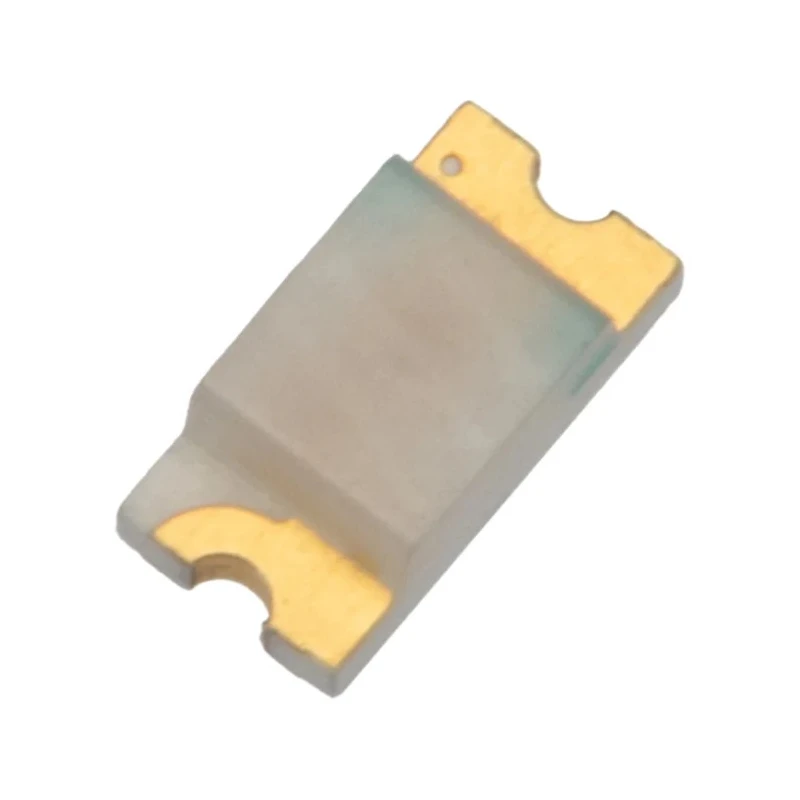

Broadcom 2.2 V 65 mW Green LED Standard Surface Chip LED HSMG-C150

Broadcom HSMG-C150 Green LED Standard Surface Chip LED features a 2.2 V forward voltage and a maximum power dissipation of 65 mW, optimized for surface mount PCB integration. This compact rectangular chip LED emits a sharp green light with a dominant wavelength of 572 nm and luminous intensity of 15 mcd at 25 mA forward current. Its diffused, untinted lens finish provides softened light output with reduced specular glare, ideal for visual indicators requiring broad viewing angles.

The LED package measures 3.2 mm by 1.6 mm with a thickness of 1.1 mm, suitable for high-density surface mount applications. Its broad 170° viewing angle ensures effective visibility from diverse angles, making it perfect for status indication on compact control boards, panel signalling, and consumer electronics.

This device is supplied in tape and reel packaging, supporting automated pick-and-place mounting in manufacturing environments. It complies with RoHS directives for restricted substances, supporting environmentally responsible production.

Typical applications include general-purpose PCB indicator lighting, consumer device status displays, automated LED arrays, and wide-angle signalling in instrumentation. The LED's low forward voltage of 2.2 V simplifies power supply design in low-voltage systems while controlling brightness levels precisely through its 25 mA maximum forward current rating.

Emits bright green light for clear indication with 15 mcd luminous intensity. Rectangular diffused lens enhances visual performance and reduces glare. Compact dimensions of 3.2 x 1.6 x 1.1 mm fit standard surface mount footprints.

Wide 170° viewing angle ensures visibility across broad observation fields. Supplied on tape and reel for streamlined automated PCB assembly. RoHS-compliant construction supports environmentally safe manufacturing. Ideal for electronic control panel indicators and consumer electronics.

Designed for efficient low-voltage LED circuit integration. Explore a wide range of LED components and optoelectronic devices in the Electronics & Electricals category at EnvMart.
