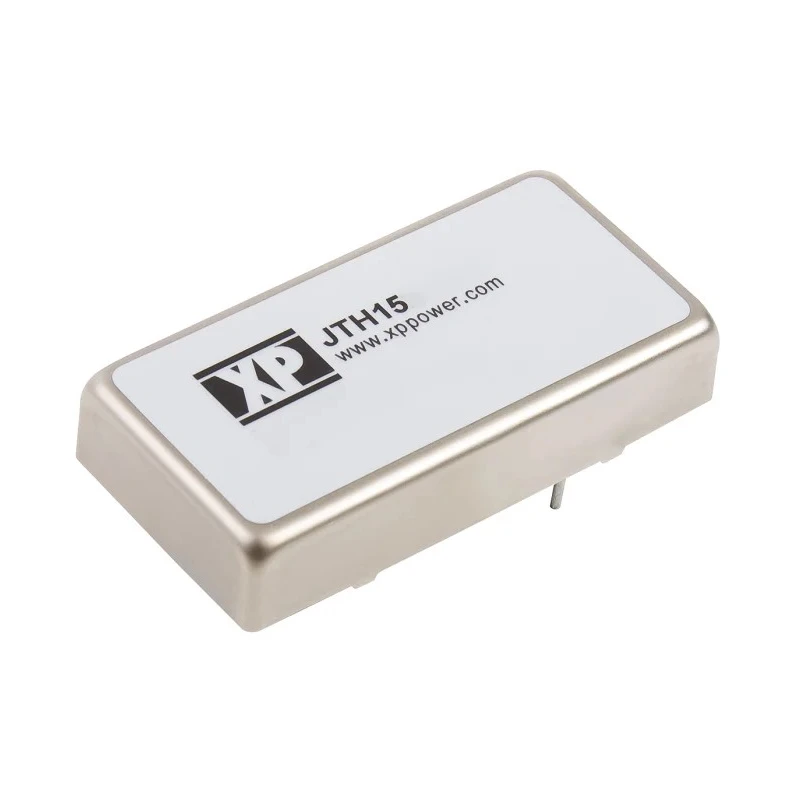

XP Power Isolated 15W DC/DC Converter, 5V DC Output, 3A, 18-72V DC Input, Through Hole DIP Package JTH1548S05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JTH DC/DC Converter, 5V dc/ 3 A, 72V dc I |
| Brand | XP Power |
| Efficiency | 83% |
| Length | 50.8mm |
| Model | JTH1548S05 |
| Depth | 10.1mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JTH |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1210000h |
| Number of outputs | 1 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 72V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 3A |
| Output Voltage Adjustment Range | 18/72 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
| Wide 4 | 1 input range |
Key Features
- Isolated DC/DC converter with 1500 VDC isolation for safety.
- High efficiency of up to 83% ensures low energy loss and heat generation.
- Operating temperature range from -40°C to +100°C suitable for harsh environments.
- Compact dimensions, 50.8mm length, 25.4mm width, and 10.1mm depth for easy board mounting.
- Single output design with 6 pins and through hole mount for secure installation.
- Robust DIP package type designed to industry standards.
- MTBF rating of 1,210,000 hours indicates high reliability.
- Supports output voltage adjustment range between 18V and 72V input voltages.
Product Description
XP Power JTH1548S05 is a high-performance isolated DC/DC converter providing a reliable 15W output with a fixed 5V DC voltage at 3A output current. It is designed to accept a wide input voltage range from 18V to 72V DC, making it suitable for various industrial and electronic power supply applications.
The converter features industry-standard DIP package with through hole mounting, ensuring easy integration on PCB assemblies. It has a compact form factor with dimensions of 50.8mm length, 25.4mm width, and 10.1mm depth, ideal for space-constrained environments.
This model delivers up to 83% efficiency, reducing power loss and thermal stress. With a high isolation voltage of 1500 VDC, it offers excellent protection between input and output, enhancing system safety and noise immunity.
Its robust operating temperature range from -40°C to 100°C qualifies it for use in demanding industrial, automotive, and telecommunications environments. The device’s MTBF rating of 1,210,000 hours underscores its durability and long operational life expectancy.
The JTH1548S05 model supports a 4:1 wide input voltage ratio with output voltage adjustment between 18V and 72V input range and includes 6 pins for electrical connectivity. It is manufactured in Taiwan, Province Of China, adhering to strict quality standards.
Isolated DC/DC converter with 1500 VDC isolation for safety. Wide 4:1 input voltage range from 18V to 72V DC for versatile applications. High efficiency of up to 83% ensures low energy loss and heat generation. Operating temperature range from -40°C to +100°C suitable for harsh environments.
Compact DIP package with through hole mounting for secure installation. Single output with 5V DC and 3A output current. MTBF rating of 1,210,000 hours indicating high reliability. Dimensions: 50.8mm length x 25.4mm width x 10.1mm depth for easy PCB integration.
Manufactured in Taiwan, Province Of China ensuring quality.
This DC/DC converter is ideal for use in industrial power control, telecommunications, instrumentation, and other embedded power supply applications requiring isolated and efficient voltage conversion. Browse the Electronics & Electricals > Converters > DC/DC Converter category on EnvMart for more products in this segment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JTH1548S05 DC/DC converter provides a maximum output power of 15W.
This model accepts a wide input voltage range from 18V to 72V DC, supporting a 4:1 input ratio.
The converter has an efficiency rating of up to 83%, which helps reduce energy loss and heat generation.
The dimensions of this unit are 50.8mm in length, 25.4mm in width, and 10.1mm in depth.
The maximum operating temperature for the JTH1548S05 is 100°C, making it suitable for harsh environments.
This model features a through hole mounting type, designed for secure installation on PCB assemblies.
The JTH1548S05 has 6 pins for electrical connectivity.
It has an isolation voltage of 1500 VDC, providing excellent protection between input and output.
The operating temperature range for this model is from -40°C to 100°C.
The mean time between failures (MTBF) rating for this converter is 1,210,000 hours, indicating high reliability.
This DC/DC converter is suitable for industrial power control, telecommunications, instrumentation, and other embedded power supply applications.
Yes, the output voltage can be adjusted within the input voltage range of 18V to 72V.
