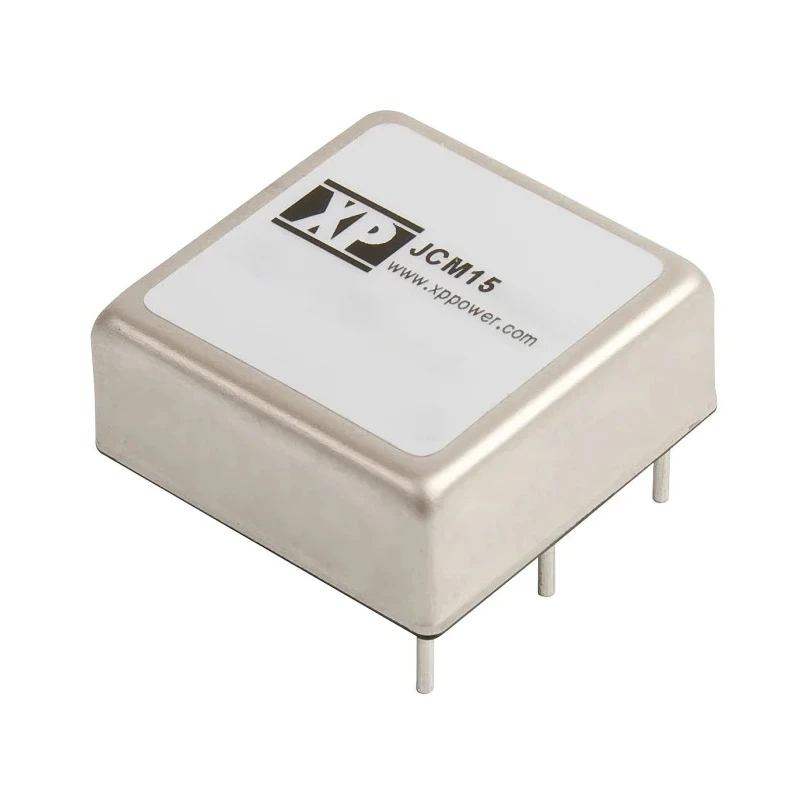

XP Power Isolated DC/DC Converter 5V DC, 3A Output, 18-36V DC Input, 15W, Through Hole DIP Package JCM1524S05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCM DC/DC Converter, 5V dc/ 3 A, 36V dc I |
| Brand | XP Power |
| Efficiency | 87% |
| Length | 25.4mm |
| Model | JCM1524S05 |
| Depth | 9.9mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JCM |
| Maximum Operating Temperature | 105°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 560000h |
| Number of outputs | 1 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 10 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 3A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- High efficiency of 87% ensures energy-saving operation.
- Isolation voltage of 1.6kV DC enhances safety in electrical systems.
- Wide operating temperature range from -40°C to 105°C suits harsh industrial environments.
- Compact dimensions of 25.4mm x 25.4mm x 9.9mm suit dense PCB layouts.
- Single output design simplifies integration in power supplies.
- 1600 VDC isolation supports sensitive electronic circuits.
- Mean time between failures (MTBF) of 560,000 hours indicates high reliability.
- Standard DIP package with 10 pins for easy through-hole mounting.
Product Description
XP Power JCM1524S05 is a high-performance isolated DC/DC converter designed to provide a stable 5V DC output at 3A current with a maximum power of 15W. It operates with a wide input voltage range from 18V to 36V DC, making it highly adaptable to varying power supply conditions. The device is housed in a compact DIP through-hole package, measuring 25.4mm in width, 25.4mm in length, and 9.9mm in depth, facilitating easy integration on printed circuit boards where space is limited.
This DC/DC converter boasts an efficiency rating of 87%, contributing to lower heat generation and energy loss during operation. It supports a high isolation voltage of 1.6kV DC, protecting sensitive electronics from electrical noise and potential surges. With an operating temperature range of -40°C to 105°C, it is suitable for use in demanding industrial, manufacturing, and electronic systems where environmental conditions are challenging.
The product features a single output configuration and a 2:1 input voltage ratio, offering stability and reliability in power conversion tasks. Its robust MTBF of 560,000 hours underscores its durability and long-term operational reliability. The 10-pin DIP package ensures straightforward through-hole mounting for secure mechanical and electrical connection.
Typical applications include power management in industrial equipment, electronic instruments, telecommunications devices, and embedded systems requiring efficient DC voltage conversion. The JCM15 series is known for its high power density and built-in protection, supporting safe and reliable system operation.
Manufactured in Taiwan (Province Of China), XP Power's JCM1524S05 complies with industrial standards for power supply components. High efficiency reduces energy consumption and heat output. 1600 VDC isolation protects against electrical faults.
Wide input voltage range accommodates fluctuating supply voltages. Robust construction ensures long operational life. Easy board mounting through-hole DIP package.
For engineers and designers seeking reliable DC/DC conversion solutions, this component offers a trusted performance benchmark. Explore more DC/DC Converters in the Electronics & Electricals category at EnvMart for your power supply needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 5V DC with a maximum output current of 3A.
The input voltage range for the JCM1524S05 is from 18V to 36V DC.
It has an efficiency rating of 87%, contributing to energy-saving operation.
The dimensions of the JCM1524S05 are 25.4mm in length, 25.4mm in width, and 9.9mm in depth.
The isolation voltage of the JCM1524S05 is 1.6kV DC, which enhances safety in electrical systems.
This model operates within a temperature range of -40°C to 105°C, making it suitable for harsh environments.
It features a single output design, simplifying integration in power supplies.
The MTBF for the JCM1524S05 is 560,000 hours, indicating high reliability.
This unit is designed for through-hole mounting with a standard 10-pin DIP package.
The maximum output power of this model is 15W.
Typical applications include power management in industrial equipment, electronic instruments, telecommunications devices, and embedded systems.
The input ratio for this model is 2:1, indicating its adaptability to varying power supply conditions.
