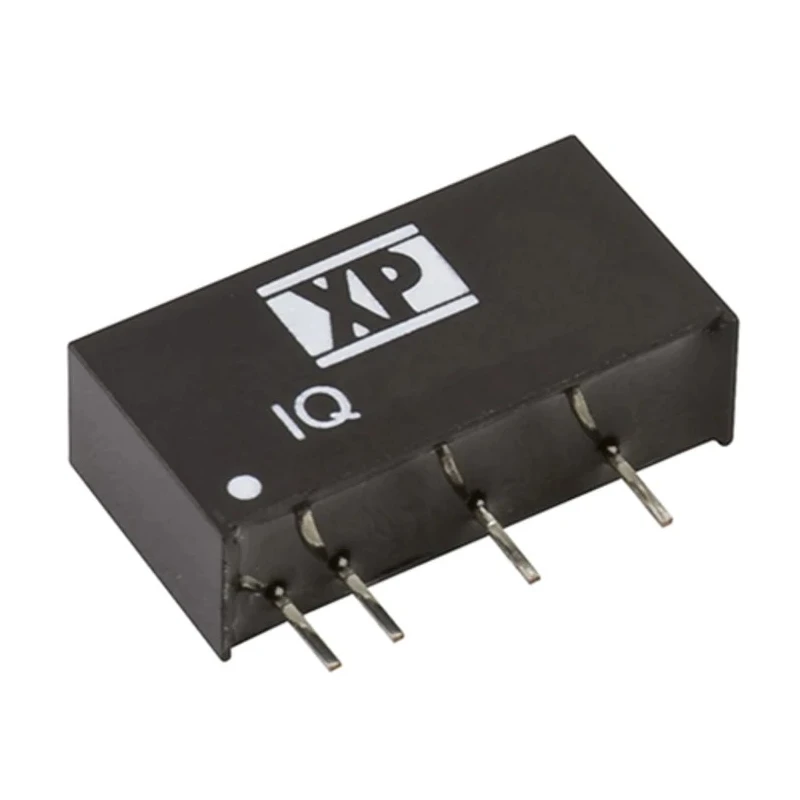

XP Power IQ Series Isolated DC/DC Converter 5 V DC 200 mA Output 10.8 V to 13.2 V DC Input 1 W SIP Package Through IQ1205SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IQ DC/DC Converter, 5V dc/ 200 mA, 13 |
| Brand | XP Power |
| Efficiency | 84% |
| Length | 19.5mm |
| Model | IQ1205SA |
| Depth | 10mm |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | IQ |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 13.2V dc |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Operates with input voltage from 10.8 V to 13.2 V DC ensuring flexible power supply compatibility.
- Features single output with 1 W maximum output power and 84% efficiency for low power applications.
- Employs industry-standard SIP packaging with through hole mounting for easy PCB integration.
- Designed for operating temperature range of -40°C to 85°C suitable for harsh environments.
- Offers 1 kV DC isolation voltage enhancing system safety and noise immunity.
- 7-pin configuration with small dimensions (19.5 mm length, 6 mm width, 10 mm depth) for compact circuit design.
- Mean time between failures (MTBF) rated at 1,100,000 hours ensuring long operational life.
Product Description
XP Power IQ1205SA is an isolated DC/DC converter designed to provide reliable 5 V DC output at 200 mA with a maximum power of 1 W. It supports input voltages ranging from 10.8 V to 13.2 V DC, making it adaptable for various power supply environments. The converter features a compact SIP package optimized for through hole mounting, measuring 19.5 mm in length, 6 mm in width, and 10 mm in depth.
This DC/DC converter excels in applications requiring electrical isolation up to 1,000 V DC, enhancing system safety and reducing electromagnetic interference. It operates efficiently at 84%, which contributes to reduced energy loss and heat generation. The unit is designed to perform reliably across a wide industrial temperature range from -40°C to 85°C, providing robust use in environmental conditions commonly found in industrial, telecommunications, medical devices, and embedded systems.
The IQ series products by XP Power have a proven track record of quality with a mean time between failures (MTBF) of over 1,100,000 hours, indicating exceptional durability and reliability in continuous operation.
The SIP package with 7 pins facilitates easy integration into electronic circuits requiring power conversion with isolation. Its through hole mount enhances mechanical stability in printed circuit boards used in manufacturing and industrial automation.
Input voltage range: 10.8 V to 13.2 V DC. Output voltage: 5 V DC at 200 mA. Maximum output power: 1 W. Isolation voltage: 1 kV DC for electrical isolation. Operating temperature: -40°C to 85°C for harsh environment suitability.
7-pin SIP package, through hole mount. Dimensions: 19.5 mm (L) x 6 mm (W) x 10 mm (D). High efficiency of 84% for energy saving. MTBF: 1,100,000 hours ensures longevity.
This DC/DC converter is ideal for a broad range of industrial, laboratory, telecommunications, and embedded power management applications requiring isolated, regulated 5 V output power in a compact footprint. Its robustness and reliability make it suitable for demanding electrical systems where consistent performance under varying temperature and voltage conditions is critical.
Browse our extensive range of DC/DC Converters at EnvMart to find compatible power modules tailored to your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 10.8 V to 13.2 V DC.
This unit provides a maximum output power of 1 W.
It delivers an output voltage of 5 V DC with a current of 200 mA.
The efficiency rating of this model is 84%.
The dimensions of the SIP package are 19.5 mm in length, 6 mm in width, and 10 mm in depth.
It features an isolation voltage of 1 kV DC, enhancing electrical isolation.
The operating temperature range is from -40°C to 85°C, suitable for harsh environments.
This unit has a 7-pin configuration.
It employs a through hole mounting type for easy PCB integration.
The MTBF is rated at 1,100,000 hours, indicating a long operational life.
The country of origin for this model is Taiwan.
This converter is suitable for industrial, telecommunications, medical devices, and embedded systems requiring isolated power management.
