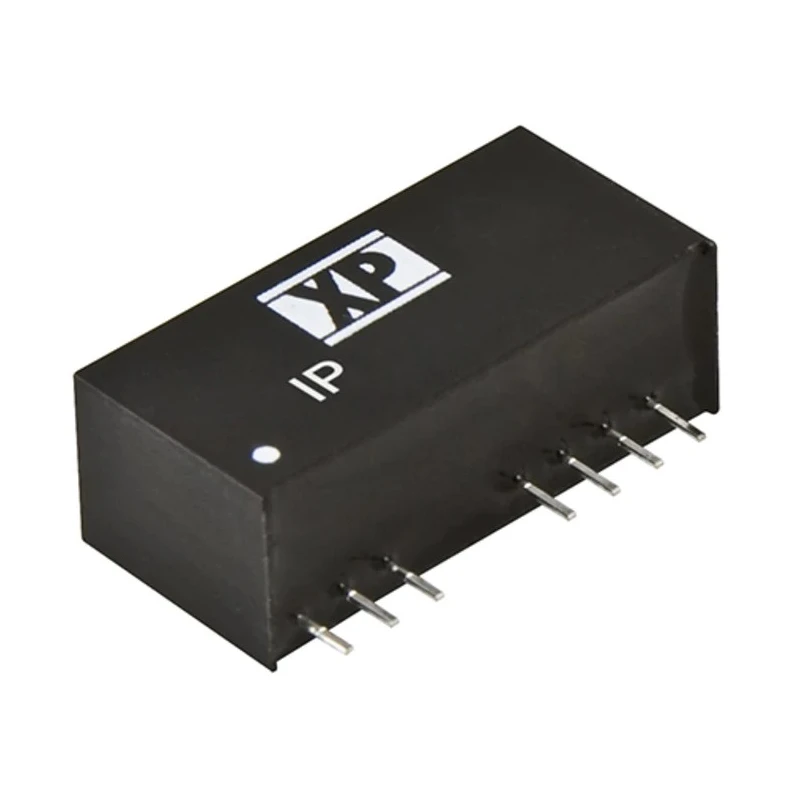

XP Power Isolated DC/DC Converter 5V dc 600mA 36V dc Input 9V Input 3W Through Hole SIP Package IP2405SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IP DC/DC Converter, 5V dc/ 600 mA, 36V dc |
| Brand | XP Power |
| Efficiency | 79% |
| Length | 21.85mm |
| Model | IP2405SA |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | IP |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1700000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 600mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Offers regulated 5V DC output with 600mA current capacity.
- Supports input voltage range of 9V minimum up to 36V maximum DC.
- Compact through hole SIP package designed for easy PCB mounting.
- Capable of operating in temperatures from -40°C to +85°C.
- Provides electrical isolation voltage of 1.6kV DC for safe operation.
- High reliability with MTBF of 1,700,000 hours ensures long service life.
- Efficiency of approximately 79% for energy-saving performance.
- Includes continuous short circuit protection and remote on/off control.
Product Description
XP Power IP2405SA is a highly reliable, isolated DC/DC converter designed for electronics requiring a regulated 5V output with up to 600mA current. This model features a 3W maximum output power and operates with input voltages ranging from 9V to 36V DC, supporting a wide 4:1 input ratio for versatile power supply conditions. The device is housed in an industry standard through hole SIP package, measuring 21.85mm in length, 9.2mm in width, and 11.1mm in depth.
Designed for demanding industrial environments, the IP2405SA performs reliably within an operating temperature range of -40°C to 85°C and offers electrical isolation of 1.6kV DC, ensuring safety and noise reduction in sensitive applications. With a mean time between failures (MTBF) of 1,700,000 hours, this converter guarantees long-term stability and minimal downtime. It delivers an efficiency of about 79%, balancing performance with power consumption.
The converter includes continuous short circuit protection and remote on/off settings, enhancing control and safeguarding connected circuits. Its standard 8-pin SIP package facilitates easy integration into printed circuit boards for power supply and embedded system designs.
Regulated 5V DC output at 600mA current capacity. Wide input voltage range of 9V to 36V DC supporting 4:1 ratio. Industrial through hole SIP package for PCB mounting. High isolation voltage of 1.6kV DC ensures safe operation.
Operating temperature range from -40°C up to 85°C. Mean Time Between Failures (MTBF) of 1,700,000 hours. Efficiency rated at 79% for optimized power usage. Continuous short circuit protection and remote on/off control. Compact dimensions: length 21.85mm, width 9.2mm, depth 11.1mm.
This DC/DC converter is ideal for industrial electronics, power supply and distribution systems, embedded applications, and any scenario requiring stable isolated voltage conversion with compact form factor. XP Power's IP series is known for robust performance and compliance with reliability standards.
Discover a wide selection of DC/DC Converters and power supply solutions at EnvMart to meet your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 5V DC with a current capacity of 600mA.
The input voltage range for this converter is from 9V to 36V DC, supporting a 4:1 input ratio.
The SIP package measures 21.85mm in length, 9.2mm in width, and 11.1mm in depth.
The maximum output power of the IP2405SA is 3W.
It operates within a temperature range of -40°C to 85°C.
The electrical isolation voltage is 1.6kV DC, ensuring safe operation.
This converter has an efficiency rating of approximately 79%.
The MTBF for this model is 1,700,000 hours, indicating high reliability.
Yes, it includes continuous short circuit protection and remote on/off control.
This model has one output.
It is designed for through hole mounting, making it suitable for PCB integration.
It is suitable for industrial electronics, power supply and distribution systems, and embedded applications requiring stable isolated voltage conversion.
