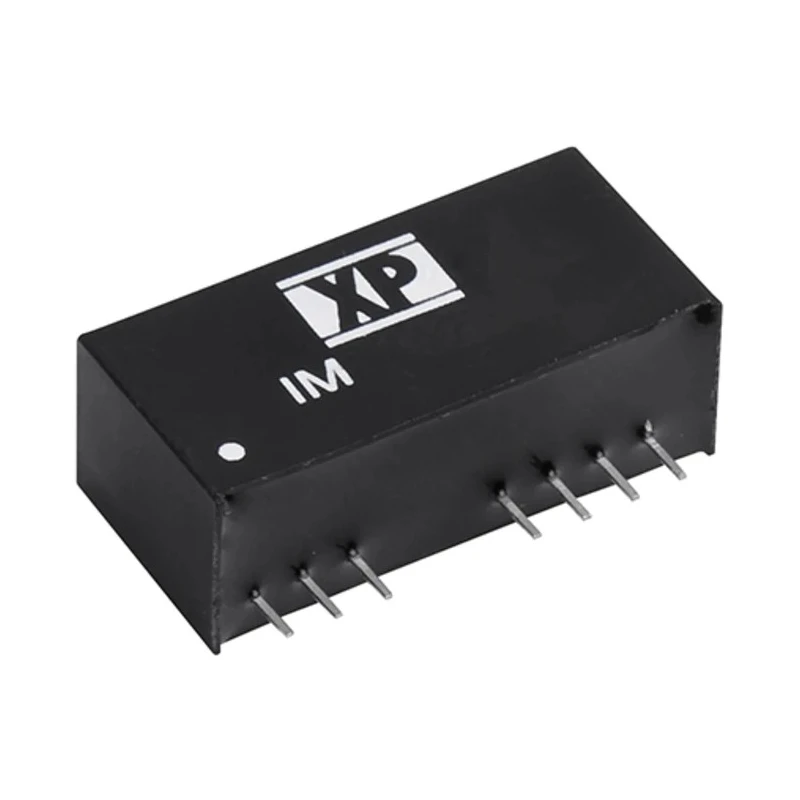

XP Power IM Series Isolated 2W DC/DC Converter, 12V DC Output, 165mA, 9V to 36V DC Input, Through Hole, SIP IM2412SA

XP Power IM2412SA is part of the IM series of isolated DC/DC converters designed for reliable power supply in industrial and electronic applications. This 2 watt converter provides a regulated 12 volt DC output at 165 mA from a flexible input voltage range of 9 to 36 volts DC. The converter features robust isolation of 1.5 kV DC which protects sensitive circuits and ensures safe operation in complex systems.

Encased in a SIP through hole package, the IM2412SA offers straightforward PCB mounting with its 7-pin configuration and compact dimensions of 26mm length, 12.5mm depth, and 9.2mm width. It provides excellent efficiency at 84%, minimizing heat dissipation in continuous operation scenarios. The device supports high reliability with an MTBF of 1,200,000 hours and is capable of operating over a wide temperature range from -40 °C to 100 °C, making it suitable for harsh industrial environments.

This DC/DC converter is ideal for power supply requirements in automation, instrumentation, telecommunications, and control systems where isolated, regulated voltage is critical. The broad input voltage range with a 4:1 ratio accommodates diverse DC power sources, adding flexibility to power system designs. The converter also includes remote on/off functionality and continuous short circuit protection enhancing operational safety and control.

This converter delivers 2 watts maximum output power with high efficiency of 84%. It features a 1.5kV DC isolation voltage for reliable operation in industrial environments. The package is a compact SIP type with 7 pins and through hole mounting for easy PCB integration.

Supports continuous operation with MTBF of 1,200,000 hours for robust reliability. Ideal for use in power supplies, industrial control systems, and automation equipment. Operating temperature range from -40°C to 100°C enables use in harsh environments.

Input voltage ratio of 4:1 accommodates varied DC input sources safely. Offers regulated single output voltage with 9-36V voltage adjustment range. It is suitable for engineering projects requiring compact, efficient, and isolated DC/DC voltage conversion.
