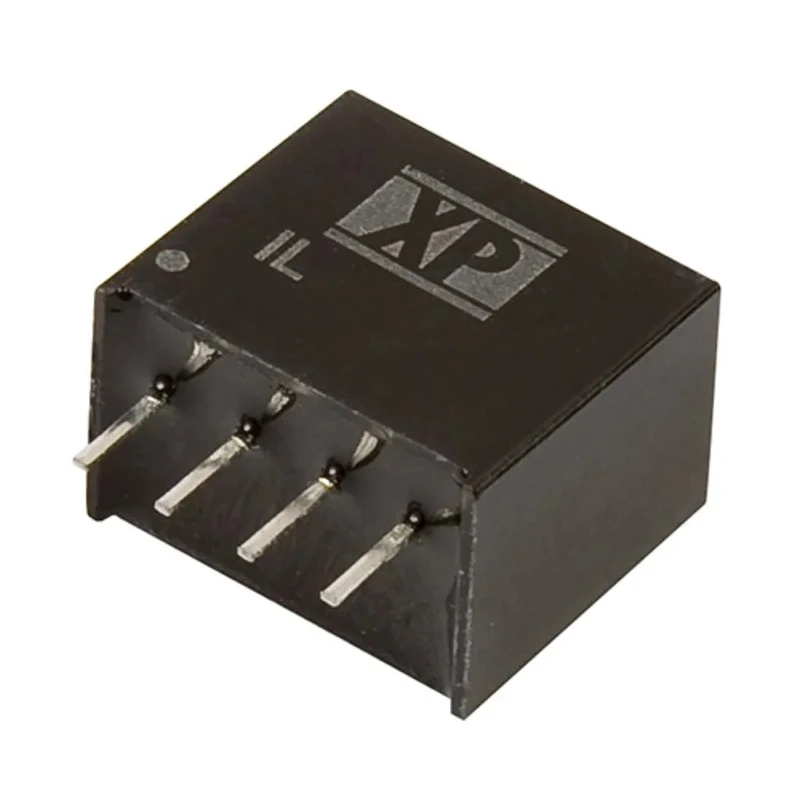

XP Power 2 W Isolated DC/DC Converter 3.3 V DC Output 400 mA 4.5-5.5 V DC Input SIP Package Through Hole Mount IL0503S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Efficiency | 71% |
| Length | 11.68mm |
| Model | IL0503S |
| Depth | 10.16mm |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Series | IL |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1210000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 4 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 400mA |
| Isolation Voltage | 1kV dc |
Key Features
- Operates with an input voltage range of 4.5 V to 5.5 V DC.
- Features 1000 V DC isolation for enhanced safety and noise reduction.
- Compact SIP package with dimensions approximately 11.68 mm length, 7.5 mm width, and 10.16 mm depth.
- Wide operating temperature range from -40 °C to +85 °C for industrial applications.
- High reliability with MTBF of 1,210,000 hours ensuring long service life.
- Efficiency rated at 71% to optimize power usage.
- Single output with 4 pins, ideal for embedded and industrial power supply projects.
- Designed and manufactured in Taiwan, Province Of China.
Product Description
The XP Power IL0503S model is a highly reliable isolated DC/DC converter providing 2 W output power with a stable 3.3 V DC output at 400 mA current. Designed for through-hole mounting, it uses an industry-standard SIP package, measuring 11.68 mm in length, 7.5 mm in width, and 10.16 mm in depth. This converter supports a wide input voltage range from 4.5 V to 5.5 V DC, making it versatile for various low-voltage power supply applications.
This converter features a robust isolation voltage of 1000 V DC between input and output, ensuring noise immunity and protecting sensitive electronics in industrial or commercial environments. It operates efficiently at 71%, minimizing power losses and heat generation.
The operating temperature range from -40 °C up to +85 °C extends its usability to harsh conditions common in industrial, laboratory, and embedded applications. Its high Mean Time Between Failures (MTBF) of 1,210,000 hours confirms the durability and reliability required for demanding use cases.
Packaged in a compact SIP form factor with 4 pins, this converter is easy to integrate into PCBs and assembly lines for power supply and voltage isolation tasks. The product is manufactured in Taiwan, Province Of China, ensuring quality standards consistent with international expectations.
Operates with an input voltage range of 4.5 V to 5.5 V DC. 1000 V DC isolation voltage for safety and noise prevention. Compact SIP package, suitable for through hole mounting with 4 pins. Wide temperature range: -40 °C to +85 °C for industrial use.
Efficiency of 71% provides optimized power consumption. MTBF of 1,210,000 hours ensures high reliability. Single output delivers 3.3 V DC at 400 mA current. Compact dimensions facilitate PCB integration.
This XP Power DC/DC converter series caters to industrial, electronic component manufacturing, power supply distribution, and embedded system requirements. The versatile specifications make it well suited for applications needing isolated power conversion with high reliability and temperature tolerance. Available as a high-quality solution, this IL series DC/DC Converter ensures stable and efficient power for your electronic designs.
Explore more power conversion products and components on EnvMart for your industrial or laboratory projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 4.5 V to 5.5 V DC.
It provides a stable output voltage of 3.3 V DC with a maximum output current of 400 mA.
This model features an isolation voltage of 1000 V DC, enhancing safety and noise immunity.
The SIP package dimensions are approximately 11.68 mm in length, 7.5 mm in width, and 10.16 mm in depth.
The efficiency of this model is rated at 71%, optimizing power usage.
It operates within a wide temperature range from -40 °C to +85 °C, suitable for industrial applications.
The MTBF for this model is 1,210,000 hours, indicating high reliability.
This unit provides a single output.
It is designed for through-hole mounting, making it easy to integrate into PCBs.
This model is manufactured in Taiwan, Province Of China.
This converter is suitable for various low-voltage power supply applications, particularly in industrial and embedded systems.
The SIP package of this converter has 4 pins.
