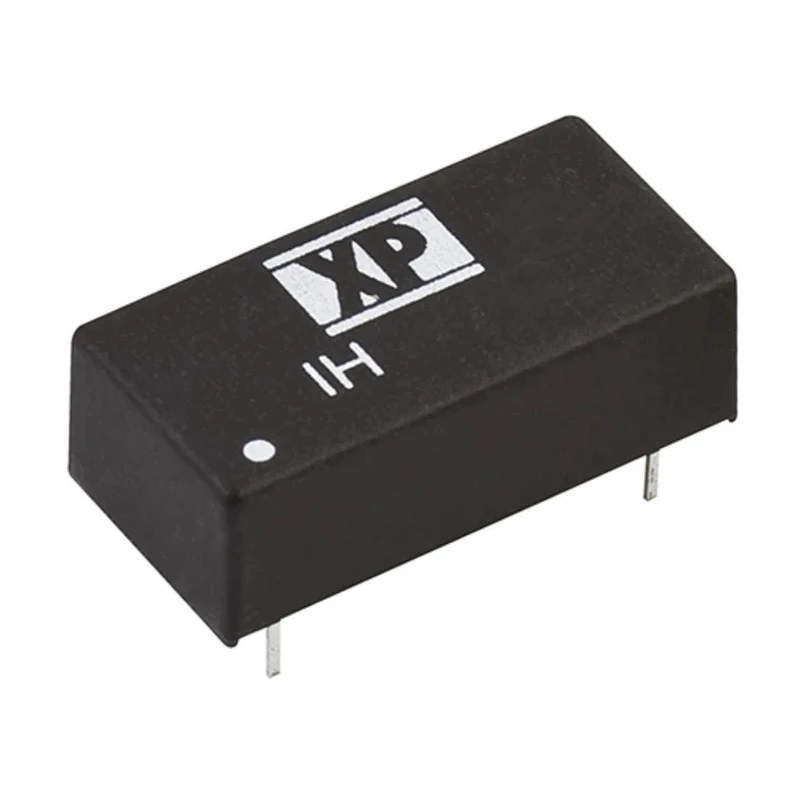

XP Power IH Series 2W Isolated Dual Output DC-DC Converter 9V DC Output, 26.4V Maximum Input, Through Hole SIP IH2409D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IH DC/DC Converter, 9V dc/ 200 mA, 26 |
| Brand | XP Power |
| Efficiency | 80% |
| Length | 20.32mm |
| Model | IH2409D |
| Depth | 6.88mm |
| Width | 10.16mm |
| Mount Type | Through Hole |
| Series | IH |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 26.4V dc |
| Minimum Input Voltage | 21.6V |
| Number of Pins | 7 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1kV dc |
Key Features
- Provides 9V DC output with up to 200mA current capability.
- Accepts input voltage from 21.6V DC to 26.4V DC.
- Through hole mount with industry-standard SIP package.
- High isolation voltage of 1kV DC between input and output.
- Operates with approximately 80% efficiency.
- Wide operating temperature range from -40°C to 85°C.
- Features 7 pins and dual outputs for versatile applications.
- MTBF rated at 1,100,000 hours for dependable use.
Product Description
XP Power IH2409D is part of the IH series of isolated DC-DC converters offering dual outputs with a power rating of 2 watts each. This model provides a 9V DC output current of 200mA and supports input voltages ranging between 21.6V and 26.4V DC. Designed in a SIP through-hole package with 7 pins, it offers easy integration into printed circuit boards for industrial and electronic applications.
The converter features a high isolation voltage of 1kV DC between input and output circuits, ensuring electrical safety and noise reduction. It operates with an efficiency of approximately 80%, helping reduce heat generation and improve energy efficiency. Additionally, its wide operating temperature range from -40 degrees Celsius to +85 degrees Celsius makes it suitable for diverse environmental conditions.
This device is ideal for use in power supplies and transformers, industrial electronics, instrumentation, telecommunications, and embedded computing systems requiring stable dual-output DC voltages with isolation. Its compact size and through-hole mounting enable easy implementation in automated assembly lines and repairable hardware.
Provides isolated dual output for enhanced system safety. Compatible with industrial and commercial power supply designs. Ensures high reliability with an MTBF of 1,100,000 hours. Maintains operation under extreme temperatures for wide range use cases.
Industry-standard SIP packaging streamlines PCB assembly.
XP Power is renowned for high-quality power converters that meet industrial and commercial power management requirements. Explore more in the DC/DC Converter category at EnvMart for compatible solutions by this brand.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IH2409D provides a 9V DC output with a current capability of up to 200mA.
It accepts input voltages ranging from 21.6V DC to 26.4V DC.
The efficiency of this model is approximately 80%.
This converter features a high isolation voltage of 1kV DC between the input and output circuits.
The operating temperature range is from -40°C to +85°C.
This model has two outputs.
The dimensions are 20.32mm in length, 10.16mm in width, and 6.88mm in depth.
It is designed for through-hole mounting in an industry-standard SIP package.
The MTBF is rated at 1,100,000 hours.
It is suitable for power supplies, industrial electronics, instrumentation, telecommunications, and embedded computing systems.
This model features 7 pins.
The country of origin for this product is Taiwan.
