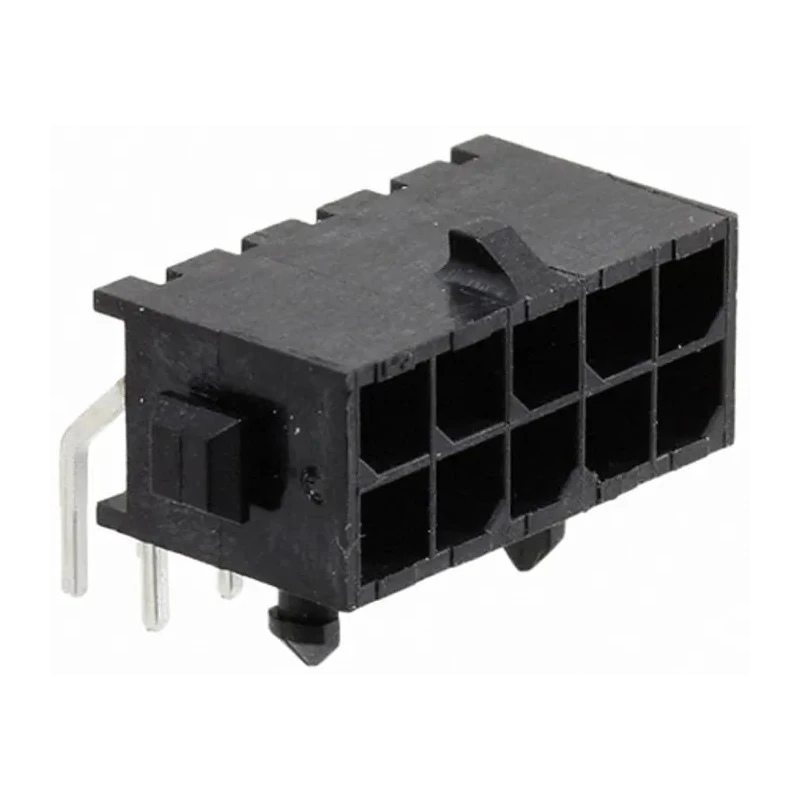

TE Connectivity Micro MATE-N-LOK Series Right Angle Through Hole PCB Header, 10 Contacts, 3 mm Pitch, 2 Rows 4-794618-0

TE Connectivity 4-794618-0 Micro MATE-N-LOK Series Right Angle Through Hole PCB Header is engineered for robust and reliable wire-to-board electrical connections. Featuring 10 male contacts in a shrouded nylon housing with a 3 mm pitch and 2 rows, this connector ensures precise mating and long-lasting performance.

With a current rating of 5A and a voltage rating of 250V, this PCB header is suitable for moderate power electronic applications with operating temperatures ranging from -55°C to 105°C, making it viable for demanding industrial environments.

The brass contacts with tin plating improve conductivity and resist corrosion. Its design includes polarization features and positive lock tabs to prevent mis-mating, while boardlock retention enhances mechanical stability on PCBs. The solder termination type facilitates secure attachment.

The right angle orientation allows flexible PCB layout options, especially in compact or space-constrained designs. The 3.03 mm tail pin length and 3 mm row pitch provide industry-standard physical dimensions, compatible with automated assembly processes.

This connector series is rated 94V-0 for housing flame retardancy and is suitable for a wide range of applications including household appliances, LED lighting systems, factory automation, data storage solutions, and security equipment.

The Micro MATE-N-LOK system includes wire-to-wire and wire-to-panel connector options beyond PCB headers, delivering a versatile family for industrial and consumer electronic applications.

This PCB header supports a current rating of 5A for reliable electrical performance. Constructed with brass contacts and tin plating to ensure durability and corrosion resistance. Features polarization and positive lock tabs to prevent mismating and ensure solid connections.

Operating temperature range spans from -55°C to 105°C, suitable for demanding environments. Right angle orientation and solder termination type provide versatile PCB design implementation. Designed with a 3.03 mm tail pin length and 3 mm row pitch for standardized PCB mounting.

The connector system facilitates wire-to-board connections with secure boardlock retention. Manufactured to 94V-0 rated standard housings for flame retardancy and safety compliance. Ideal for applications in household appliances, lighting, factory automation, data storage, and security systems.

Country of origin is China, ensuring global manufacturing standards. Explore EnvMart’s comprehensive selection of PCB connectors and wire housing solutions to find compatible components for your next electronic design project.
