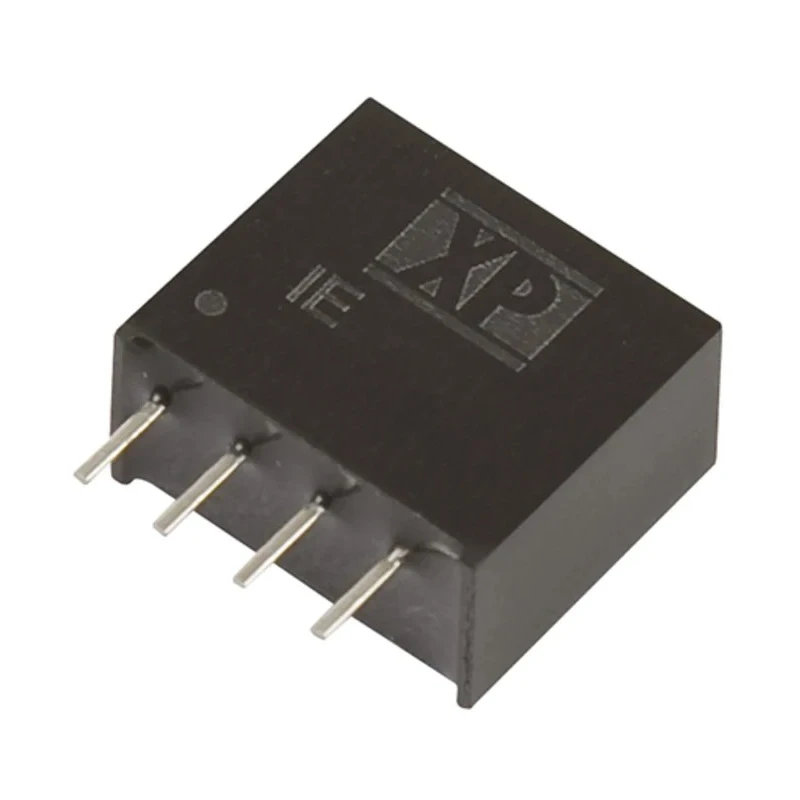

XP Power IE DC/DC Converter, Single Output, 5V dc, 200 mA, 1 W, Through Hole Mount, DIP Package, 3.3V Max Input IE0305S

XP Power IE0305S DC/DC Converter provides isolated single output voltage conversion with high reliability and compact size. It delivers a stable 5V dc output current up to 200 mA at a maximum output power of 1 watt. This device operates efficiently with input voltages between 2.7V and 3.3V, making it suitable for systems powered by low-voltage DC sources.

The converter uses a DIP through-hole package with an 8-pin layout, measuring 11.68mm in length, 6mm in width, and 10.15mm in depth, allowing easy integration into circuit boards. It is rated for operating temperatures from -40°C to 90°C making it robust for industrial and harsh environment applications.

With an isolation voltage of 1kV DC and an MTBF of 1.1 million hours, this unit assures safe, reliable operation. The 75% efficiency rating helps reduce heat dissipation and power loss.

This converter is ideal for industrial automation, telecommunications equipment, power management systems, and embedded devices that require compact, high-quality isolated power conversion.

Offers 1 watt maximum output power for compact industrial electronic applications. Operates with input voltage ranging from 2.7V minimum to 3.3V maximum. Features 75% efficiency and 1kV dc isolation voltage for safety. Designed for operating temperatures from -40°C to 90°C suitable for harsh environments.

Includes 8 pins, DIP package with compact dimensions: 11.68mm length, 6mm width, 10.15mm depth. High MTBF rating of 1,100,000 hours ensures long-term reliability. Mount type is through hole, facilitating easy PCB mounting and integration.

Widely used in industrial, communications, and embedded power supply applications.

Choose XP Power IE0305S for reliable, compact DC/DC power conversion in demanding industrial and electronic applications. Explore the wide range of XP Power DC/DC Converters available at EnvMart for all your power supply needs.
