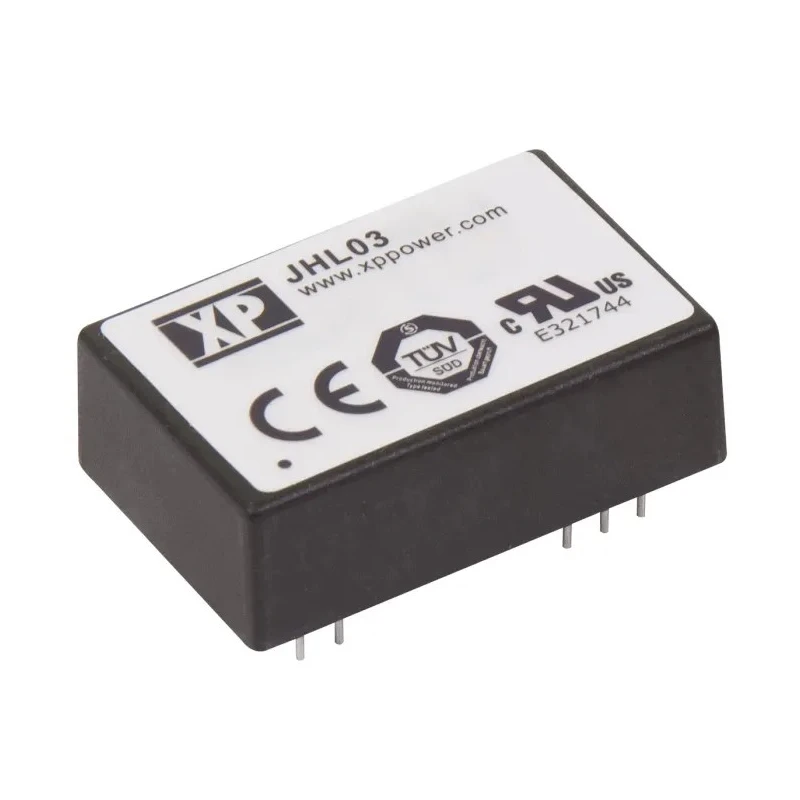

XP Power DC/DC Converter 5V DC 600mA 17V DC Input 10V Input 3W Through Hole JHL03
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JHL03 DC/DC Converter, 5V dc/ 600 mA, 17V |
| Brand | XP Power |
| Efficiency | 76% |
| Length | 31.75mm |
| Model | JHL03 |
| Depth | 10.2mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JHL03 |
| Maximum Operating Temperature | 80°C |
| Package Type | DIP |
| Minimum Operating Temperature | -20°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 17V dc |
| Minimum Input Voltage | 10V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 600mA |
| Isolation Voltage | 4kV ac |
Key Features
- The converter uses a through-hole mount type and DIP package.
- Features 4000 V ac reinforced isolation voltage for safety.
- Operating temperature ranges from -20 °C to 80 °C ensuring reliability.
- It offers an efficiency of 76% for optimized power usage.
- The compact size measures 31.75mm length, 20.32mm width, and 10.2mm depth.
- Device includes 7 pins and delivers 1 output with 600mA output current.
- High MTBF rating of 1,000,000 hours indicates long life expectancy.
- Meets IEC60601-1 3rd edition medical standards and is internationally approved for medical use.
Product Description
XP Power JHL03 DC/DC Converter offers a reliable isolated power conversion solution delivering 5V DC output at 600mA from a DC input of 10V to 17V. This 3W converter comes in a through-hole DIP standard package ensuring easy PCB integration and robust mounting.
Featuring a reinforced insulation of 4000 V AC, this device ensures electrical safety suitable for sensitive electronics including medical equipment. It boasts a long MTBF of 1,000,000 hours and operates reliably from -20 °C up to 80 °C, adapting to demanding industrial environments.
This series complies with IEC60601-1 3rd Edition, making it internationally recognized for medical device use, and meets EN55011 level A emissions requirements without need for extra components. Its 7-pin DIP package dimensions (31.75mm length, 20.32mm width, 10.2mm depth) provide compactness for space-saving designs.
The efficiency rating of 76% supports energy conservation in electronic systems, reducing heat generation and operational costs. Typical applications include medical instruments, commercial electronics, industrial controls, and laboratory power supplies requiring isolated DC voltage regulation.
XP Power's JHL03 series is manufactured in Taiwan, ensuring high-quality production standards. This converter is an ideal choice for engineers seeking a dependable, isolated DC-DC power supply with assured compliance for demanding safety standards.
The converter uses a through-hole mount type and DIP package. Features 4000 V ac reinforced isolation voltage for safety. Operating temperature ranges from -20 °C to 80 °C ensuring reliability. It offers an efficiency of 76% for optimized power usage.
The compact size measures 31.75mm length, 20.32mm width, and 10.2mm depth. Device includes 7 pins and delivers 1 output with 600mA output current. High MTBF rating of 1,000,000 hours indicates long life expectancy. Meets IEC60601-1 3rd edition medical standards and is internationally approved for medical use.
Designed for industrial, medical, commercial, and laboratory applications. Manufactured in Taiwan (Province Of China) to high quality standards. Explore EnvMart's wide range of DC/DC Converters from trusted brands for your industrial, laboratory, and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers an output voltage of 5V DC with a maximum output current of 600mA.
The JHL03 operates with a DC input voltage ranging from 10V to 17V.
It has a compact size with dimensions of 31.75mm in length, 20.32mm in width, and 10.2mm in depth.
The efficiency of the JHL03 DC/DC converter is rated at 76%, optimizing power usage.
This unit features a reinforced isolation voltage of 4000 V AC for safety.
It operates reliably within a temperature range of -20 °C to 80 °C.
The converter provides a single output.
This model utilizes a through-hole mount type and comes in a DIP package.
The mean time between failures (MTBF) for this converter is rated at 1,000,000 hours.
Yes, it complies with IEC60601-1 3rd edition medical standards, making it suitable for medical applications.
This converter is manufactured in Taiwan, adhering to high-quality production standards.
It is designed for use in medical instruments, commercial electronics, industrial controls, and laboratory power supplies.
