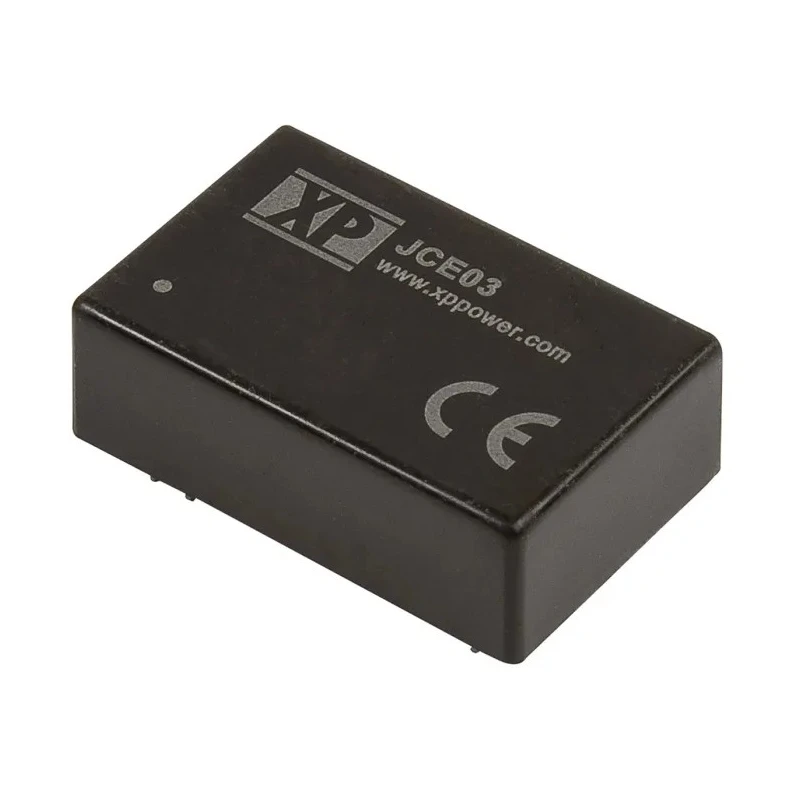

XP Power Isolated DC/DC Converter 24V dc Output 125 mA 3W Through Hole DIP JCE03
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCE03 DC/DC Converter, 24V dc/ 125 mA, 36 |
| Brand | XP Power |
| Efficiency | 81% |
| Length | 31.75mm |
| Model | JCE03 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCE03 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 800000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 8 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 125mA |
| Isolation Voltage | 3kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Operates over an input voltage range of 18V to 36V dc.
- Provides isolation voltage of 3kV dc for enhanced safety.
- Compact DIP package with dimensions 31.75mm length, 20.32mm width, and 10.16mm depth.
- Wide operating temperature range from -40°C to 100°C maximum.
- High reliability with an MTBF of 800,000 hours.
- Efficiency of 81% ensuring energy-efficient performance.
- Single output channel with 8 pins configuration for easy integration.
- No minimum load requirement permitting flexible application.
Product Description
XP Power JCE03 series isolated DC/DC converter, model JCE0324S24-H, provides a fully regulated single output of 24V dc at 125 mA current with a maximum output power of 3W. This converter operates with an input voltage range between 18V and 36V dc, featuring a 2:1 input ratio optimized for flexible power sources.
The device uses a reliable DIP package with through hole mounting type measuring 31.75 mm in length, 20.32 mm in width, and 10.16 mm in depth. It is designed to withstand harsh industrial environments with a wide operating temperature range from -40°C minimum to 100°C maximum, suitable for commercial and industrial power conversion applications.
This converter offers 3kV dc isolation voltage, enhancing electrical safety by effectively isolating the input and output circuits. The series assures high efficiency of 81%, reducing power loss and heat generation during operation. With an MTBF of 800,000 hours, it guarantees long-term reliable performance in demanding power management tasks.
Operates with input voltages from 18V dc to 36V dc. Regulated 24V dc output at 125 mA. Through hole mount DIP package with 8 pins configuration. High isolation voltage of 3kV dc for safe application. Wide operating temperature range from -40°C to 100°C.
Efficiency rated at 81% for energy savings. Long MTBF of 800,000 hours for dependable operation. No minimum load requirement for flexible use.
This XP Power DC/DC converter is ideal for industrial power supply design, telecommunications, instrumentation, and other electronic equipment requiring stable isolated power sources. Its compact size, high isolation, and reliability make it suited for a variety of demanding electronic and industrial environments.
Explore the XP Power DC/DC Converter series and other industrial power supply components on EnvMart for efficient and reliable power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The converter operates over an input voltage range of 18V to 36V dc.
This model provides a regulated output of 24V dc at 125 mA current.
The maximum output power of this DC/DC converter is 3W.
It features an isolation voltage of 3kV dc, enhancing electrical safety by isolating input and output circuits.
The DIP package measures 31.75 mm in length, 20.32 mm in width, and 10.16 mm in depth.
The efficiency of this model is rated at 81%, ensuring energy-efficient performance.
It has a wide operating temperature range from -40°C to 100°C.
This unit has a single output channel.
The MTBF for this converter is 800,000 hours, indicating long-term reliability.
There is no minimum load requirement, allowing for flexible application.
It utilizes a through hole mounting type.
It is suitable for industrial power supply design, telecommunications, instrumentation, and other electronic equipment requiring stable isolated power sources.
