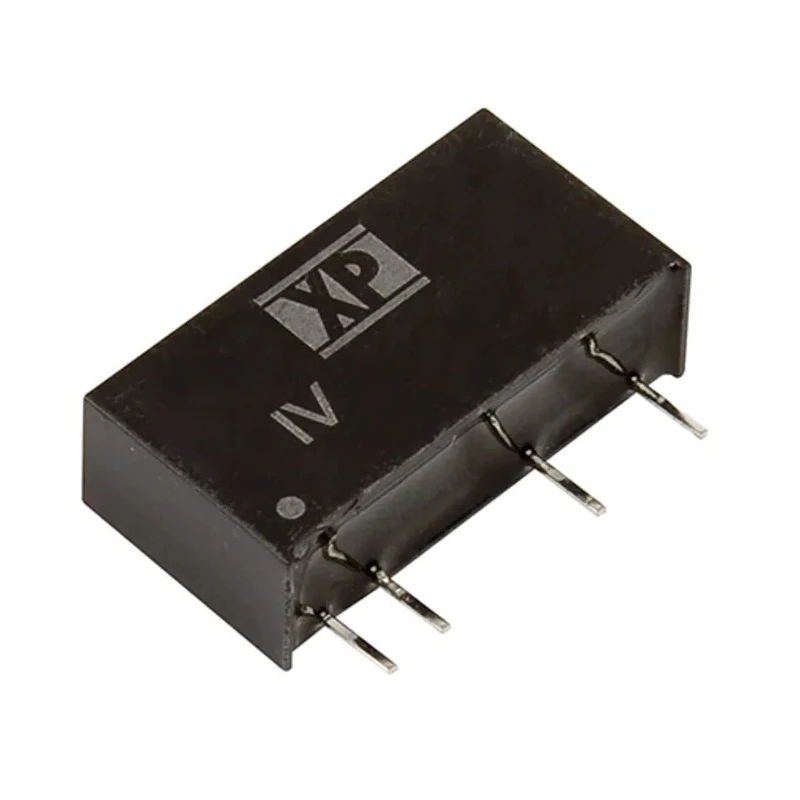

XP Power Isolated DC/DC Converter Single Output 12V DC 10mA 24V DC Input Through Hole SIP Package 1W IV2412SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IV DC/DC Converter, 12V dc/ 10 mA, 24V dc |
| Brand | XP Power |
| Efficiency | 78% |
| Length | 19.5mm |
| Model | IV2412SA |
| Depth | 9.5mm |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | IV |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 24V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 0V |
| Number of Pins | 5 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 10mA |
| Output Voltage Adjustment Range | 0/24 V |
| Isolation Voltage | 3kV dc |
Key Features
- This DC/DC converter features 3000 VDC isolation for safe electrical operation.
- The device supports a wide operating temperature range from -40°C to 85°C.
- It comes in a compact SIP package measuring 19.5mm length, 6mm width, and 9.5mm depth.
- The output voltage can be adjusted within the 0 to 24V range for flexibility.
- Efficiency is rated at 78%, suitable for industrial and commercial applications.
- The converter offers a high MTBF of 1,100,000 hours ensuring reliable long-term use.
- Mounting is by through-hole pins with 5 pins in total.
- This product complies with RoHS environmental standards.
Product Description
The XP Power IV2412SA is a high-reliability, 1 watt isolated DC/DC converter designed for single output power conversion in compact form factors. It provides a regulated 12V DC output at 10mA from an input voltage of up to 24V DC. Developed with an industry standard SIP package and through-hole mounting, it offers easy integration into printed circuit boards.
Featuring 3000 VDC galvanic isolation, the IV series converters protect sensitive circuits by isolating input and output sides, making it suitable for noisy industrial environments and instrumentation. Its robust construction supports an operating temperature range from -40°C up to 85°C, facilitating reliable performance in harsh conditions.
With an efficiency of 78%, the IV2412SA balances power conversion and thermal management. The device’s output voltage is adjustable from 0 to 24V providing application flexibility. The compact dimensions of 19.5mm x 6mm x 9.5mm reduce board space requirements.
This converter is compliant with RoHS directives, assuring environmental safety. It features a high MTBF rating of 1,100,000 hours, underscoring its durability for long-term industrial and electronic applications.
The IV2412SA is suited for use in power supplies, telecommunications equipment, industrial controls, and measurement instruments where isolation and reliable low-power conversion are required.
This DC/DC converter features 3000 VDC isolation for safe electrical operation. The device supports a wide operating temperature range from -40°C to 85°C. It comes in a compact SIP package measuring 19.5mm length, 6mm width, and 9.5mm depth.
The output voltage can be adjusted within the 0 to 24V range for flexibility. Efficiency is rated at 78%, suitable for industrial and commercial applications. The converter offers a high MTBF of 1,100,000 hours ensuring reliable long-term use.
Mounting is by through-hole pins with 5 pins in total. This product complies with RoHS environmental standards. Ideal for isolated power conversion in industrial, electronic, and telecommunications equipment. Explore the XP Power product line and other high-quality DC/DC Converters on EnvMart for industrial and commercial electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 12V DC at a current of 10mA.
The maximum input voltage for the IV2412SA is 24V DC.
The efficiency of the IV2412SA is rated at 78%.
The SIP package measures 19.5mm in length, 6mm in width, and 9.5mm in depth.
It features an isolation voltage of 3000 VDC, ensuring safe electrical operation.
The IV2412SA supports an operating temperature range from -40°C to 85°C.
This model has a single output.
It uses through-hole mounting with a total of 5 pins.
The output voltage can be adjusted from 0 to 24V for flexibility in applications.
The mean time between failures (MTBF) is rated at 1,100,000 hours.
Yes, the IV2412SA complies with RoHS environmental standards.
It is suitable for use in power supplies, telecommunications equipment, industrial controls, and measurement instruments.
