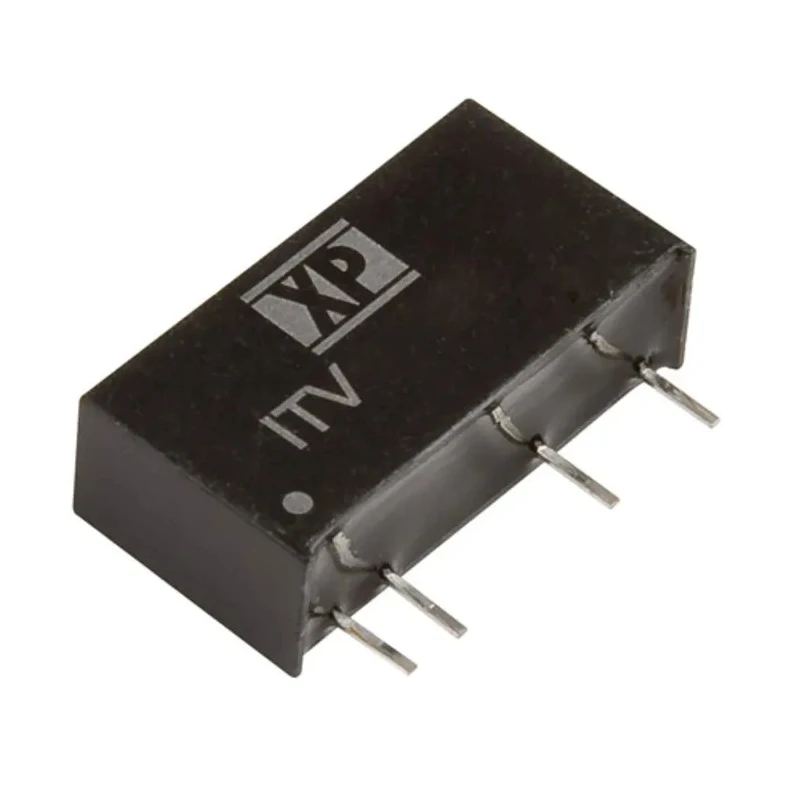

XP Power DC/DC Converter 15V DC Output 66mA 5.5V - 4.5V Input 1W Through Hole SIP Package ITV0515SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power ITV DC/DC Converter, 15V dc/ 66 mA, 5 |
| Brand | XP Power |
| Efficiency | 80% |
| Length | 19.5mm |
| Model | ITV0515SA |
| Depth | 10mm |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | ITV |
| Maximum Operating Temperature | 105°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3600000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 66mA |
| Isolation Voltage | 3kV dc |
Key Features
- The converter accepts an input voltage range of 4.5V to 5.5V DC.
- Rated for a maximum operating temperature of 105°C and minimum of -40°C, suitable for harsh environments.
- Features high reliability with a mean time between failures (MTBF) of 3.6 million hours.
- Provides isolation voltage of 3kV DC for enhanced safety and performance.
- Compact dimensions of 19.5mm length, 10mm depth, and 6mm width facilitate easy PCB mounting.
- Designed with industry standard 7-pin SIP package for through-hole mounting.
- Efficiency is approximately 80%, ensuring stable power conversion.
- Single output configuration designed for reliable electronic power supply applications.
Product Description
XP Power presents the ITV0515SA, a high-quality DC/DC Converter designed for robust, efficient power supply conversion with a 15V DC output at 66mA and a power rating of 1W. Featuring a single isolated output and housed in a standard 7-pin SIP package, this device allows through-hole mounting for straightforward integration into electronic systems.
This converter operates reliably across a wide temperature range from -40°C up to 105°C, making it excellent for industrial, medical, telecommunications, and instrumentation applications requiring stable power supply performance under demanding conditions. It has a high mean time between failures (MTBF) of 3.6 million hours, ensuring long-term durability.
The input voltage tolerance from 4.5V to 5.5V DC allows compatibility with various power sources. It offers a robust isolation voltage of 3kV DC to safeguard against voltage spikes and interference, common in industrial environments. With an efficiency of 80%, the converter maintains minimal energy loss, contributing to overall system efficiency.
The compact dimensions (19.5mm length x 10mm depth x 6mm width) and the SIP form factor support space-efficient circuit board layouts. The through-hole mounting style strengthens mechanical connection and longevity in vibration-prone applications.
Manufactured in Taiwan, the ITV series from XP Power is recognized for quality and reliability. The product meets no specific international approvals or standards but is widely used in power supply design for electronics.
The converter accepts an input voltage range of 4.5V to 5.5V DC. Rated for a maximum operating temperature of 105°C and minimum of -40°C, suitable for harsh environments. Features high reliability with a mean time between failures (MTBF) of 3.6 million hours.
Provides isolation voltage of 3kV DC for enhanced safety and performance. Compact dimensions of 19.5mm length, 10mm depth, and 6mm width facilitate easy PCB mounting. Designed with industry standard 7-pin SIP package for through-hole mounting.
Efficiency is approximately 80%, ensuring stable power conversion. Single output configuration designed for reliable electronic power supply applications. Manufactured in Taiwan, Province Of China, ensuring quality production standards.
Explore more DC/DC Converters and electronic components at EnvMart for your industrial and engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The converter provides a 15V DC output with a current of 66mA.
It accepts an input voltage range of 4.5V to 5.5V DC.
The maximum operating temperature is rated at 105°C.
It features an isolation voltage of 3kV DC for enhanced safety and performance.
The efficiency of this model is approximately 80%.
The dimensions are 19.5mm in length, 10mm in depth, and 6mm in width.
It is designed for through-hole mounting in a standard 7-pin SIP package.
The MTBF is 3.6 million hours, indicating high reliability.
The minimum operating temperature is -40°C, making it suitable for harsh environments.
This model has a single output configuration.
It is manufactured in Taiwan.
It is suitable for industrial, medical, telecommunications, and instrumentation applications requiring stable power supply performance under demanding conditions.
