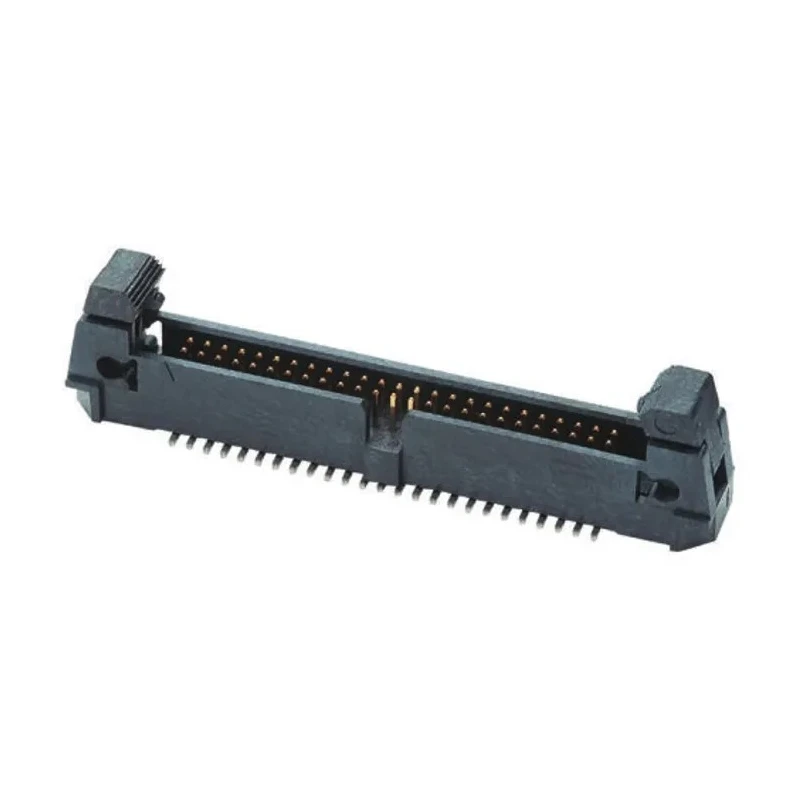

Samtec EHF Series Straight Surface PCB Header 20 Contacts 1.27 mm Pitch 2 Row Shrouded EHF-110-01-L-D-SM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1.75A |
| Model | EHF-110-01-L-D-SM |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | EHF |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3.05mm |
Key Features
- The connector uses phosphor bronze contacts plated with gold for enhanced conductivity and corrosion resistance.
- Housing is constructed from liquid crystal polymer for robust mechanical stability.
- Rated for a current capacity of 1.75A and operating temperature from -55°C to 125°C.
- Shrouded design includes a polarizing notch and ejector latches to ensure accurate mating and secure connections.
- Contact termination is solder type and the orientation is straight, designed for wire-to-board connection systems.
- Mating pin length measures 3.05 mm to ensure reliable engagement.
- Ideal for electronic assembly requiring durable, compact surface mount PCB connectors.
Product Description
Samtec EHF-110-01-L-D-SM is a high-quality, straight surface mount PCB header from the EHF Series, featuring 20 contacts arranged in two rows with a 1.27 mm pitch. Manufactured with liquid crystal polymer housing and gold-plated phosphor bronze contacts, this connector offers excellent electrical performance and durability for demanding electronics applications.
The shrouded design of this PCB header incorporates polarizing notches and ejector latches that aid in precise connector alignment and secure mating to corresponding cable assemblies. Rated for 1.75A current capacity, it supports an operating temperature range from -55°C to 125°C, making it suitable for various industrial, commercial, and electronic systems.
Its surface mount design facilitates easy assembly on PCBs, while the solder termination type ensures strong mechanical and electrical connections. The 3.05 mm mating pin length enhances connector reliability in complex wiring environments. Samtec EHF series connectors are commonly employed in instrumentation, communication devices, control systems, and other electronic manufacturing sectors.
The connector uses phosphor bronze contacts plated with gold for conductivity and corrosion resistance. Housing material is liquid crystal polymer providing mechanical strength. Supports current rating of 1.75A and temperature range of -55°C to 125°C.
Shrouded with polarizing notch and ejector latches for accurate and secure mating. Straight orientation, wire-to-board connector system with solder termination. Contact gender is male with a pin length of 3.05 mm. Compact 2-row design with 1.27 mm pitch spacing between contacts.
Such connectors are essential components in electronic devices, supporting reliable interconnection on printed circuit boards. Their robust design ensures longevity and performance in various applications including industrial machinery, manufacturing instrumentation, and communication equipment.
Explore the full range of Samtec PCB Headers at EnvMart to meet your precise design and reliability requirements.
