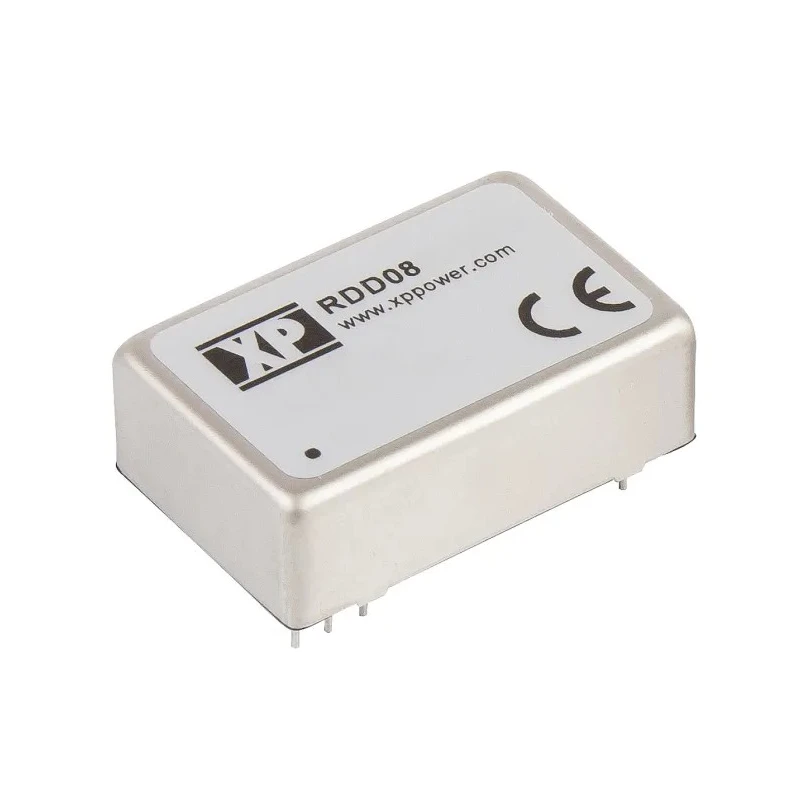

XP Power RDD Series DC/DC Converter Dual Output 15 V, -15 V, 265 mA, 8 W, 70 V Input, Through Hole Mount RDD0824D15

XP Power RDD0824D15 DC/DC Converter is a dual output power module delivering +15 V and -15 V output voltages at 265 mA current with an 8 W maximum output power rating. This device is encapsulated in a DIP-24 plastic through-hole package that ensures easy and secure PCB mounting. The converter supports a wide input voltage range spanning 13 V to 70 V DC, making it versatile for use in railway and industrial power applications.

Designed with a high isolation voltage of 3 kV DC, this module offers excellent electrical isolation suitable for safety-critical designs. It operates efficiently at 86% efficiency and can endure harsh operating temperatures from -40 °C up to 85 °C. The substantial reliability is demonstrated by its high MTBF of 800,000 hours.

The small form factor and compact dimensions (31.75 mm x 20.32 mm x 10.16 mm) allow for space-saving integration in complex power supply and distribution equipment. The product meets environmental compliance with RoHS standards and has necessary railway application approvals including EN50155 and EN50121-3-2 EMC.

This XP Power DC/DC Converter is widely used in industrial automation, railway signaling, communication equipment, and other applications requiring stable dual voltages in a reliable and compact form.

This DC/DC converter features a wide input voltage range from 13 V to 70 V DC. The converter uses a through-hole DIP-24 package with 24 pins for reliable mounting. Isolation voltage rating of 3 kV DC ensures safety for industrial environments.

Operating temperature range spans from -40 °C to 85 °C, making it suitable for harsh conditions. High efficiency converter with 86% efficiency supports reduced power loss. MTBF (Mean Time Between Failures) is rated at 800,000 hours for enhanced reliability.

Compact dimensions of 31.75 mm length, 20.32 mm width, and 10.16 mm depth fit PCB designs easily. Complies with RoHS standards and includes approvals for railway applications such as EN50155 and EN50121-3-2 EMC. Designed for industrial, railway, and power supply systems requiring stable dual voltage outputs.
