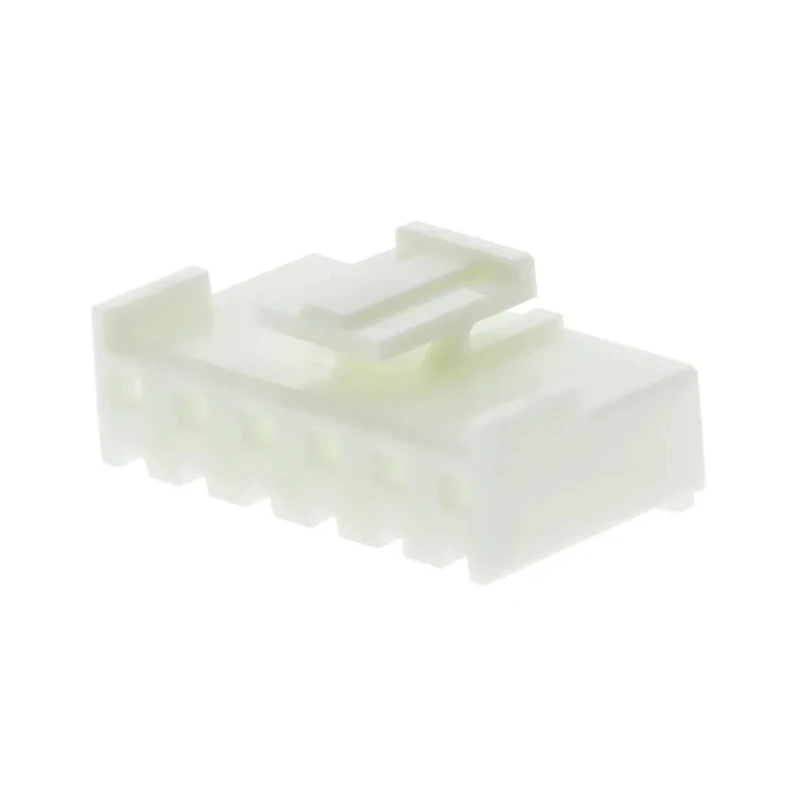

JST VH Female Connector Housing 3.96 mm Pitch 6 Way 1 Row Side Entry VHR-6N(P)

Free Delivery in India | Lowest Global Shipping Charges

JST VH Female Connector Housing 3.96 mm Pitch 6 Way 1 Row Side Entry VHR-6N(P)



Category Connectors Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Orientation	Side Entry
Temperature range	-25 → 85 °C
Length	23.7mm
Model	VHR-6N(P)
Width	10.5mm
Mount Type	Cable
Housing Material	Polyamide
Series	VH
Number of Rows	1
Pitch	3.96mm
For Use With	Compact Power Connector
Number of Contacts	6
Connector Gender	Female

Key Features

The compact polyamide housing provides secure locking contacts and mounting features.
It is designed for cable mount and compatible with JST's compact power connectors.
This connector supports a temperature range from -25 to 85 °C suitable for various industrial uses.
The connector dimensions are 23.7 mm length and 10.5 mm width, facilitating compact PCB designs.
Its natural white color improves visual identification in assemblies.
The VH series offers high current carrying capacity for reliable power and signal transmission.
Side entry orientation allows flexible wiring harness routing.

Product Description

JST VHR-6N(P) female connector housing is a high-quality polyamide connector housing from the VH series designed for wire-to-board connections in industrial and electronic applications.

Featuring a 3.96 mm pitch and 6 contacts in a single row, it provides a reliable and secure electrical connection for compact power connector systems. The cable mount type with side entry orientation ensures easy and effective routing and assembly on printed circuit boards.

This housing supports a wide temperature range of -25 to 85 °C, making it suitable for use in household appliances, industrial equipment, networking, and storage systems that require robust electrical connectors.

With secure locking contacts and a compact form factor measuring 23.7 mm in length and 10.5 mm in width, the natural white polyamide housing meets demanding durability and safety requirements (UL94V-0 rated material).

The VH connector series enables high current carrying capacity, supporting diverse signal and power supply applications in automotive, consumer electronics, and industrial machinery.

The compact polyamide housing provides secure locking contacts and mounting features. It is designed for cable mount and compatible with JST's compact power Connectors. This connector supports a temperature range from -25 to 85 °C suitable for various industrial uses.

The connector dimensions are 23.7 mm length and 10.5 mm width, facilitating compact PCB designs. Its natural white color improves visual identification in assemblies. The VH series offers high current carrying capacity for reliable power and signal transmission.

Side entry orientation allows flexible wiring harness routing.

This JST VH female connector housing VHR-6N(P) is widely used in industrial, manufacturing, electronic components assembly, and HVAC systems demanding reliable wire-to-board connections. Discover more connector housings in the Electronics Components category at EnvMart.
