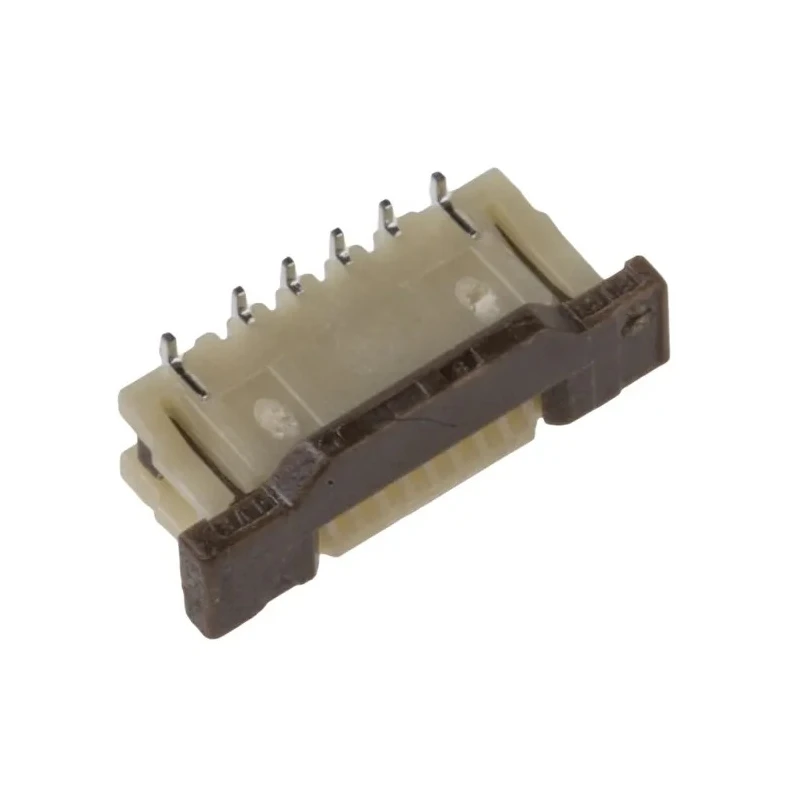

JST FPC Connector 0.5 mm Pitch 10 Way Straight Female Easy-On FFC/FPC Connector Solder Termination 10FLZT-SM1-TF

JST 10FLZT-SM1-TF is a 0.5 mm pitch FPC connector designed for high precision applications in electronics. The 10-way straight female connector utilizes Easy-On FFC/FPC technology with solder termination, ensuring excellent mechanical and electrical performance.

The connector incorporates a zero insertion force (ZIF) mechanism that significantly reduces insertion wear, promoting longevity and reliability in demanding industrial, laboratory, and manufacturing environments.

Featuring a heat resistant polyamide 6T housing, this connector supports surface mount technology (SMT) and is compatible with reflow soldering processes. The staggered solder tails facilitate secure and robust circuit board mounting.

Contact pins are made from phosphor bronze with a tin plating finish, optimizing electrical conductivity and corrosion resistance. The connector is rated for a current of 500 mA and an operating voltage of 50 V AC, suitable for signal and low power electronic connections.

Operating temperature spans from -25°C to +85°C, allowing usage across diverse climatic and industrial conditions. The connector includes a reliable locking mechanism that securely holds the flexible printed circuit (FPC) in place during use.

Applications include electronic equipment, industrial control systems, telecommunications, and instrumentation that require dependable, compact FPC connectors. The connector features a 0.5 mm pitch with 10 female contacts for reliable signal transmission.

It includes a zero insertion force (ZIF) mechanism to minimize wear and extend connector life. Constructed with a heat resistant polyamide 6T housing compatible with SMT reflow soldering. Contact material is phosphor bronze with tin plating for enhanced conductivity and durability.

Designed with a straight orientation and top contact position for ease of assembly. Rated for 500 mA current and 50 V AC voltage, suitable for low power electronic circuits. Operates reliably within a temperature range from -25°C to 85°C.

Includes a locking mechanism to secure flexible printed circuit (FPC) connections firmly. Single-row design with staggered solder tails enables effective PCB mounting. Explore EnvMart’s extensive electronics components category for more FPC Connectors and related connectivity solutions optimized for industrial and commercial applications.
