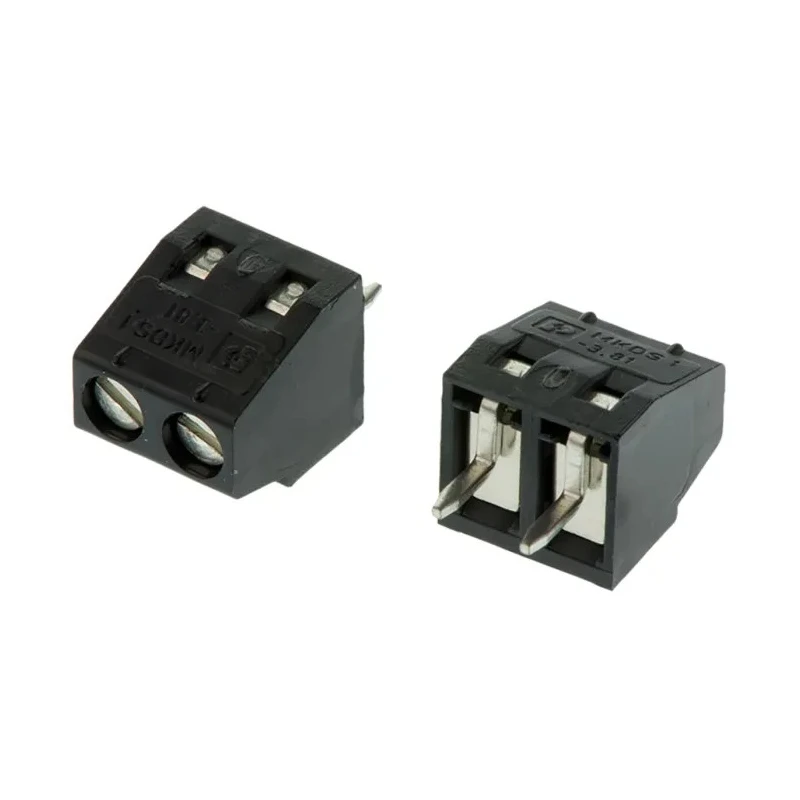

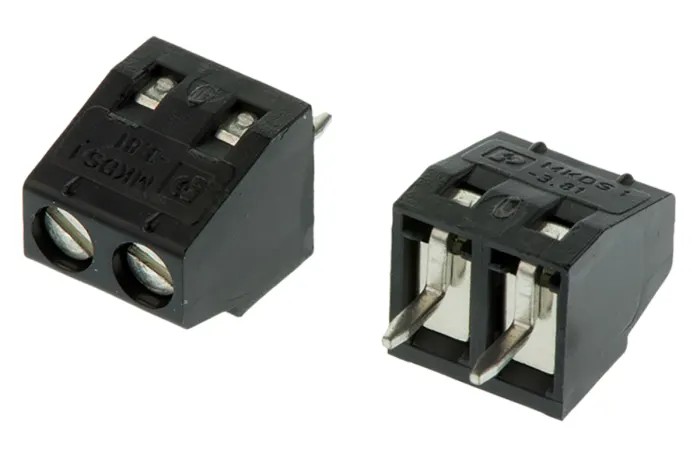

Phoenix Contact PCB Terminal Block 2-Contact 3.81 mm Pitch Through Hole Solder Black Polyamide MKDS 1/ 2-3.81 HT BK 1985823
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 200V |
| Brand | Phoenix Contact |
| Colour | Black |
| Orientation | Straight |
| Current | 13.5A |
| Length | 7.3mm |
| Model | 1985823 |
| Depth | 8.5mm |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Series | MKDS 1/ 2-3.81 HT BK |
| Termination Type | Solder |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Number of Contacts | 2 |
Key Features
- Constructed from durable black polyamide housing for high temperature tolerance.
- Supports current rating of 13.5 A and voltage rating of 200 V.
- Single row configuration ensures compact PCB footprint.
- Compatible with wire sizes ranging 26-16 AWG for flexible applications.
- Provides robust mechanical stability via through-hole fixing method.
- Ideal for industrial PCB applications including machine building and energy technology.
- Reflow solder tolerable with advanced locking to secure cables and prevent wire damage.
Product Description
Phoenix Contact 1985823 MKDS 1/ 2-3.81 HT BK Series PCB Terminal Block is a high-quality electrical connector designed for printed circuit boards. It features a 2-contact arrangement with a 3.81 mm pitch and a single row through-hole solder mount, providing excellent mechanical and electrical performance.
Constructed from robust black polyamide, this terminal block withstands high temperatures, supporting reflow soldering processes up to 245°C. It is rated for a current capacity of 13.5 A and a voltage rating of 200 V, making it suitable for various industrial and manufacturing electronic applications.
The unit supports flexible wire gauges from 26 to 16 AWG, ensuring compatibility with a broad range of wiring setups. The advanced locking mechanism secures cables firmly, reducing the risk of accidental disconnections or wire damage.
Its compact dimensions - 7.5 mm width, 8.5 mm depth, and 7.3 mm length - allow efficient PCB layout utilization. Through-hole mounting offers superior mechanical stability compared to surface mounts, enhancing reliability in environments subjected to vibration or mechanical stress.
Durable polyamide black housing material providing high temperature resistance. Rated for electrical current up to 13.5 amperes and voltage up to 200 volts. Single row design with 2 contacts spaced at 3.81 mm pitch. Compatible with automated reflow soldering processes ensuring efficient assembly.
Suitable for industrial applications such as machine building, systems manufacturing, and energy technology. Advanced locking technology secures wires and maintains long-term connection reliability. Helps simplify PCB assembly through through-hole mounting stability.
Manufactured in Germany, assuring high quality and compliance standards.
This terminal block is part of Phoenix Contact’s comprehensive range of PCB connectors offering reliable and durable solutions for professional electronic component assembly, repair, and prototyping. Its features meet the demanding requirements of electronics manufacturers across industrial, automation, and energy sectors.
Explore additional Phoenix Contact connectors and terminal blocks in EnvMart’s extensive electronics components catalog to complete your PCB connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this terminal block is 200 V.
This model supports a current rating of 13.5 A.
It is compatible with wire sizes ranging from 26 to 16 AWG.
The dimensions are 7.5 mm in width, 8.5 mm in depth, and 7.3 mm in length.
This terminal block uses a through-hole mounting method.
Yes, it is compatible with automated reflow soldering processes, tolerating temperatures up to 245°C.
The housing is constructed from black polyamide, providing high temperature resistance.
This model features 2 contacts in a single row configuration.
The pitch size of this terminal block is 3.81 mm.
This terminal block is manufactured in Germany.
It is ideal for industrial PCB applications, including machine building and energy technology.
The advanced locking mechanism secures cables firmly, preventing accidental disconnections or wire damage.
