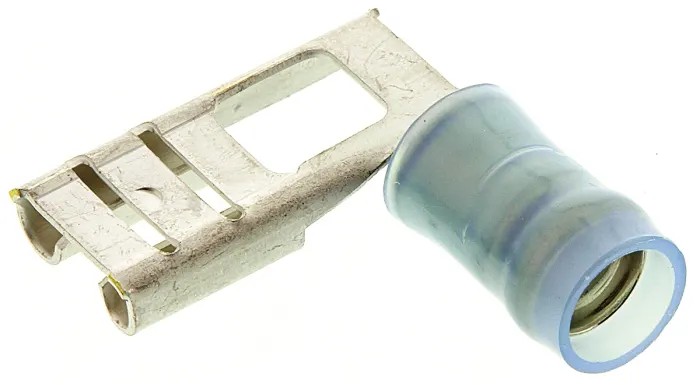

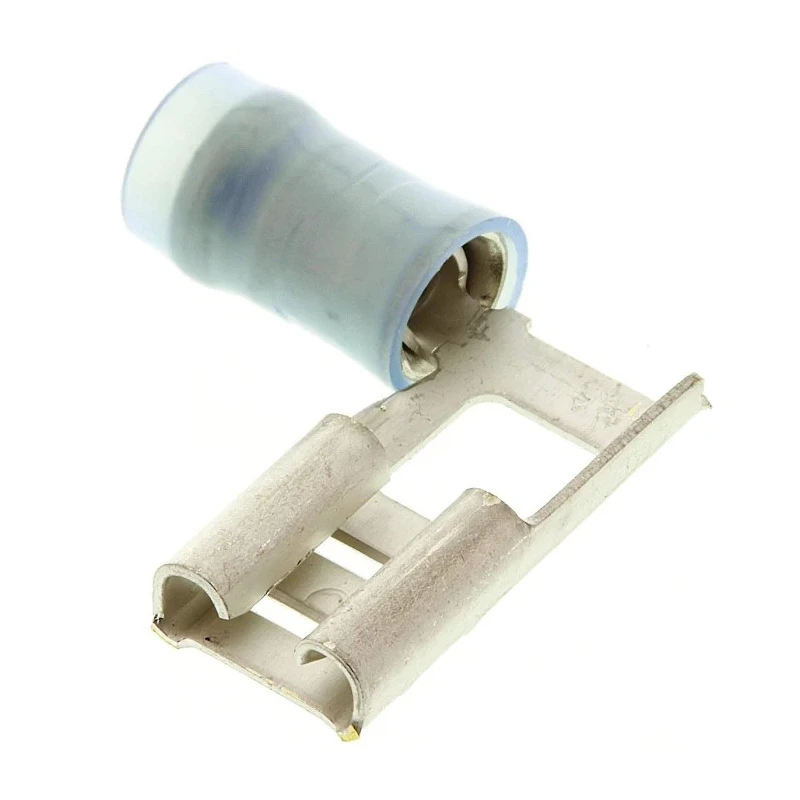

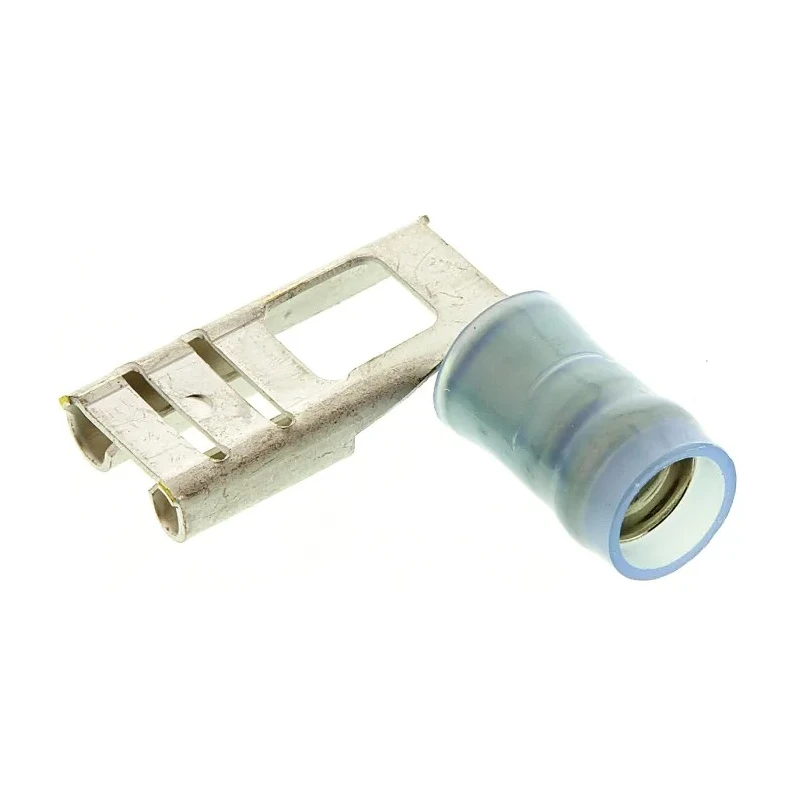

TE Connectivity PIDG FASTON .250 Blue Insulated Female Spade Connector, Crimp, 6.35 x 0.81 mm Tab Size 16 AWG to 14 156666-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Orientation | Angled |
| Model | 156666-1 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 19.3mm |
| Contact Material | Brass |
| Series | PIDG FASTON .250 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.2mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
| PIDG BLUE FLAG 1.5-2.5MMBrand | TE Connectivity |
| Victor Products Blue Crimp Flag TerminalBrand | TE Connectivity |
Key Features
- Insulated blue nylon sleeve ensures secure electrical insulation.
- Precision-formed brass contact with tin plating for enhanced conductivity.
- Crimp termination type offers easy and strong wire connection.
- Angled orientation with 6.35 mm x 0.81 mm tab size for compatibility with standard faston terminals.
- Overall length of 19.3 mm supports compact installations.
- Suitable for wire cross-sections from 1.2 mm² to 2 mm².
- Designed for industrial, automotive, and electronic applications.
- Durable construction with reliable tensile strength after crimping.
Product Description
TE Connectivity 156666-1 PIDG FASTON .250 Blue Insulated Female Spade Connector, Crimp type, features a precision brass contact plated with tin to ensure excellent electrical conductivity and resistance to corrosion. The connector includes a blue nylon insulated sleeve, providing strong electrical insulation and mechanical protection for wire connections.
This female spade connector is angled with a tab size of 6.35 mm width and 0.81 mm thickness, compatible with standard .250 quick disconnect applications. It supports wire sizes ranging from 16 AWG to 14 AWG, with a minimum cross-sectional area of 1.2 mm² up to 2 mm², making it adaptable for a variety of wiring tasks.
Its overall length of 19.3 mm allows for easy installation in confined spaces, and the crimp termination ensures a secure and durable connection, reinforced by serrations within the barrel that provide maximum contact and tensile strength.
This PIDG insulated faston Spade Connector is widely used in industrial electronics, automotive wiring harnesses, household appliances, and control panel assemblies. It enables quick and reliable assembly and disassembly of electrical connections in manufacturing and maintenance operations.
Insulated blue nylon sleeve for electrical safety. Crimp type termination for strong wire retention. Compatible with 6.35 mm x 0.81 mm blade sizes. Suitable for 16 AWG to 14 AWG wire sizes. Precision brass contacts plated with tin.
Angled orientation for space-efficient layout. Overall length of 19.3 mm. PIDG FASTON .250 series compliance. Ideal for industrial, automotive, and electronic applications.
Explore our extensive range of wire terminals and splices at EnvMart for reliable connectivity solutions designed to meet stringent industrial standards and enhance electrical system performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes ranging from 16 AWG to 14 AWG, with a minimum cross-sectional area of 1.2 mm² and a maximum of 2 mm².
The tab size for this connector is 6.35 mm in width and 0.81 mm in thickness, making it compatible with standard .250 quick disconnect applications.
The overall length of this connector is 19.3 mm, which allows for easy installation in confined spaces.
It features a crimp termination type, ensuring a secure and durable connection reinforced by serrations within the barrel.
The contact is made of brass and is plated with tin for enhanced conductivity, while the insulation is made of nylon for electrical safety.
This model has an angled orientation, which helps in creating a space-efficient layout for wiring.
It is suitable for use in industrial electronics, automotive wiring harnesses, household appliances, and control panel assemblies.
The connector features an insulated blue nylon sleeve that provides strong electrical insulation and mechanical protection.
The contact is plated with tin, which enhances its conductivity and resistance to corrosion.
The country of origin for this connector is India.
This connector is a female spade connector, designed for compatibility with male terminals.
This model is part of the PIDG FASTON .250 series, which is known for its reliable performance in electrical connections.
