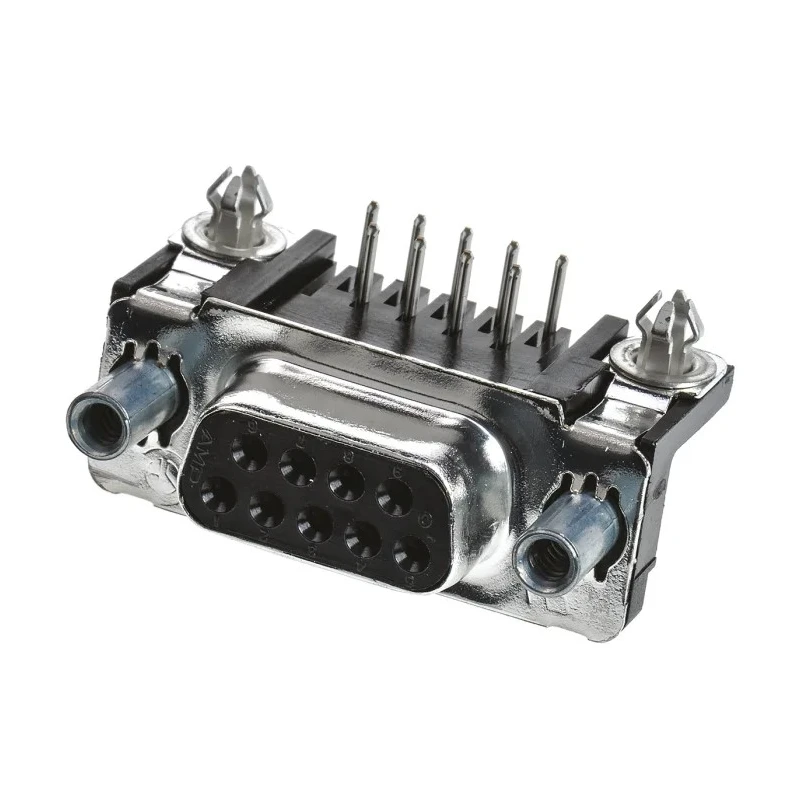

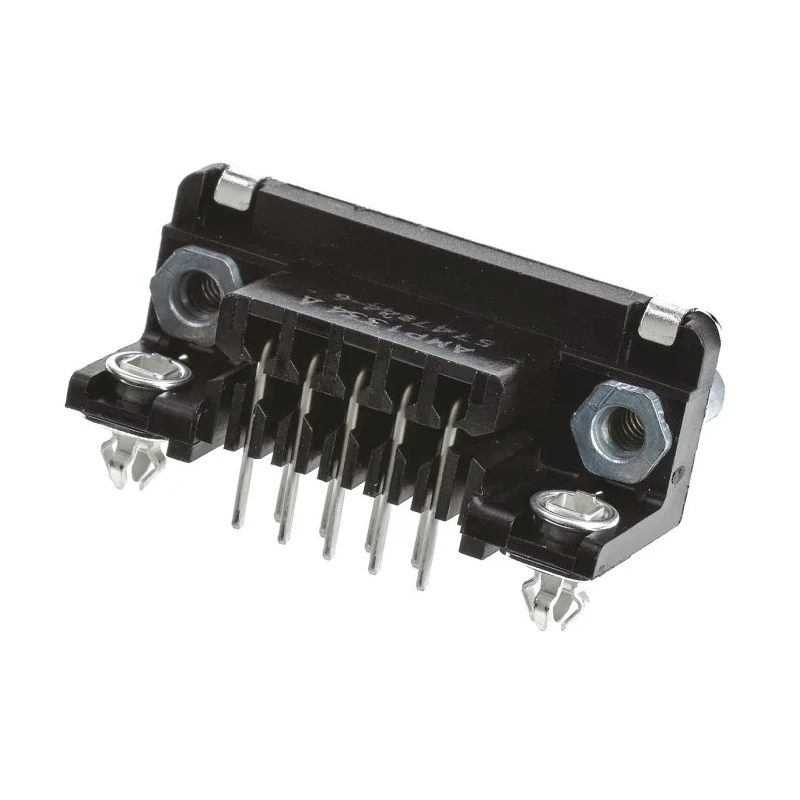

TE Connectivity AMPLIMITE HD-20 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 5747844-6

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPLIMITE HD-20 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 5747844-6

Name: TE Connectivity AMPLIMITE HD-20 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 5747844-6
Brand: TE Connectivity
SKU: 186248
Price: 6.08 USD
Availability: InStock



Category D-Sub Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	1kV
Brand	TE Connectivity
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Phosphor Bronze
Series	AMPLIMITE HD-20
Mounting Hardware	4 to 40 UNC Screw Lock
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.74mm
Contact Plating	Gold over Nickel
Number of Contacts	9
Contact Gender	Female
Connector Gender	Female
D-Sub Shell Size	D

Key Features

Features 9 contacts supporting up to 3A current for robust connectivity.
Right angle orientation suitable for PCB mounting applications.
Mount type is through hole with 4 to 40 UNC screw locks for secure fixing.
Constructed with thermoplastic housing and phosphor bronze contacts plated in gold over nickel.
Operates reliably from -55°C up to 105°C temperature range.
Offers a pitch of 2.74 mm and withstands voltage up to 1kV.
Designed for female connector gender and includes tin-plated brass eyelets and zinc-plated female screwlocks.
Compliant with AMPLIMITE HD-20 series standards and suitable for industrial and electronic applications.

Product Description

TE Connectivity 5747844-6 AMPLIMITE HD-20 9 Way Right Angle Through Hole D-Sub Connector with 2.74 mm pitch offers a highly reliable connection solution for electronic assemblies and industrial equipment.

This connector features 9 female contacts made of phosphor bronze, plated in gold over nickel to ensure excellent conductivity and resistance to corrosion. It can carry currents up to 3A and withstand voltages up to 1kV, suitable for demanding electronic environments. The right angle orientation optimizes the PCB layout, with through-hole mounting type providing mechanical stability.

The housing is constructed of durable thermoplastic material compliant with 94V-0 flammability standards ensuring safety in operation. The connector includes 4 to 40 UNC screw locks made of zinc-plated female screws for secure mating and reliable connectivity under vibration and environmental stress.

Operating temperature ranges from -55°C to 105°C, making it fit for diverse industrial, laboratory, automotive, and manufacturing environments. Its 2.74 mm pitch ensures precise contact spacing required for robust signal and power transmission. Tin-plated brass eyelets and zinc-plated female screwlocks add mechanical strength and corrosion resistance.

The AMPLIMITE HD-20 series is a trusted family of D-subminiature connectors ideal for power connectors in industrial automation, instrumentation, and electronic equipment manufacturing. These connectors optimize assembly efficiency while enhancing connection integrity.

Features 9 contacts with 3A current rating for reliable power and signal transmission. Right angle orientation and through-hole mount for stable PCB integration. High-quality thermoplastic housing meets 94V-0 flammability rating for safety.

Gold over nickel plating on phosphor bronze contacts provides corrosion resistance and conductivity. Operates across wide temperatures from -55°C to 105°C for harsh environments. Incorporates 4 to 40 UNC screw locks ensuring secure connector mating.

Suitable for industrial, laboratory, automotive, and manufacturing applications. Choose TE Connectivity AMPLIMITE HD-20 5747844-6 for specialized electronic component connectivity. Explore more electronic connectors and power connectors at EnvMart for optimized industrial solutions.
