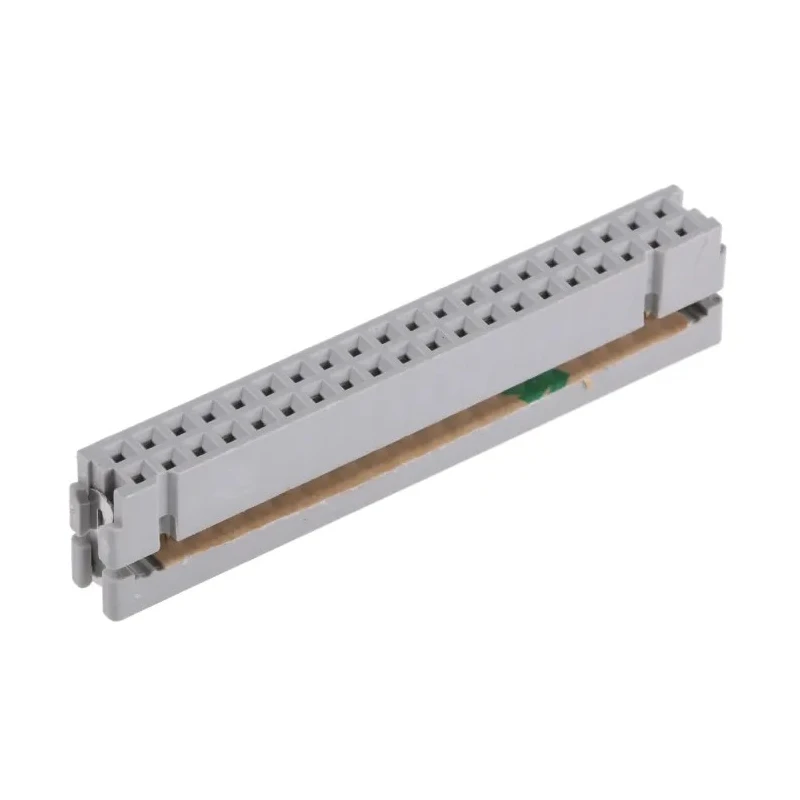

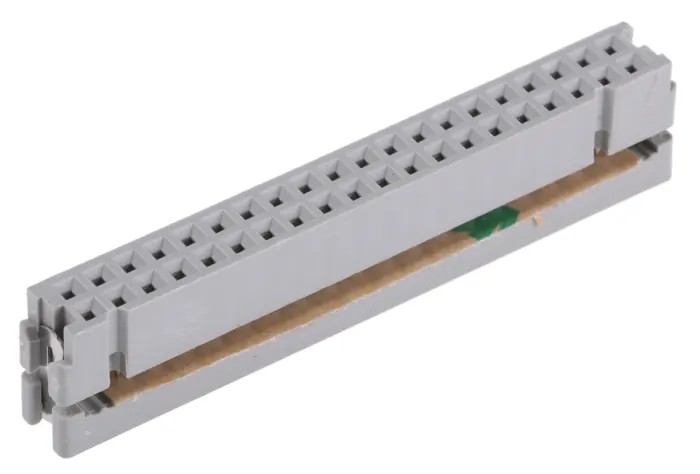

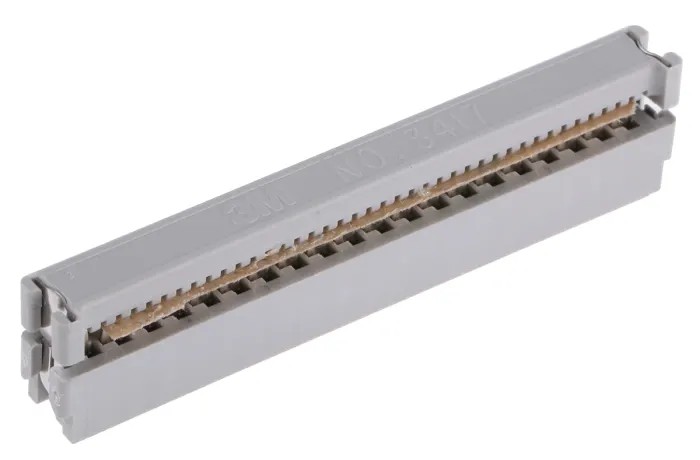

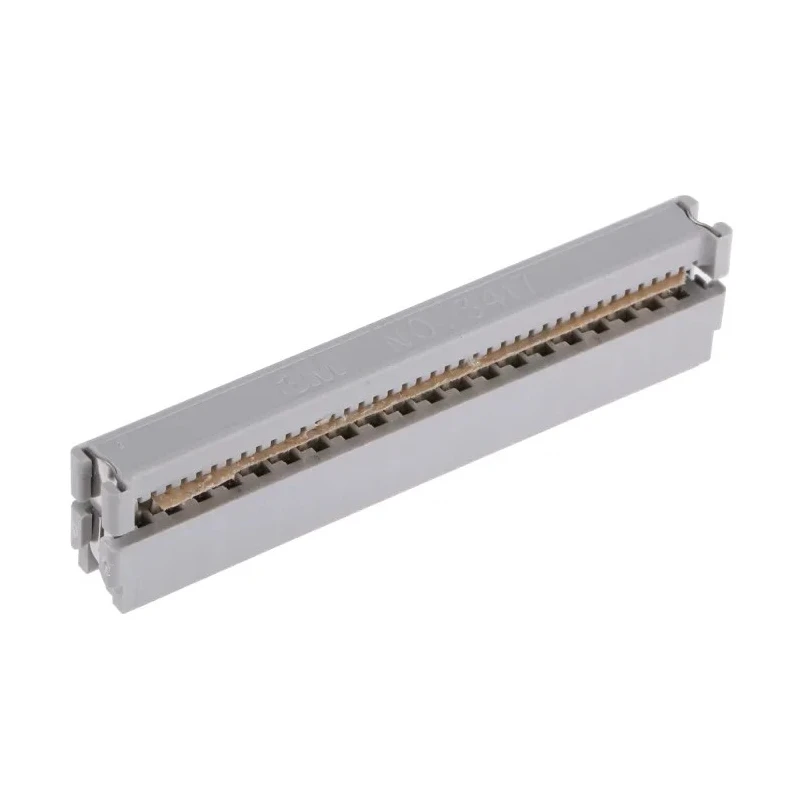

3M 40-Way Shrouded IDC Connector Female Cable Mount Right Angle 1kV AC, Gold over Nickel 3417-6000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV ac |
| Brand | 3M |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | 3000 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| 3M 40-Way IDC Connector Female for Cable, 2 RowBrand | 3M |
Key Features
- The connector features 40 contacts arranged in 2 rows for efficient wiring.
- It supports a current rating of 1A and operates between -55°C and 105°C.
- Gold over nickel plating ensures robust corrosion resistance and excellent conductivity.
- Right angle orientation and cable mount type enable versatile installation.
- Constructed with durable polybutylene terephthalate housing and copper alloy contacts.
- Offers easy insulation displacement connection (IDC) for quick cable termination.
- Includes military dual slot polarization and positive locking metal 'J' clips for secure mating.
- Suitable for industrial, automation, medical, communications, and networking applications.
Product Description
3M 3417-6000 is a high-quality 40-Way shrouded insulation displacement connector (IDC) designed for cable mounting with a right angle orientation. Rated for 1kV AC voltage and supporting a current of 1A, this connector delivers reliable and efficient mass termination for ribbon cables in harsh industrial environments.
The connector comprises 40 female contacts arranged in 2 rows with a 2.54 mm pitch, compatible with 26 AWG and 28 AWG solid and stranded cables. Its contacts feature gold plating over nickel, providing excellent electrical conductivity along with corrosion and wear resistance. The copper alloy contact material and polybutylene terephthalate housing ensure durability and long service life.
Featuring military dual slot polarization, the 3417-6000 prevents misconnection by ensuring accurate mating with headers. Positive locking metal 'J' clips secure the connector’s cover, which includes transfer adhesive to keep the ribbon cable precisely aligned, resulting in high-yield terminations. Optional strain reliefs and pull tabs are available separately to reduce mechanical stress during unplugging.
The connector’s insulation displacement contacts enable quick, no-prep cable terminations, simplifying assembly and maintenance. Operating temperature ranges from -55°C to 105°C, suitable for diverse industrial and electronic applications.
Widely used in factories, automated systems, instrumentation, medical devices, communication equipment, and computer peripherals.
This 3M IDC Connector represents a trusted solution for rugged, reliable wiring interconnections meeting MIL and IEC standards. Explore more 3M connectors and electronic components at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for 1kV AC voltage, making it suitable for high-voltage applications.
It supports a current rating of 1A, which is important for ensuring safe and effective operation in various applications.
The operating temperature range for this connector is from -55°C to 105°C, allowing it to function effectively in extreme environments.
This model features 40 female contacts arranged in 2 rows, which facilitates efficient wiring and connection.
The housing is made of polybutylene terephthalate, while the contacts are constructed from copper alloy and feature gold over nickel plating for enhanced conductivity.
The pitch of the contacts is 2.54 mm, which is standard for IDC connectors and ensures compatibility with various ribbon cables.
It uses insulation displacement connection (IDC) for quick and efficient cable terminations, simplifying the assembly process.
The connector has a right angle orientation, which allows for versatile installation in tight spaces.
Yes, it features positive locking metal 'J' clips to secure the connector’s cover, ensuring a stable connection during use.
It is suitable for various applications including industrial, automation, medical, communications, and networking systems.
The connector is manufactured in India, which is relevant for understanding its origin and potential compliance with local standards.
