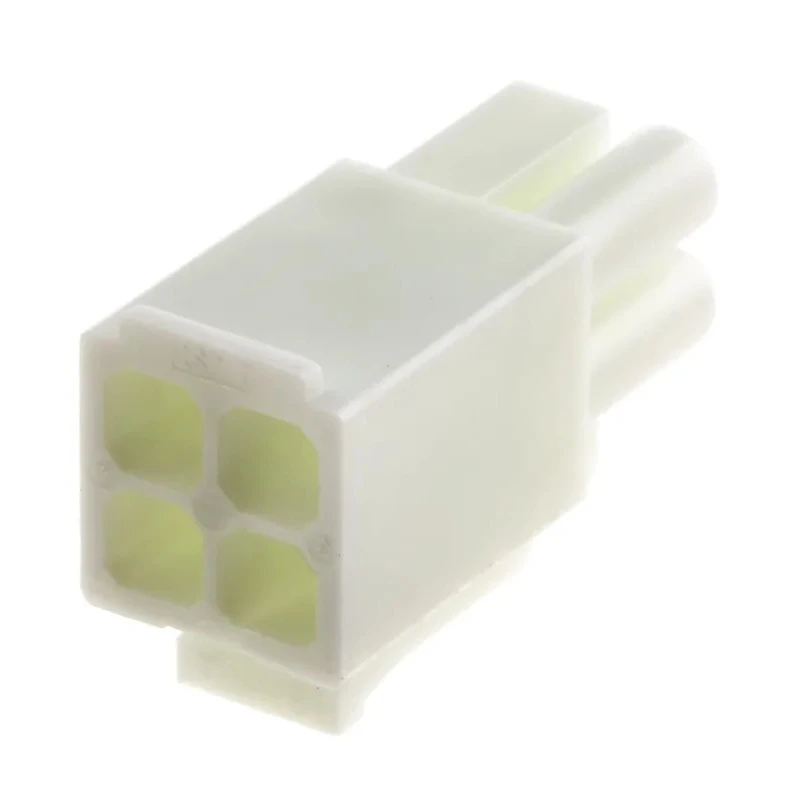

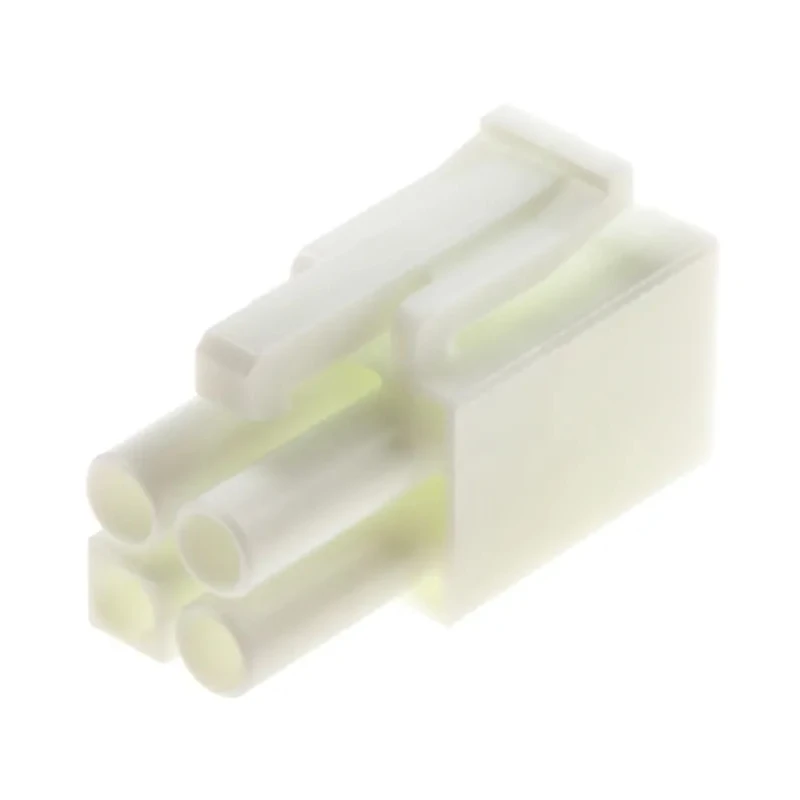

JST EL Male Connector Housing 4.5 mm Pitch 4 Way 2 Row Straight ELP-04NV

Free Delivery in India | Lowest Global Shipping Charges

JST EL Male Connector Housing 4.5 mm Pitch 4 Way 2 Row Straight ELP-04NV



Category Connector Housing Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Orientation	Straight
Length	10.3mm
Model	ELP-04NV
Mount Type	Cable
Housing Material	Nylon
Series	EL
Interfaces	lances ensure the contact is correctly installed and locked in
Number of Rows	2
Pitch	4.5mm
For Use With	4.5 mm Disconnectable Crimp Wire-to-Wire Connector
Number of Contacts	4
Connector Gender	Male

Key Features

The connector housing is made of durable nylon for reliable insulation.
It supports 4 contacts organized in 2 rows, suitable for wire-to-wire connections.
Its 4.5 mm pitch ensures consistent spacing for secure mating.
Locking lances guarantee proper contact installation and retention.
The straight orientation facilitates easy cable routing and connections.
Designed for use with 4.5 mm disconnectable crimp wire-to-wire connectors.
This connector complies with UL, CSA, and TUV standards for electrical safety.
Compact length of 10.3 mm suits tight electronics applications.

Product Description

JST ELP-04NV male connector housing is designed for reliable wire-to-wire electrical connections with a 4.5 mm pitch and 4 contacts distributed across 2 rows in a straight orientation suitable for cable mounting.

This connector housing is constructed from high-quality nylon providing durability and excellent insulation properties. The EL series connector housings by JST ensure a high level of secure contact mating due to the locking lances that firmly fix contacts in place to prevent disconnection.

With a compact length of 10.3 mm, this male connector housing is ideal for use in constrained spaces of industrial equipment, telecommunications, instrumentation, automotive electronics, and power distribution systems. It supports 4 ways of contacts which meet the precision requirements in electronic assembly.

The connector is compatible with 4.5 mm disconnectable crimp wire-to-wire connectors, enabling easy installation and maintenance. It meets electrical safety standards including UL, CSA, and TUV, ensuring compliance with stringent industrial requirements.

The natural nylon color housing provides resistance to environmental factors and mechanical stress making it suitable for industrial, commercial, and manufacturing environments. The connector housing is made of durable nylon for reliable insulation.

Supports 4 contacts arranged in 2 rows for efficient wiring. 4.5 mm pitch ensures precise spacing for secure mating. Locking lances guarantee correct contact installation and retention. Straight orientation facilitates straightforward cable connections.

Compatible with 4.5 mm disconnectable crimp wire-to-wire connectors. Conforms with UL, CSA, and TUV electrical safety standards. Compact 10.3 mm length fits into constrained spaces. Manufactured in Japan ensuring high-quality standards.

This JST EL series male connector housing is widely used across electronics manufacturing, automotive, industrial machinery, communications gear, and power distribution systems where reliability and quality connector solutions are essential.
