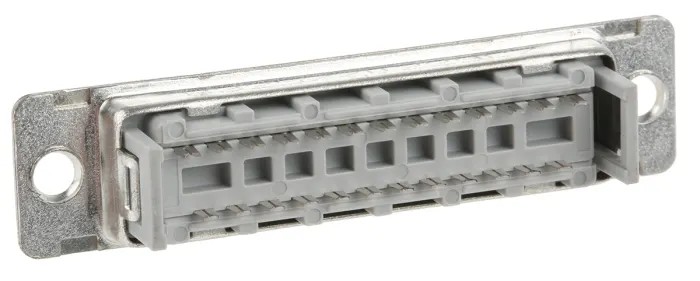

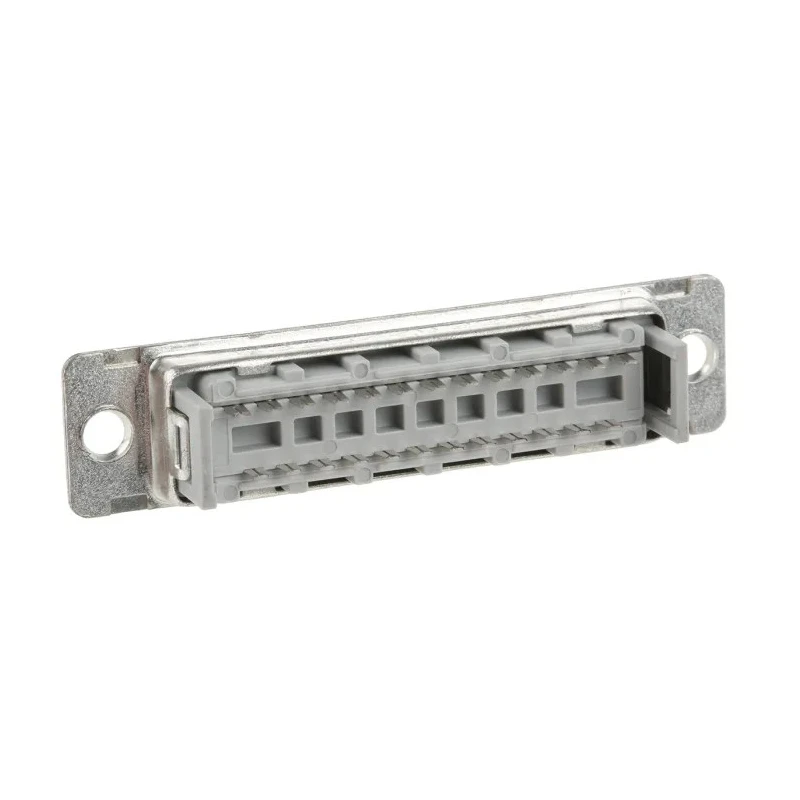

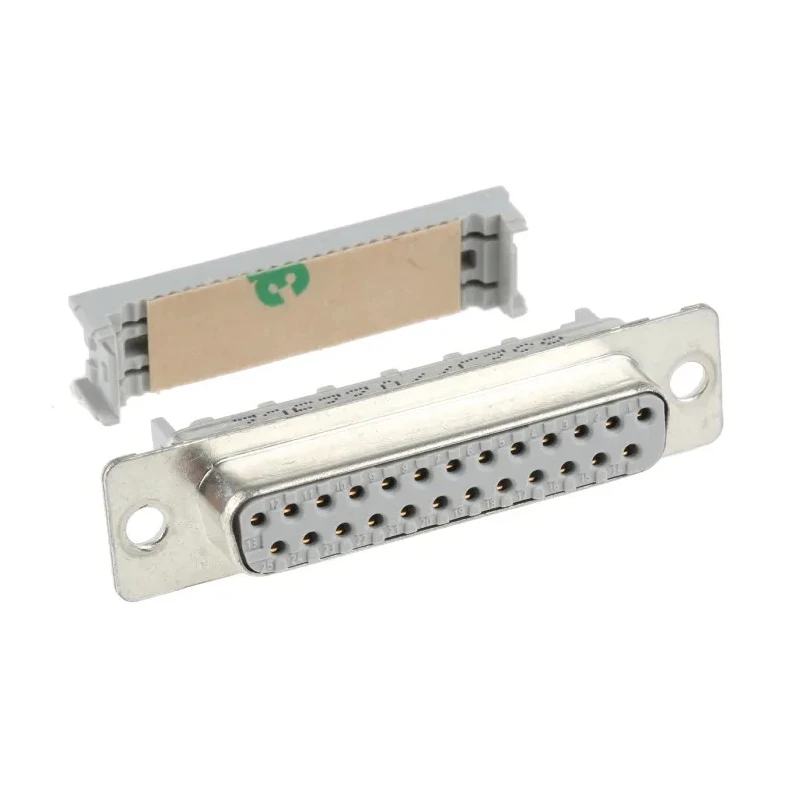

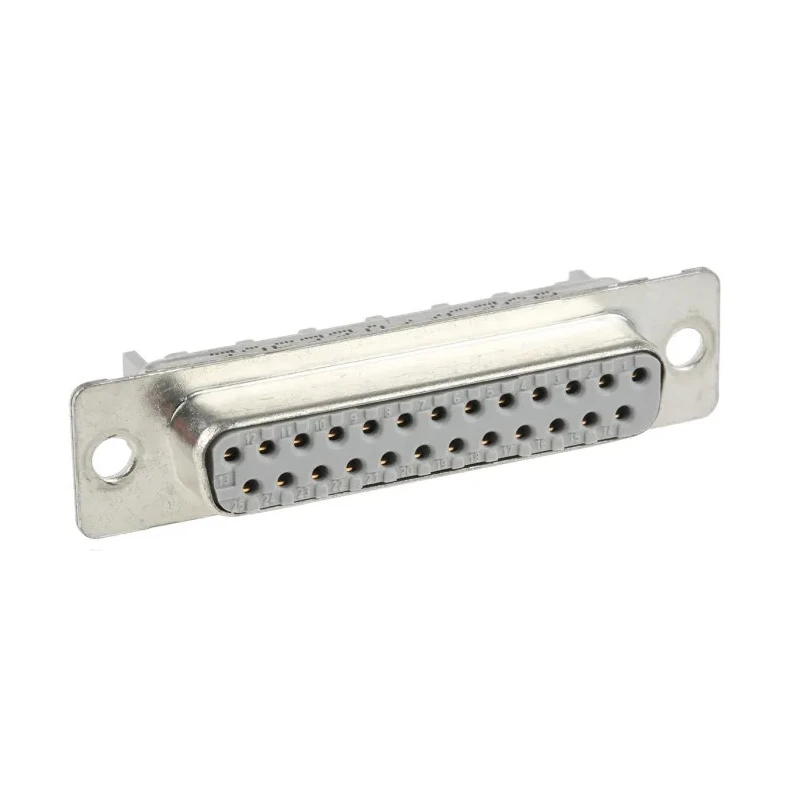

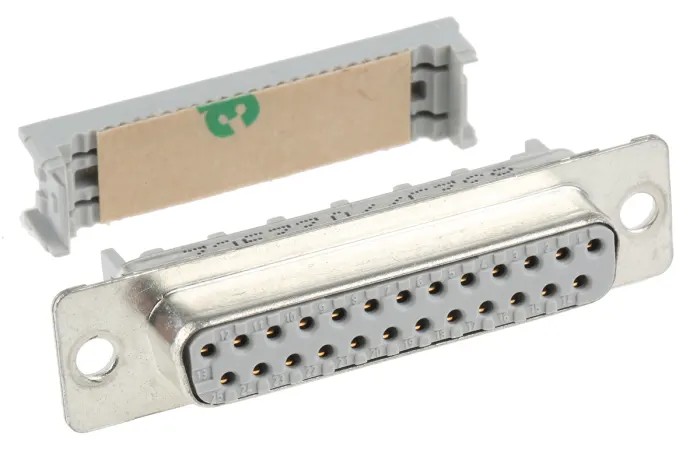

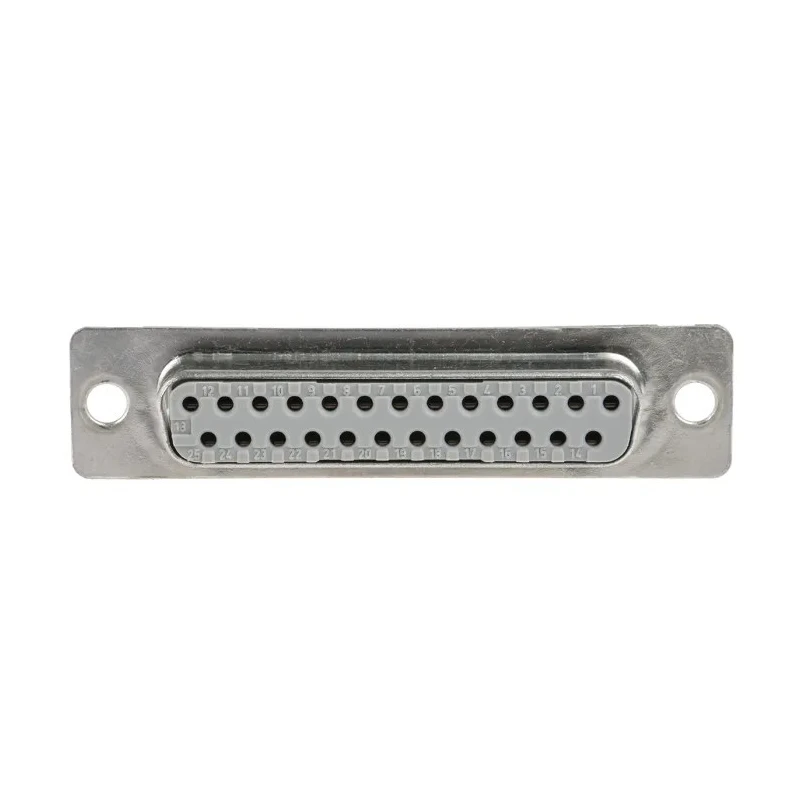

3M 8300 25 Way Right Angle 2.74 mm Pitch Cable D-Sub Connector Female 8325-6009

Free Delivery in India | Lowest Global Shipping Charges

3M 8300 25 Way Right Angle 2.74 mm Pitch Cable D-Sub Connector Female 8325-6009



Category D-Sub Connector Brand 3M Condition New

Specifications

Country of Origin	Czech Republic
Brand	3M
Orientation	Right Angle
Current	1A
Mount Type	Cable
Housing Material	Steel
Contact Material	Copper Alloy
Series	8300
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.74mm
Standards/Approvals	UL 94V-0, RoHS
Contact Plating	Gold over Nickel
Number of Contacts	25
Contact Gender	Female
Connector Gender	Female
25 Way IDC D-sub Connector, Socket, PET ShellBrand	NEUTRAL

Key Features

Features 25 contacts for comprehensive connectivity.
Right angle orientation facilitates compact cable routing.
Housing made from robust steel for durability.
Contacts are gold-plated copper alloy for excellent conductivity.
Termination type is Insulation Displacement Contact (IDC) ensuring secure attachment.
Suitable for operation temperature range from -55°C to 105°C.
Meets industry standards including UL 94V-0 and RoHS compliance.
Ideal for industrial and computing equipment requiring dependable D-Sub connectors.

Product Description

3M 8325-6009 is a 25 Way Right Angle Cable D-Sub Connector Female, featuring a 2.74 mm pitch designed for heavy-duty electronic and industrial use. This connector is engineered for environments that demand secure and robust cable connections.

The connector features a sturdy steel housing providing mechanical strength and shielding against electromagnetic interference. The 25 copper alloy contacts are plated with gold over nickel for superior conductivity and corrosion resistance, ensuring optimal electrical performance over extended periods.

Operating within a temperature range of -55°C to 105°C, this connector is suitable for a wide variety of applications including industrial computers, medical equipment, and other heavy-duty electronics. The right angle orientation allows for efficient cable management in constrained spaces. The IDC termination method provides secure and reliable cable termination.

Built to meet UL 94V-0 flammability standards and RoHS compliance, the connector offers safe and environmentally responsible design. Features 25 contacts for comprehensive connectivity. Right angle orientation facilitates compact cable routing.

Housing made from robust steel for durability. Contacts are gold-plated copper alloy for excellent conductivity. Termination type is Insulation Displacement Contact (IDC) ensuring secure attachment. Suitable for operation temperature range from -55°C to 105°C.

Meets industry standards including UL 94V-0 and RoHS compliance. Ideal for industrial and computing equipment requiring dependable D-Sub Connectors. Connector gender is female for cable connection applications. Designed for Class II performance with metal shell for shielding and grounding.

This connector is commonly used in industrial, laboratory, manufacturing, and electronic system applications where durable and reliable connections are vital. It is compatible with tooling stock numbers 120-6962 and 192-7748 and can be used with 3M colour-coded ribbon cables such as stock number 120-8485.
