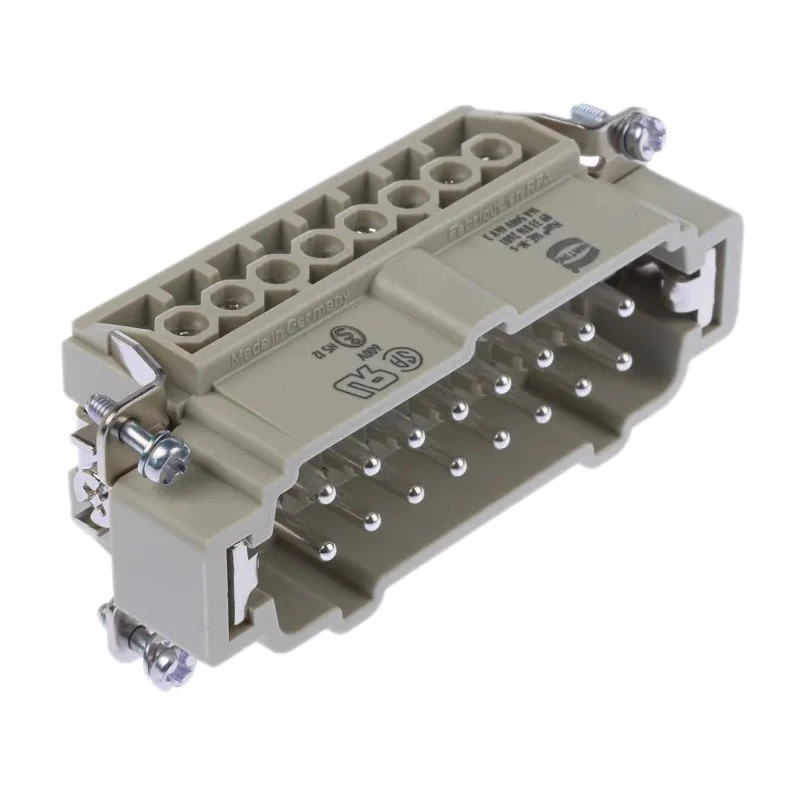

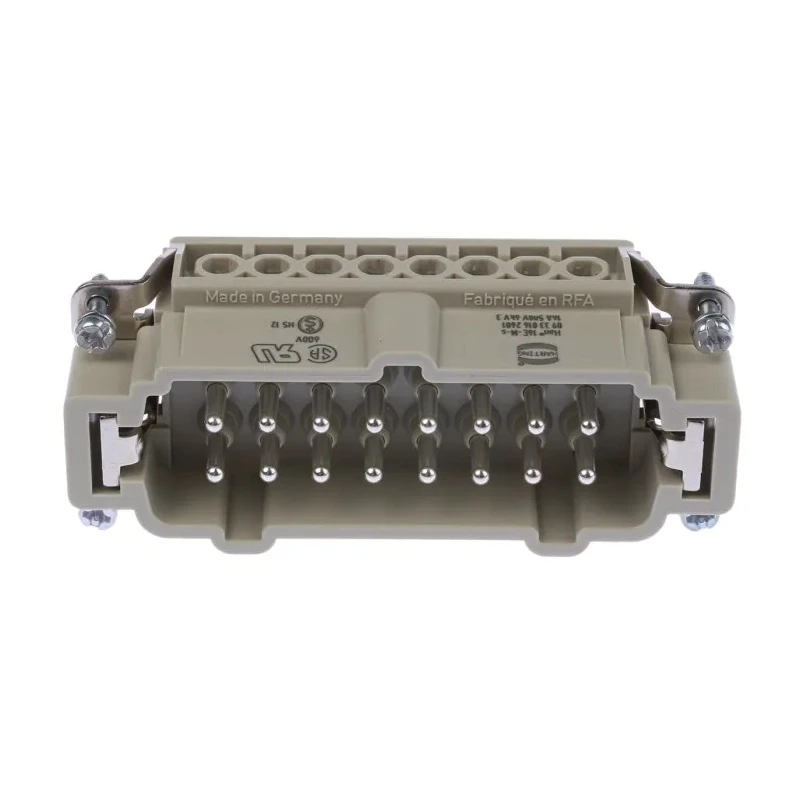

HARTING Heavy Duty Power Connector Insert 16A 500V Han E Series Male 16 Contacts 09330162601
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han E |
| Thread Size | M3 x 10 |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 16P+E |
| Contact Plating | Silver |
| Number of Contacts | 16 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.75mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Designed for high current capacity of 16 A enabling efficient power transfer.
- 500 V voltage rating ensures safe operation in demanding industrial environments.
- Features screw termination method for secure and reliable wire connections.
- Constructed with copper alloy and silver plating for enhanced conductivity and corrosion resistance.
- Includes 16 contacts arranged in 2 rows for complex electrical setups.
- Accepts wire sizes ranging from 0.75 mm² up to 2.5 mm² for versatile installations.
- Suitable for use in industrial automation and mechanical machinery power connections.
- Male connector insert compatible with Han E Series heavy duty connectors.
Product Description
HARTING 09330162601 Heavy Duty Power Connector Insert is engineered for demanding industrial and electronic applications, providing a reliable solution for power distribution systems requiring up to 16 A current and 500 V voltage ratings. This male connector insert from the Han E Series supports complex electrical configurations with 16 contacts arranged in 2 rows.
The screw termination design guarantees a secure and robust connection to wires sized between 0.75 mm² and 2.5 mm², facilitating ease of installation and maintenance. Its copper alloy contacts, enhanced with silver plating, optimize electrical conductivity and reduce corrosion risks, ensuring longevity and dependable performance.
This connector insert is widely used in industrial automation systems, electrical panels, and mechanical power machinery where precise and secure power delivery is critical. The device's straight orientation and cable mount type afford versatile installation options in varied configurations.
Manufactured in Germany, it adheres to strict quality standards, although no specific approvals are declared. The insert must not be mated or unmated under electrical load to prevent damage, and polarization is recommended when multiple connectors are used in series to avoid misconnection.
High current capacity of 16 A for efficient power transfer. Voltage rating of 500 V suitable for demanding electrical environments. Screw termination method ensures secure wire connections. Copper alloy contacts with silver plating improve conductivity and corrosion resistance.
16 contacts arranged in 2 rows support complex wiring needs. Accepts wire sizes from 0.75 mm² to 2.5 mm². Straight orientation and cable mount design for flexible installation. Compatible with Han E Series heavy duty power connectors.
Manufactured in Germany to high-quality standards. Recommended for industrial automation, machinery, and electrical panels. Explore more products in the Power Connectors category on EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert has a current rating of 16 A and a voltage rating of 500 V, making it suitable for demanding industrial applications.
It features 16 contacts arranged in 2 rows, allowing for complex electrical configurations.
This connector insert accepts wire sizes ranging from 0.75 mm² to 2.5 mm², providing versatility for different installations.
It utilizes a screw termination method, ensuring secure and reliable connections to wires.
The contacts are made from copper alloy and are silver plated to enhance conductivity and reduce corrosion risks.
This model has a straight orientation and is designed for cable mounting, allowing flexible installation options.
It is manufactured in Germany, adhering to strict quality standards.
It is widely used in industrial automation systems, electrical panels, and mechanical power machinery for reliable power delivery.
The pole format is 16P+E, indicating it has 16 contacts and an earth connection.
It is recommended that the connector should not be mated or unmated under electrical load to prevent damage, and polarization is advised when used in series.
This connector insert belongs to the Han E Series, which is designed for heavy-duty power connections.
