HARTING Heavy Duty Power Connector Insert 16A 500V Han E Series Male 10 Contacts 09330102601

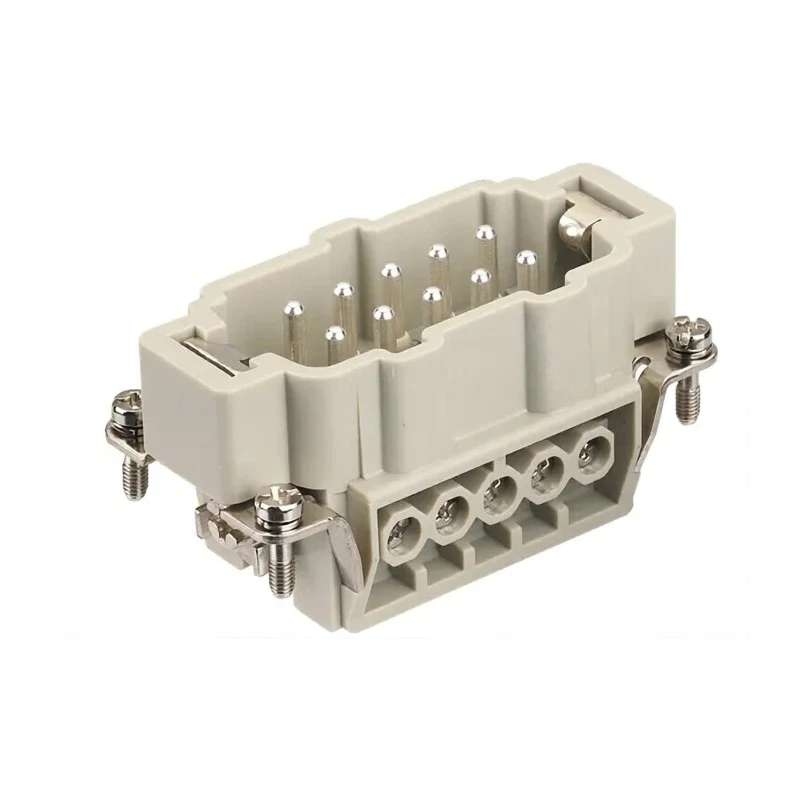

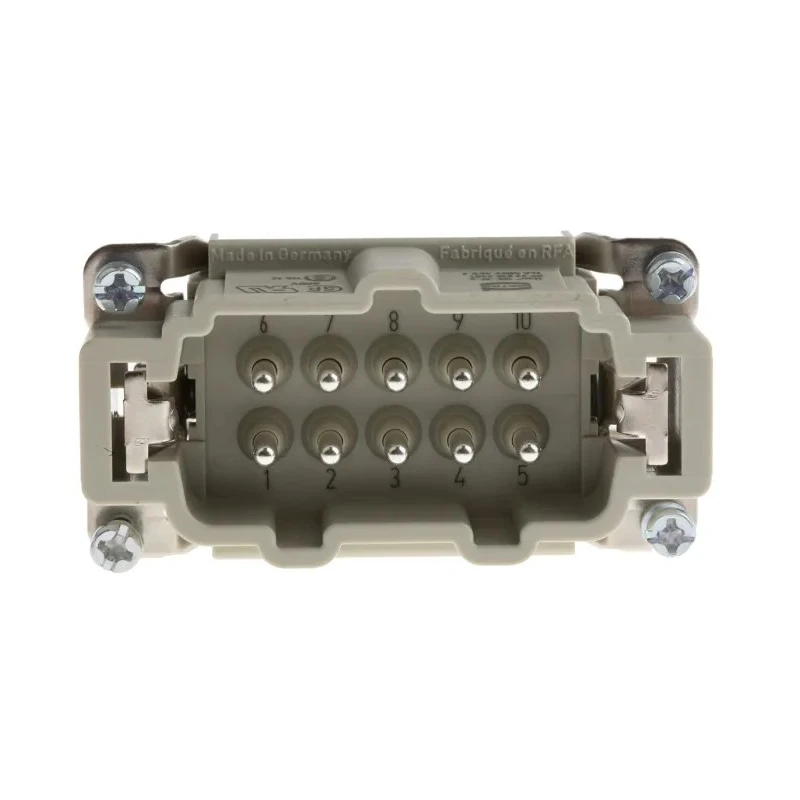

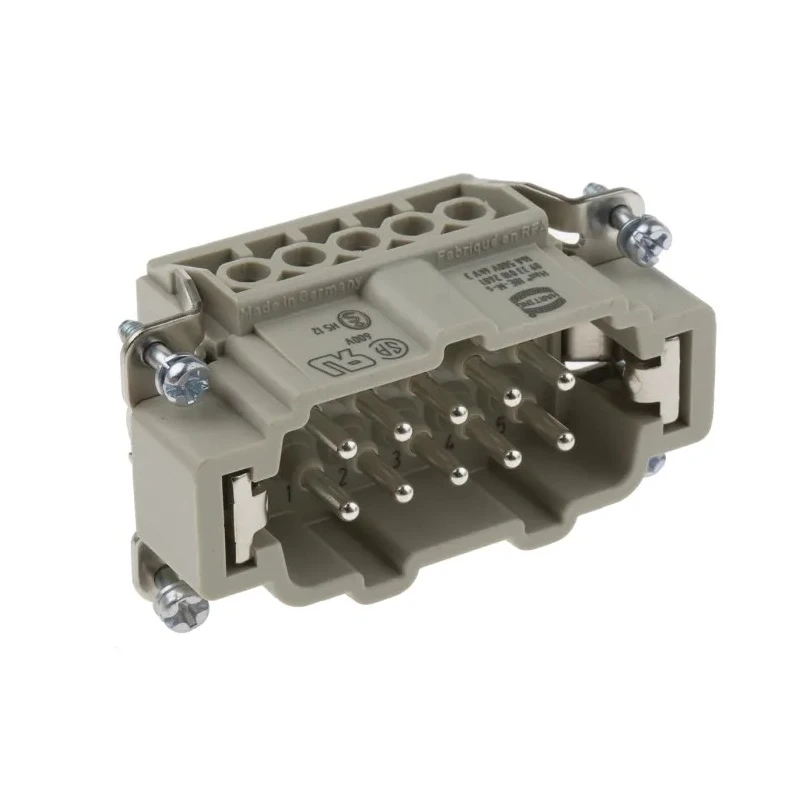

HARTING 09330102601 Heavy Duty Power Connector Insert is a high-quality male connector insert from the Han E Series designed for robust industrial power distribution applications. Rated at 16 A current and 500 V voltage, this insert provides a 10+E pole arrangement with straight orientation and screw termination, ideal for demanding electrical systems.

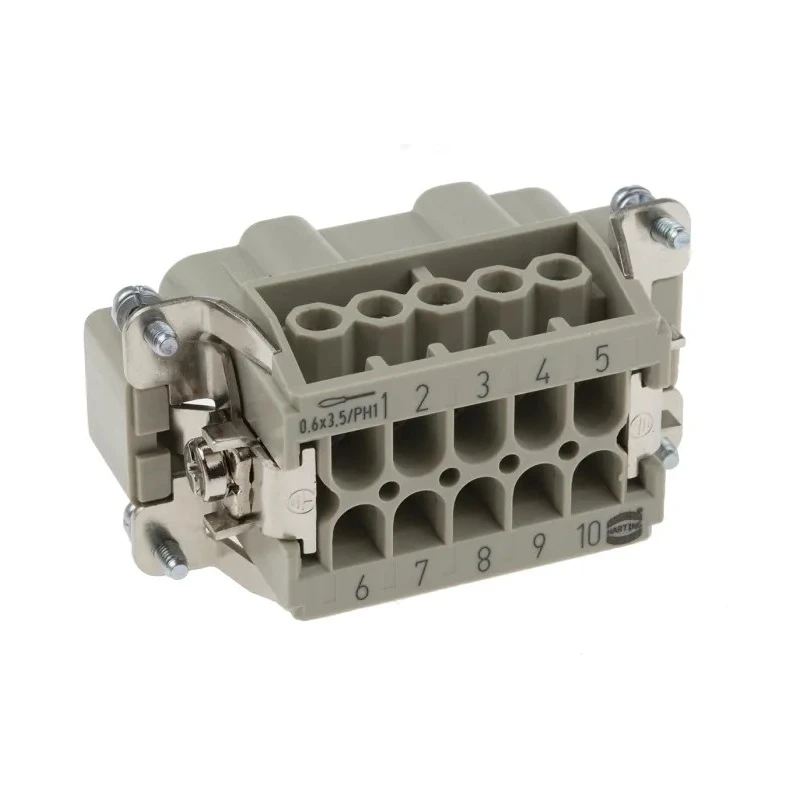

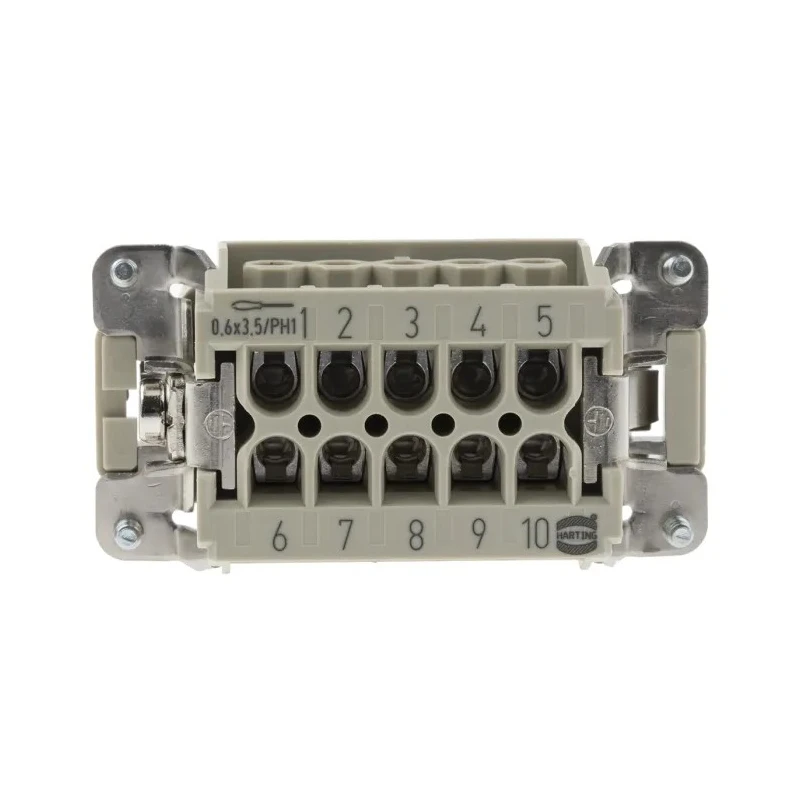

The connector accepts conductor sizes ranging from 0.75 mm² up to 2.5 mm², making it compatible with various cable gauges (AWG18 to AWG14). The silver-plated copper alloy contacts minimize electrical resistance and ensure reliable electrical performance. With a thread size of M3 x 10 and wire protection features, the screw terminals provide a secure connection and easy installation using a slotted or Phillips screwdriver.

This insert is engineered to withstand at least 500 mating cycles, offering durability in applications requiring frequent service and maintenance. It operates safely within an impulse voltage rating up to 6 kV, with insulation resistance exceeding 10¹⁰ Ω and contact resistance less than or equal to 1 mΩ. The operating temperature range extends from -40 °C to +125 °C.

Common applications include motor control systems, drive panel power connections, switchgear wiring, distribution modules, and machine tool power feeds. The product is designed for use with compatible heavy-duty cable-mount housings in factory automation and electrical distribution setups.

Manufactured in Germany, the 09330102601 meets strict quality and reliability standards but does not carry specific approvals. Users should ensure connectors are not mated or unmated under electrical load and maintain proper polarization to avoid incorrect connections.

Robust 16A current and 500V voltage rating for heavy-duty power applications. Compatible with conductor sizes from 0.75 mm² to 2.5 mm² to support varied wire gauges. Silver-plated copper alloy contacts provide low electrical resistance and high conductivity.

Screw termination with wire protection ensures secure, durable cable connections. Supports a minimum of 500 mating cycles for long-term reliable use. Impulse voltage withstands up to 6 kV with high insulation resistance.

Temperature tolerant from -40 °C to +125 °C for industrial environments. Designed for motor control, switchgear, distribution modules, and factory automation. Manufactured in Germany to meet demanding industrial standards.
