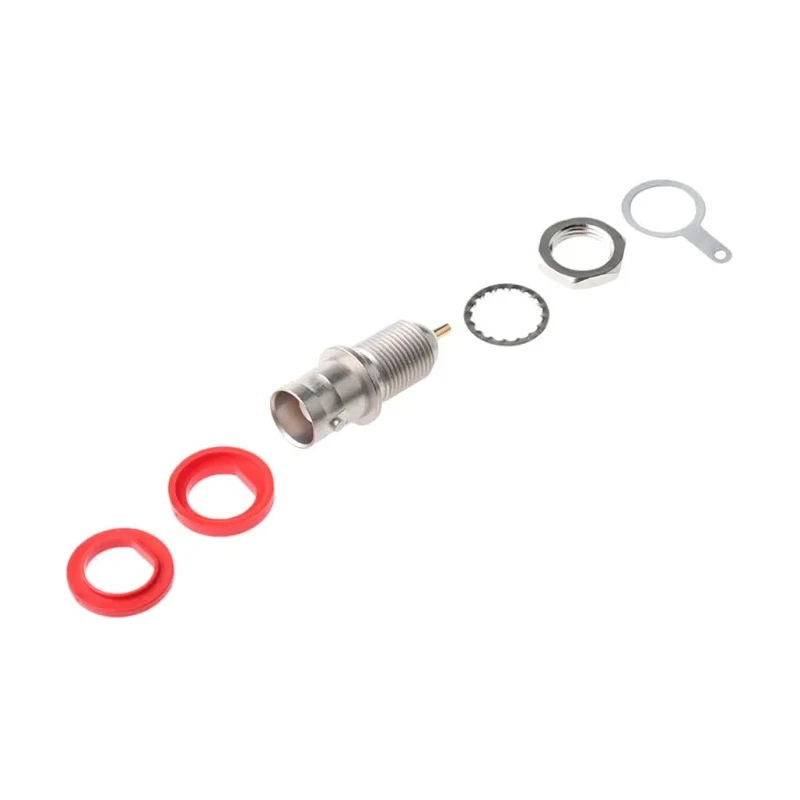

Telegartner BNC Series Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body Solder Termination J01001C1222

Telegartner J01001C1222 BNC Series Coaxial Connector is a high-quality panel mount female BNC connector designed for reliable 50 Ω impedance signal transmission. This connector features a straight body with solder termination, making it suitable for electronic components and connectors in industrial, commercial, and laboratory applications.

The connector's body plating is nickel, providing corrosion resistance and durability, while gold-plated beryllium copper contacts ensure excellent electrical conductivity. The connector supports operating frequencies up to 4 GHz and withstands temperature ranges from -65°C to 165°C, making it adaptable to various harsh environments.

This BNC connector employs a bayonet coupling mechanism that allows fast and secure quarter-turn connections and disconnections, increasing efficiency in setups requiring frequent cable changes. Its IP54 rating protects against dust ingress and water splashes between mated plug and jack, enhancing its reliability in demanding conditions.

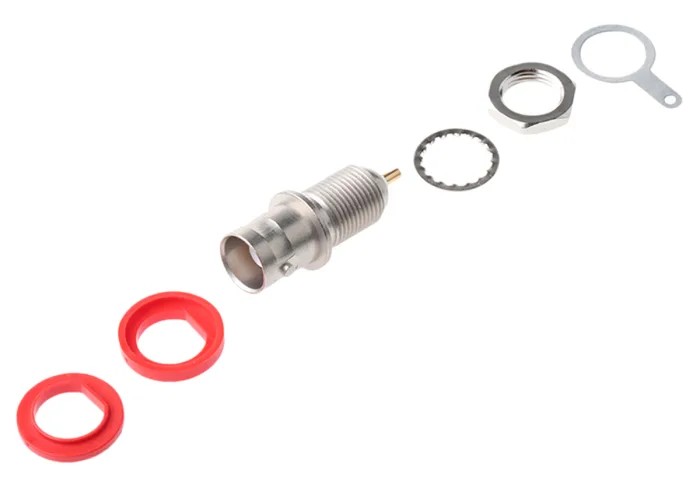

The insulated bulkhead design includes a red insulating washer for easy identification versus other variants with different color codes. The standard size panel mount format facilitates integration into electronic chassis and equipment panels.

Applications of this connector include signal, data, and video transmission across industrial, laboratory, manufacturing, and commercial sectors. Its robust mechanical and electrical properties guarantee consistent performance in demanding environments.

Features gold plated beryllium copper contacts for superior conductivity. Panel mount design with nickel plated body ensures robust mechanical strength. Operating temperature range from -65°C to 165°C supports harsh environments.

Bayonet coupling mechanism provides easy quarter-turn connect and disconnect. IP54 rated between a mated plug and jack for dust and water resistance. Suitable for signal, data, and video transmission applications. Insulated with red color-coded washer for easy identification.

Standard size with normal polarity and straight orientation. Termination type is solder for secure electrical connection. Manufactured in Germany to high quality standards. Explore the full range of Coaxial Connectors and accessories in the Electronics & Electricals category at EnvMart for your industrial and electronic application needs.
