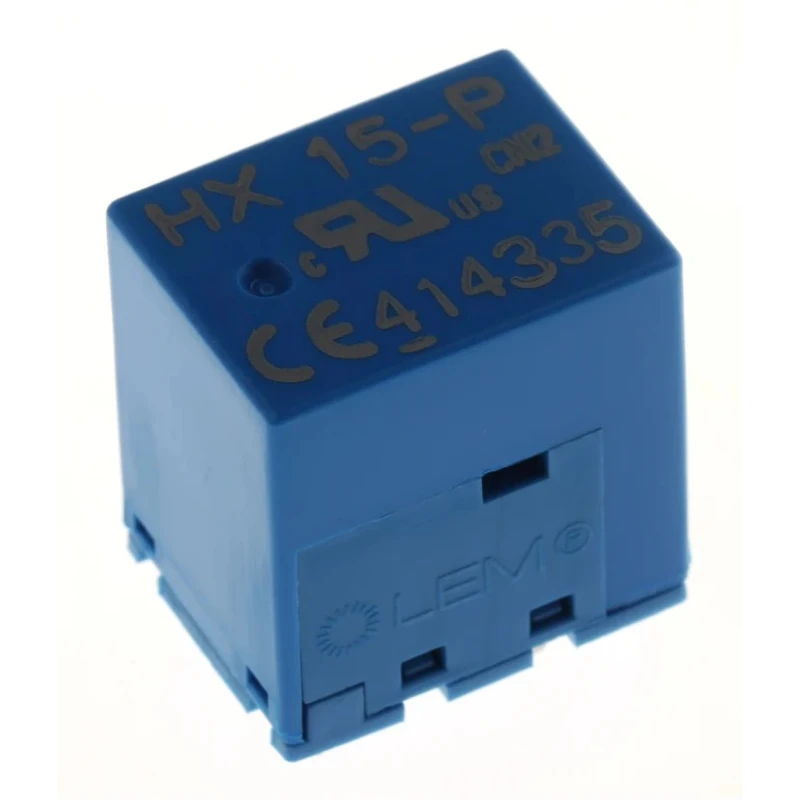

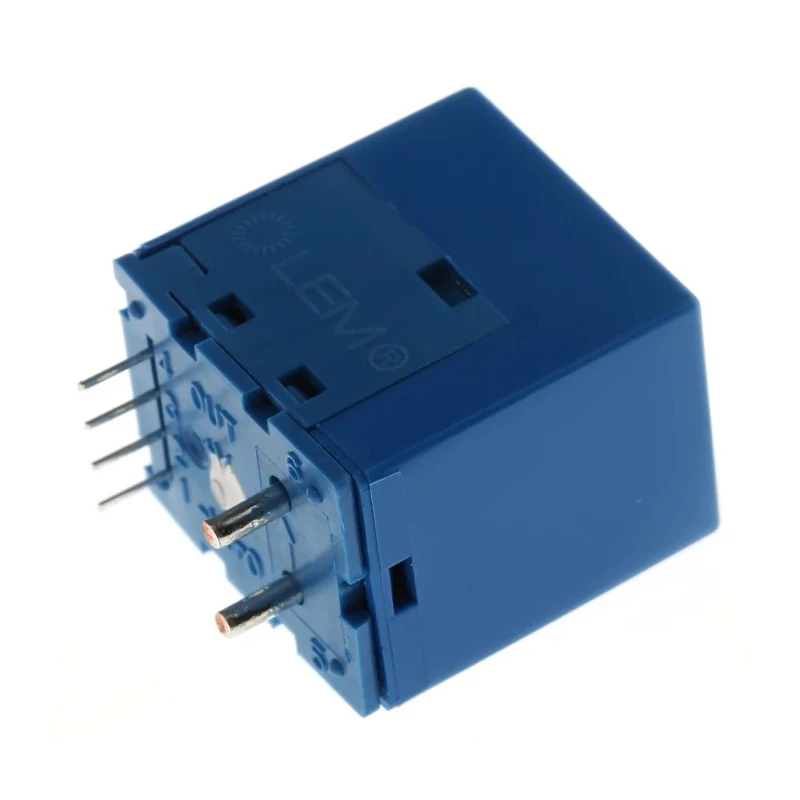

LEM HX Series Current Transformer 15A 15V 1.4mm Bore HX 15-P

LEM HX 15-P is a high-precision current transformer from the HX Series by LEM, designed for electronic measurement of alternating, direct, pulse, and mixed currents. Featuring a 1.4mm bore diameter, this transformer supports a primary current of 15 amperes and operates with a 15V supply voltage. The compact form factor with a width of 19mm and depth of 15.4mm allows easy PCB mounting in control gear and automation systems.

Operating temperature ranges from -40°C to 105°C, enabling consistent performance across diverse environmental conditions. With a broad operating frequency range from 0Hz to 500kHz, it is versatile for use in applications such as AC variable speed drives, static converters for DC motors, switched mode power supplies, and uninterrupted power supplies for welding equipment.

The device employs the Hall Effect measuring principle, providing galvanic insulation between the high current primary circuit and the sensitive electronic secondary circuit, enhancing safety and accuracy. It is housed in a UL 94-V0 self-extinguishing PBT polycarbonate casing, ensuring robust electrical insulation and fire safety compliance.

This current transformer meets essential international standards including CSA, IEC, EN, and UL, ensuring reliable operation and global compliance. Designed for industrial process control, electronics, and automation use cases, the HX 15-P delivers precise current sensing critical for monitoring and control systems.

Operates reliably in temperatures ranging from -40°C to 105°C. Compact PCB mountable design with a width of 19mm and depth of 15.4mm. Supports a maximum operating frequency of 500kHz for versatile current measurement. Galvanic insulation with Hall Effect sensor technology enhances measurement accuracy.

UL 94-V0 self-extinguishing PBT polycarbonate housing for electrical safety. Certified to CSA, IEC, EN, and UL standards for quality assurance. Suitable for AC variable speed drives, DC motor drives, SMPS, and welding power supplies.

Manufactured in China with high industrial quality standards.

This current transformer is an essential component for industrial automation, electrical controls, manufacturing, HVAC, and laboratory equipment requiring precise and reliable current measurement. For more products like this, explore the comprehensive range of Current Transformers available at EnvMart.
