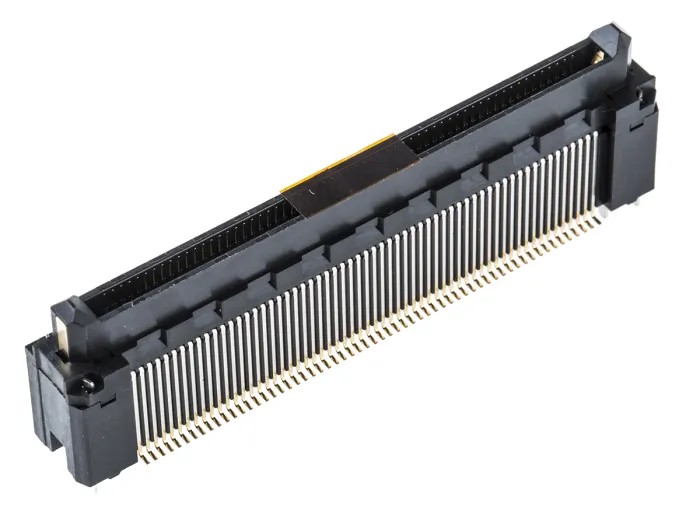

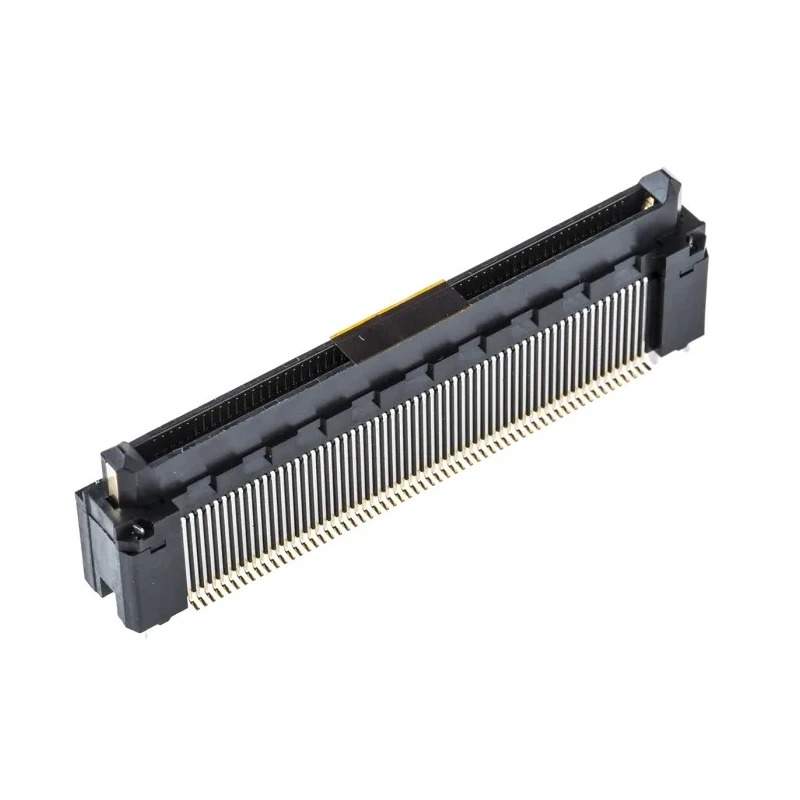

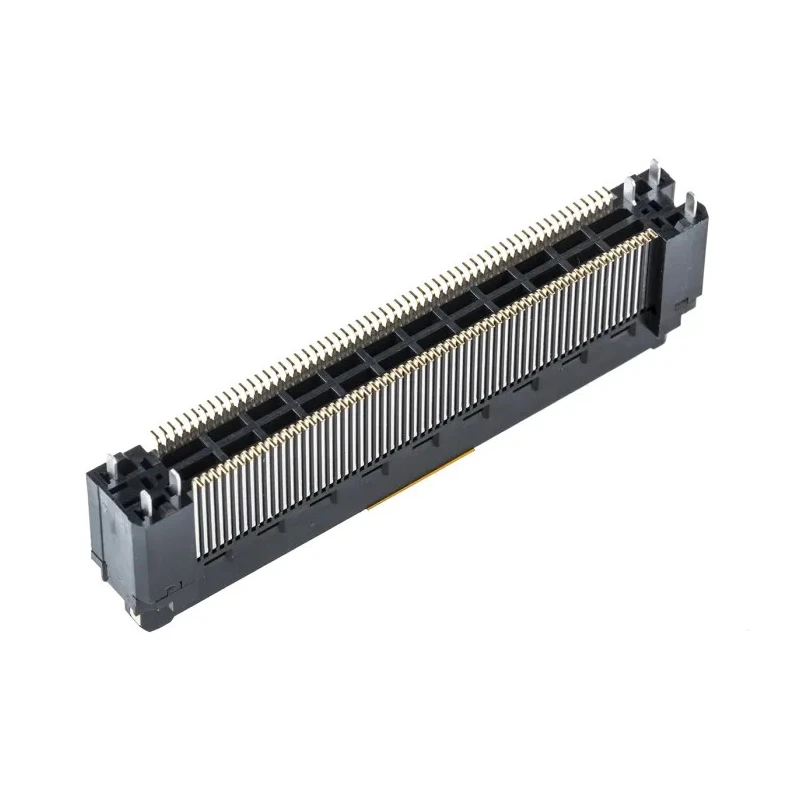

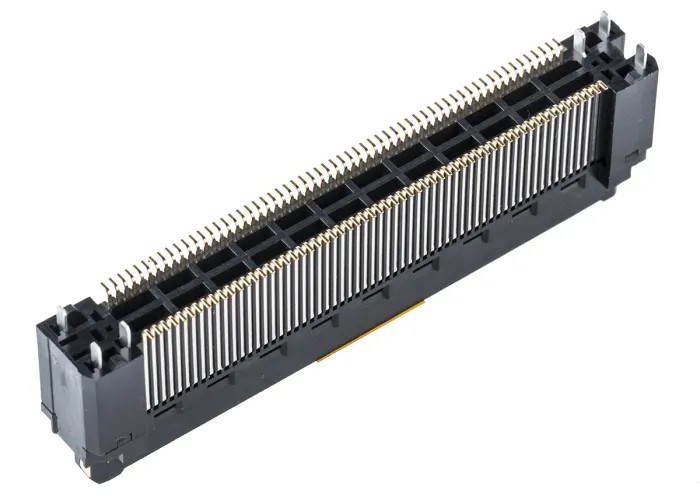

Hirose FunctionMAX FX18 Series Straight Surface PCB Header, 120 Contacts, 0.8 mm Pitch, 2 Row, Shrouded
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 3mA |
| Model | FX18 |
| Mount Type | Surface |
| Housing Material | Polyamide Resin |
| Contact Material | Phosphor Bronze |
| Series | FunctionMAX FX18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 120 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- High-speed data transmission capability up to 10+ Gbit/s.
- 120 male contacts with phosphor bronze material and gold plating for excellent conductivity.
- Shrouded, straight orientation designed for surface mounting on PCBs.
- Capable of handling currents up to 3 mA per contact with a voltage rating of 100 V.
- Constructed with durable polyamide resin housing ensuring mechanical stability.
- Operating temperature range from -55°C to 85°C suits industrial and commercial applications.
- Advanced multifunctional contacts providing grounding, power supply, and signal sequential contacts.
- Six through-hole pins improve PCB retention and resistance to wrenching forces.
Product Description
Hirose FX18-120P-0.8SV10 is a FunctionMAX FX18 Series straight surface mount PCB header designed with 120 male contacts arranged in 2 rows at a precise 0.8 mm pitch. It has a shrouded housing made from polyamide resin ensuring robust mechanical and electrical performance.
This board-to-board connector supports high-speed transmission rates exceeding 10 Gbit/s and complies with PCI-Express Ver. 2.0 standards, making it suitable for demanding industrial, medical, telecommunication, and measurement equipment applications.
The phosphor bronze contacts plated with gold provide exceptional conductivity and corrosion resistance. These connectors incorporate multifunctional contacts that include grounding adjacent to differential pairs for reduced crosstalk, power contacts capable of delivering up to 3 A per pin relieving signal contacts from power load, and three-step sequential contacts for grounding and detection functions.
Additional features include six through-hole pins that enhance retention force on the PCB and improve resistance against mechanical stress. Large mating guides ensure precise connection with compatible FunctionMAX receptacles and other complementary connectors, facilitating ease of assembly and reliability.
High-speed transmission of 10+ Gbit/s. Suitable for coplanar, vertical, and parallel board-to-board mating styles. Advanced multifunctional contacts for power, grounding, and signal detection. Six through-hole pins provide enhanced PCB retention and wrenching resistance.
Large mating guides assist with accurate and secure mating.
This PCB Header is ideally used in medical devices, industrial controllers, servers, smart meters, base station transceivers, and programmable logic controllers (PLCs). Its robust construction and advanced contact design meet industrial performance requirements in harsh operating environments.
Explore Hirose's comprehensive range of FunctionMAX connectors on EnvMart for reliable, high-performance electronic components tailored to modern industrial and commercial electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
It features 120 male contacts arranged in 2 rows.
The contact pitch is 0.8 mm.
The voltage rating is 100 V.
This model can handle currents up to 3 mA per contact.
The contacts are made of phosphor bronze and are plated with gold for excellent conductivity.
The housing is constructed from polyamide resin, ensuring mechanical stability.
It uses a solder termination type.
This unit is designed for surface mounting on PCBs.
It is suitable for applications in medical devices, industrial controllers, servers, smart meters, and programmable logic controllers (PLCs).
Yes, it complies with PCI-Express Ver. 2.0 standards, making it suitable for high-speed data transmission.
It includes six through-hole pins that improve PCB retention and resistance to wrenching forces.
