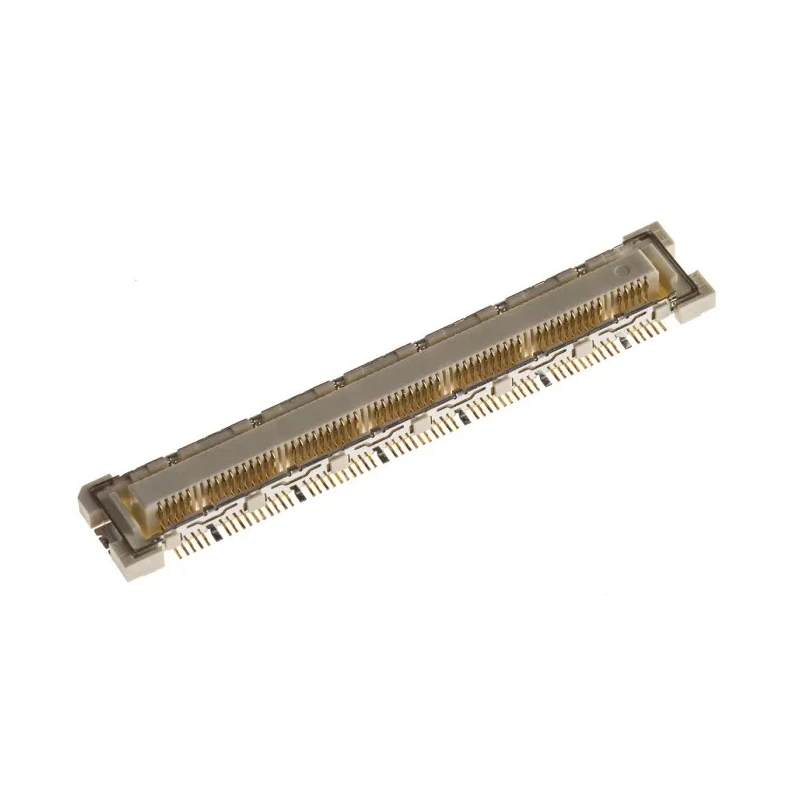

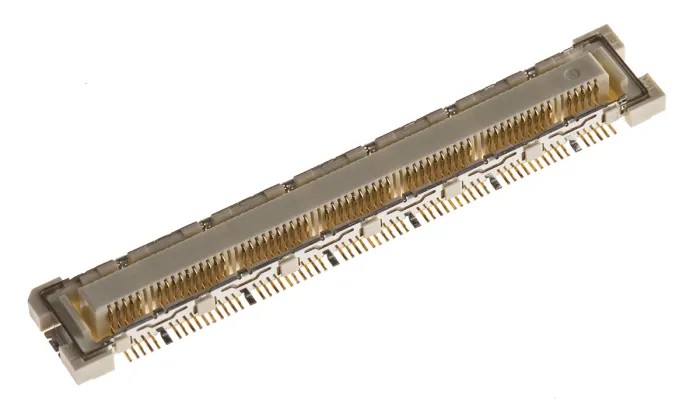

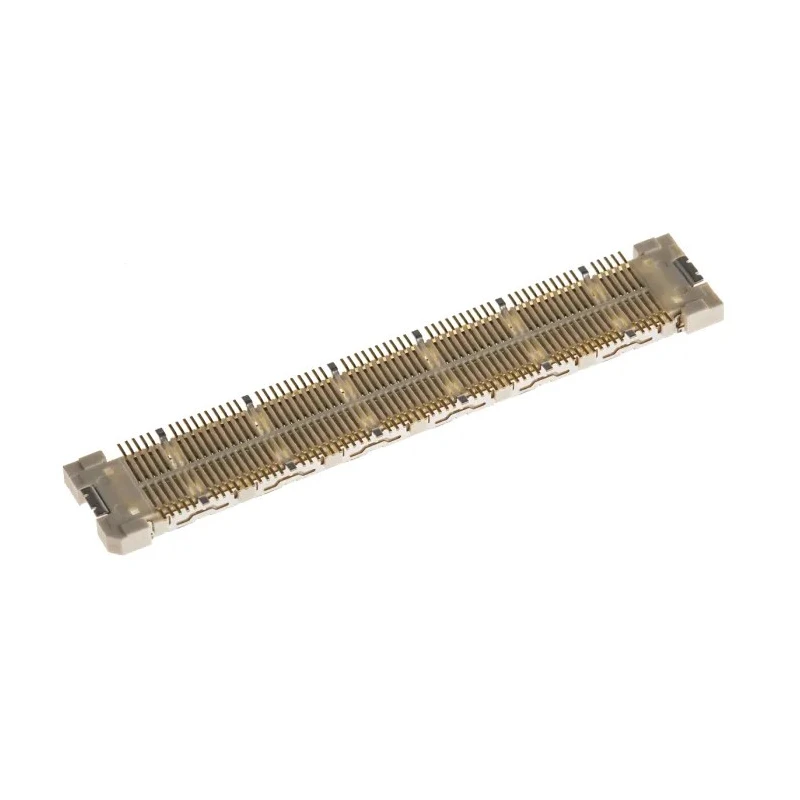

Hirose FunctionMAX FX10 Series Straight Surface PCB Socket 2 Row 0.5 mm Pitch 50V 300mA Solder
Specifications
| Country of Origin | Indonesia |
|---|---|
| Voltage | 50V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 300mA |
| Model | FX10 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | FunctionMAX FX10 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| 10 | 1 signal to ground ratio for stabilised grounding and reduction in crosstalk |
| Contact Plating | Gold |
| Contact Gender | Female |
| Stacking Height | 4mm |
Key Features
- Features 2 rows with 0.5 mm pitch for compact PCB design.
- Rated for 300mA current and 50V maximum voltage.
- Surface mount termination with solder type connection.
- Constructed using Liquid Crystal Polymer housing for durability.
- Gold-plated bronze female contacts ensure reliable conductivity.
- Stacking height of 4 mm for efficient board stacking.
- Operating temperature range from -55°C to 85°C suitable for industrial environments.
- Metal fittings improve PCB retention and solder strength.
Product Description
Hirose FX10B-120S/12-SV(71) is a FunctionMAX FX10 Series Straight Surface PCB Socket designed with 2 rows and a fine pitch of 0.5 mm, suitable for high-density electronic applications. This PCB connector supports a current rating of 300mA and maximum voltage up to 50V, ensuring reliable performance across a wide range of industrial and commercial uses.
The socket features surface mount solder termination and is built with a durable Liquid Crystal Polymer housing. Its female contacts are bronze with gold plating to enhance conductivity and corrosion resistance. The stacking height is 4 mm which facilitates multiple board connections in tight spaces.
A distinctive ground plate on both sides of the connector improves electrical grounding and reduces crosstalk with a 10:1 signal to ground contact ratio. Metal fittings at connector ends provide extra strength and stability on the PCB, making it highly robust for heavy-duty use.
This connector is rated for operation between -55°C and 85°C, making it suitable for harsh environmental conditions found in industrial controllers, medical devices, servers, measurement instruments, smart meters, base station transceivers, and programmable logic controllers (PLCs).
Hirose's FunctionMAX line offers high-speed, high-performance connectors built to meet stringent requirements of advanced industrial markets. The FX10B-120S/12-SV(71) model ensures superior signal integrity with its innovative design, making it ideal for high-speed data transmissions including 15+ Gbit/s differential systems.
Features 2 rows with 0.5 mm pitch for compact PCB design. Rated for 300mA current and 50V maximum voltage. Surface mount solder termination for secure connections. Durable Liquid Crystal Polymer housing material. Gold-plated bronze female contacts for reliable conductivity.
Stacking height of 4 mm supports dense board configurations. Wide operating temperature range suitable for industrial uses. Metal fittings provide enhanced PCB retention and solder strength. Ground plate and 10:1 signal to ground ratio reduce electrical noise.
Ideal for medical equipment, industrial controllers, servers, and telecommunications. Explore more Hirose industrial connectors and PCB Sockets on EnvMart for precision and quality in your electronic assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB socket is 50V.
This model has a current rating of 300mA.
The connector features a pitch size of 0.5 mm.
The stacking height of this PCB socket is 4 mm.
It is constructed from Liquid Crystal Polymer for the housing and features gold-plated bronze for the female contacts.
The operating temperature range for this connector is from -55°C to 85°C.
The design includes a ground plate and a 10:1 signal to ground ratio, which helps to stabilize grounding and reduce crosstalk.
This PCB socket uses a surface mount solder termination type for secure connections.
This model features 2 rows.
It is suitable for applications such as industrial controllers, medical devices, servers, and telecommunications equipment.
The contact gender of this socket is female.
The country of origin for this product is Indonesia.
