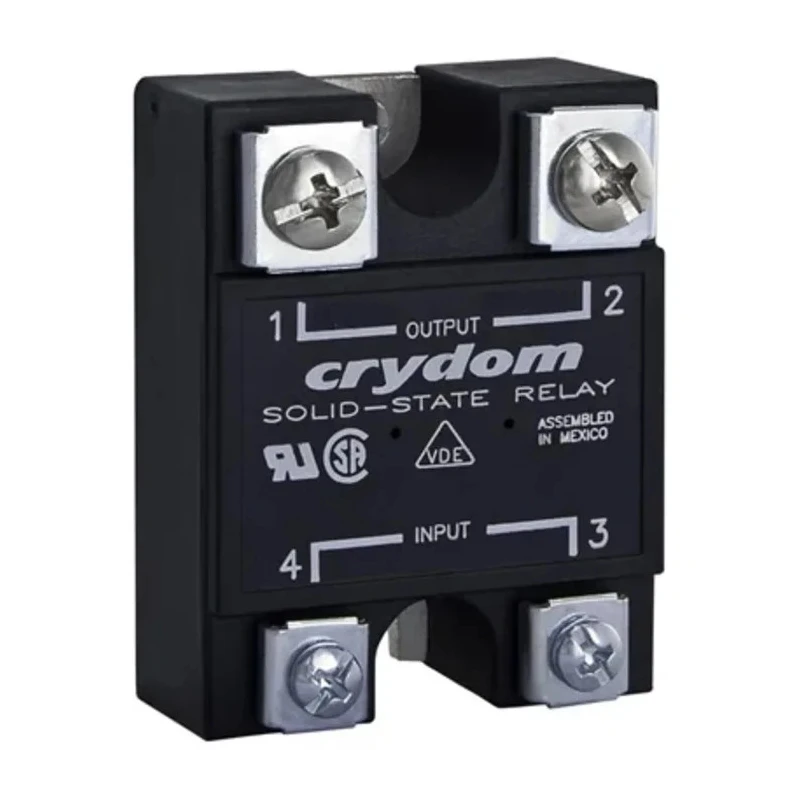

Crydom SSC Series Panel Mount Solid State Relay, 25A Load Current, 1000V Load Voltage, 8-16V DC Control SSC1000-25-12

Crydom SSC1000-25-12 is a high-performance solid state relay designed for reliable and efficient switching in industrial control, automation, and motion control systems. Featuring a 25 ampere maximum load current and panel mount design, it supports a wide operational voltage range up to 1000 volts. This model operates with an 8 to 16 V DC control voltage and employs MOSFET technology to achieve silent, mechanical wear-free switching, enhancing durability.

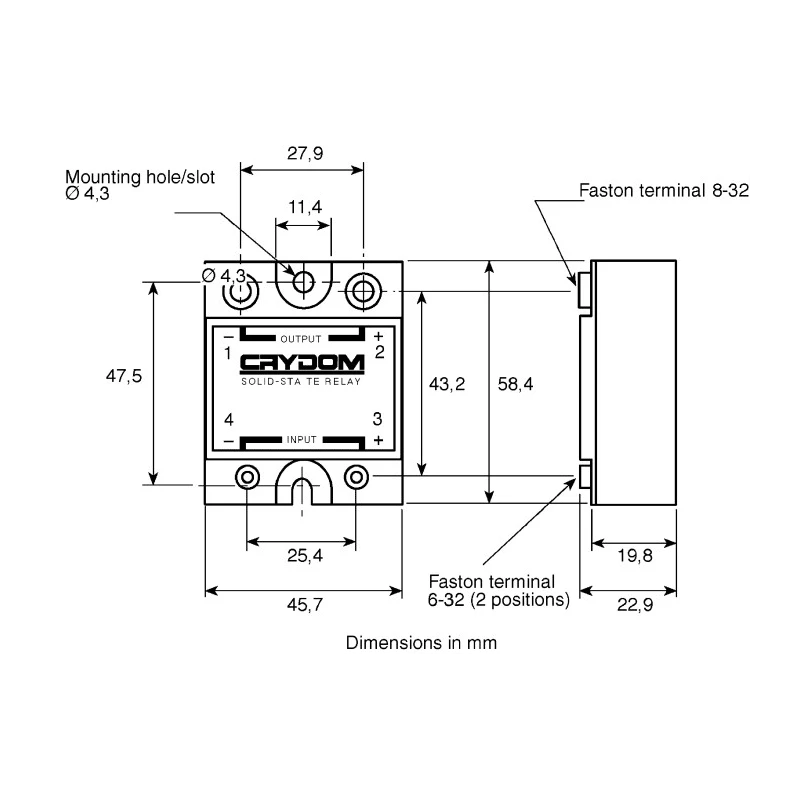

The relay incorporates zero voltage switching to reduce electrical noise and stress on connected components, making it ideal for sensitive industrial electronics. Measuring 58.4 mm in length, 22.9 mm height, and 22 mm width, its compact form factor allows seamless integration into constrained panel spaces. The flame-retardant housing provides safety by containing potential fires.

Its operating temperature range from -30°C to 80°C ensures robust performance in demanding environments, while the IP20 rating offers protection against solid particles. The relay features screw terminals for dependable electrical connections and SPST contact configuration for straightforward switching control.

This solid state relay exhibits a low off-state leakage current of 0.3 mA and capacitance of 8 pF, ensuring low power loss and minimal impact on the controlled circuit. A dielectric strength of 3750Vrms guarantees substantial insulation, protecting personnel and equipment from electric shocks.

Manufactured in Mexico, the Crydom SSC1000-25-12 adheres to CE and RoHS standards for quality and environmental compliance. It is suited for industrial automation, manufacturing controls, HVAC systems, and other applications requiring reliable high-current switching with minimal maintenance.

MOSFET technology enables wear-free switching for extended longevity. Compact dimensions fit tight panel mount installations. Wide temperature range supports harsh environments. Zero voltage switching minimizes electrical noise.

Dielectric strength ensures robust electrical insulation. Flame-retardant housing enhances operational safety. Screw terminals provide secure wiring connections. IP20 rating protects against solid ingress. SPST contact configuration supports simple switching.

Low off-state leakage current reduces power loss.

This product is a premium choice within the Solid State Relay category on EnvMart, ideal for industrial and automation professionals seeking durable, efficient, and safe device switching solutions.
