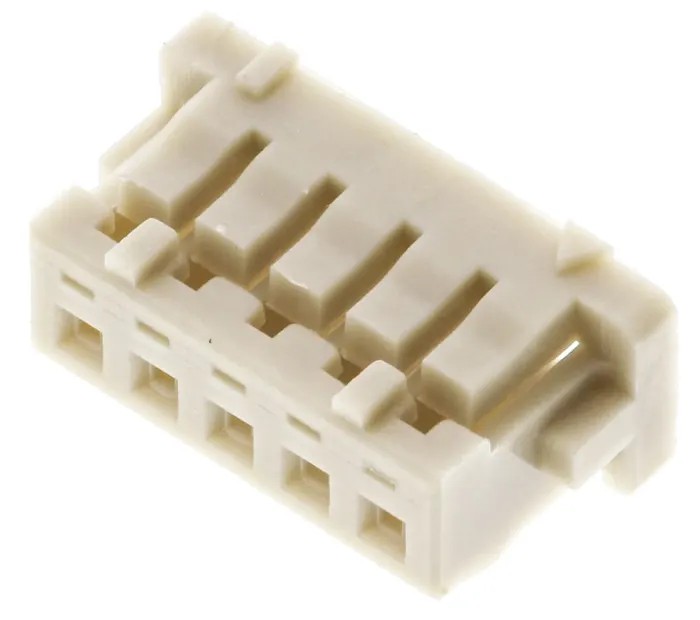

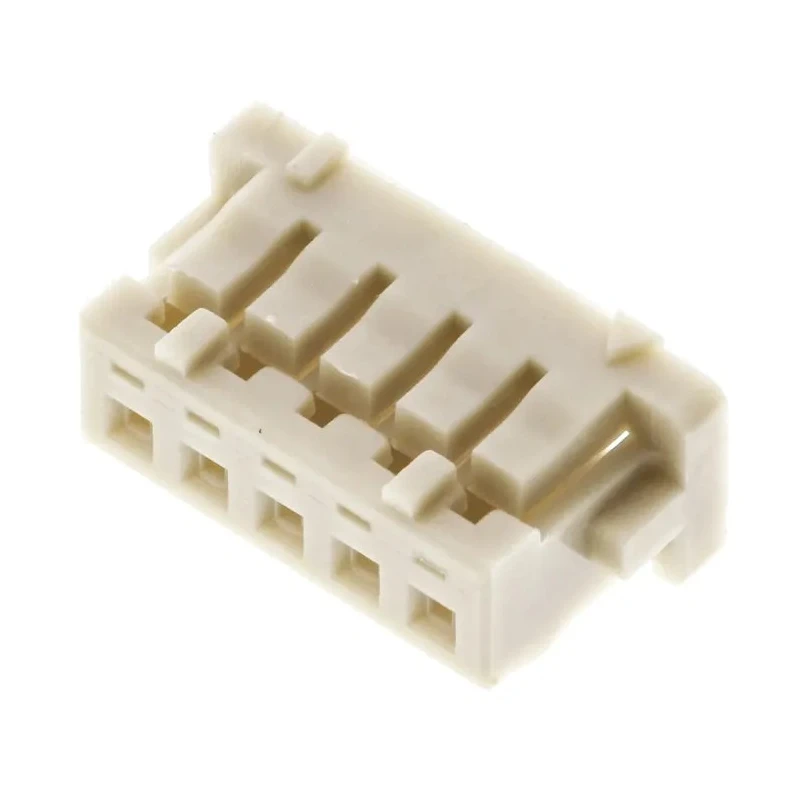

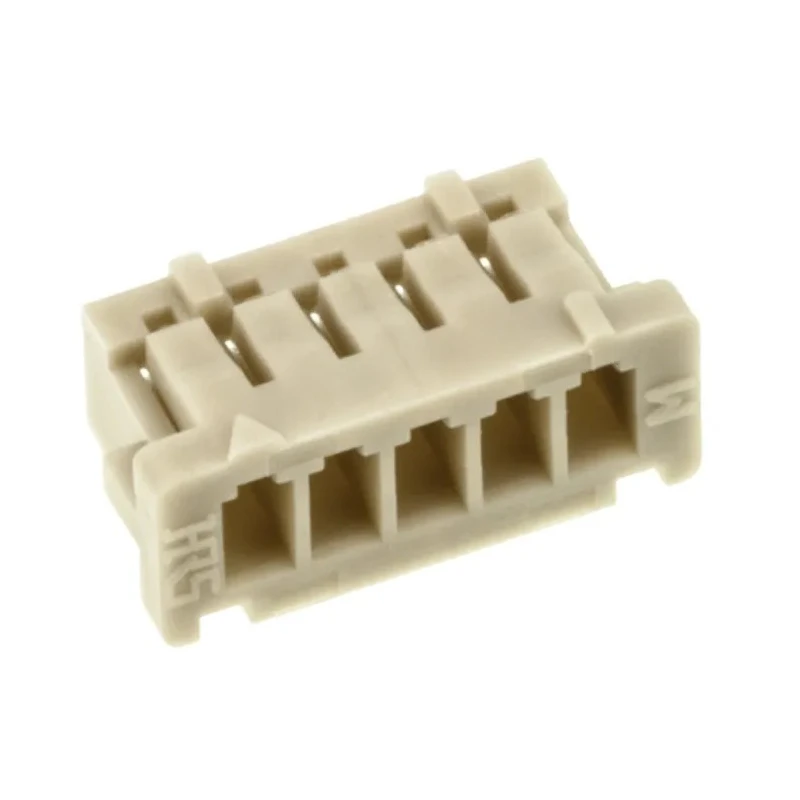

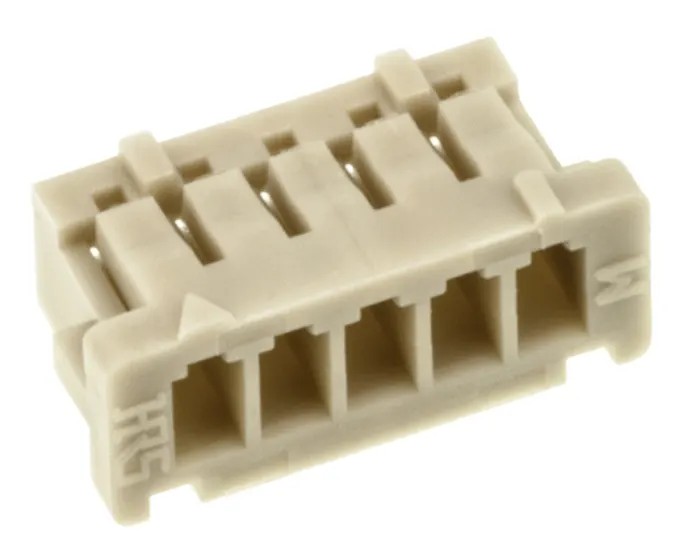

Hirose DF13 Male Connector Housing 1.25 mm Pitch 5 Way 1 Row Straight

Hirose DF13-5S-1.25C is a male connector housing from the Hirose DF13 series, featuring a 1.25 mm pitch and 5 contacts arranged in a single row with a straight orientation. It is designed for cable mount applications where miniature connectors are required for compact and space-efficient electronic assemblies.

This connector housing is constructed from durable polyamide material, ensuring robust mechanical protection and insulation. The friction locking mechanism provides a secure connection, preventing accidental disconnections in critical applications such as digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement devices.

The 1.25 mm pitch design supports high-density connections while polarisation slots in the housing prevent incorrect mating by ensuring the connector can only be inserted in the correct orientation. The compact size with a length of 7.9 mm and width of 3.2 mm makes this suitable for confined electronic spaces.

Miniature 1.25 mm pitch connector housing enabling compact assemblies. 5 contact positions arranged in a single row straight format. Polyamide insulating housing material for durability and safety. Friction lock mechanism secures connections firmly.

Polarisation features to prevent misalignment during assembly. Compliant with UL94V-0 safety standard. Widely used in industrial, consumer electronics, and instrumentation fields.

This connector housing exemplifies high-density, reliable connections for various electronic and industrial applications where space optimization and secure cabling are critical. It is part of Hirose's trusted DF13 series known for quality and performance.
