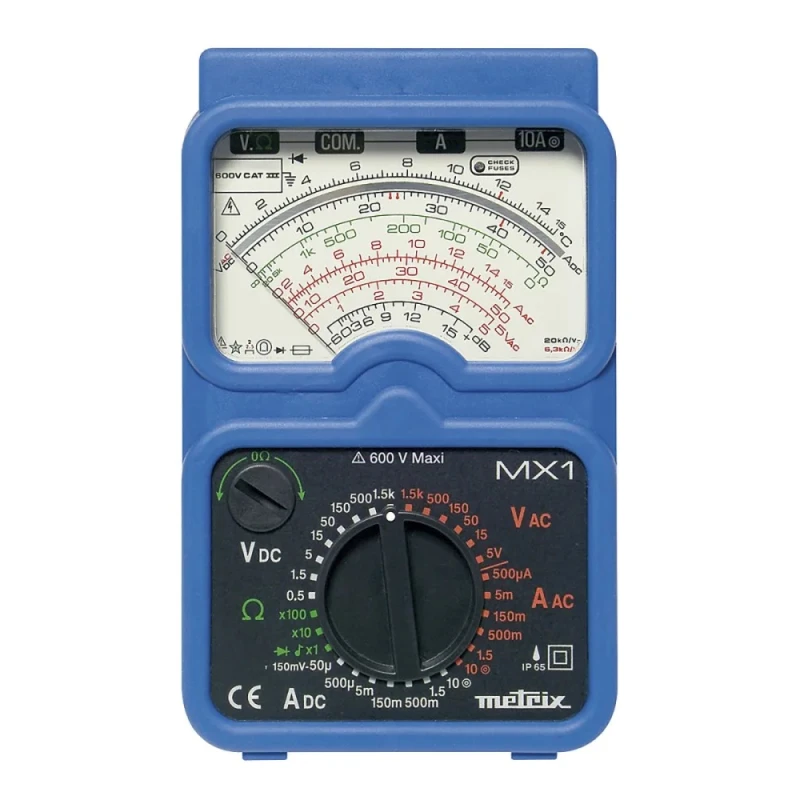

Metrix Handheld Multimeter AC/DC Voltage and Current Measurement MX0001-M

The Metrix MX0001-M is a handheld multimeter designed for precise measurement of AC and DC voltages and currents, resistance, and continuity in industrial, laboratory, and field electrical environments. It combines analogue instrument advantages with digital reliability and safety features, making it suitable for professional electricians and technicians.

Its measurement capabilities include AC current up to 10 A, DC current from 50 μA to 10 A, AC and DC voltage ranges up to 1500 V, and resistance measurement up to 20 kΩ. The device features diode test capability and a mains proof ohms range, enhancing its versatility.

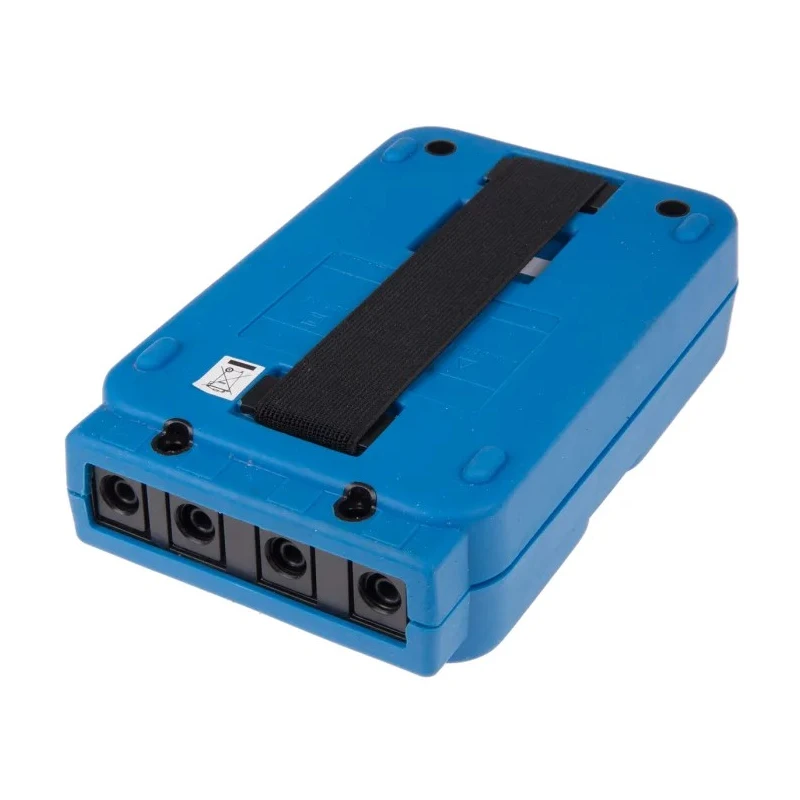

Equipped with 10 kA fuse protection on current ranges and a high-speed continuity bleeper, it ensures operator safety and quick diagnostics. The multimeter is housed in a robust IP65 rated case with moulded shock absorbers, providing resistance against dust and water ingress, suitable for harsh industrial environments.

It operates on AA batteries and measures 150 mm in length, 98 mm in width, and 40 mm in height with a weight of 420 g, making it portable and easy to handle. The Metrix MX0001-M complies with the EN61010-1 CAT II 600 V safety standard, ensuring it meets international electrical safety requirements.

This multimeter is supplied complete with a rugged carry case, test lead set, spare fuses, battery, and detailed instructions, supporting immediate use upon delivery. Measures AC current up to 10 A and resistance up to 20 kΩ.

Equipped with 9 DC voltage ranges from 150 mV to 1500 V and 6 AC voltage ranges from 5 V to 1500 V. Offers 7 DC current ranges from 50 μA to 10 A and 6 AC current ranges from 500 mA to 10 A. Features 10 kA fuse protection and high speed continuity bleeper for safety and efficiency.

IP65 rated rugged casing with shock absorber for durable field use. Includes diode test and mains proof ohms range functions. Powered by AA batteries with compact dimensions of 150 mm length, 98 mm width, and 40 mm height.

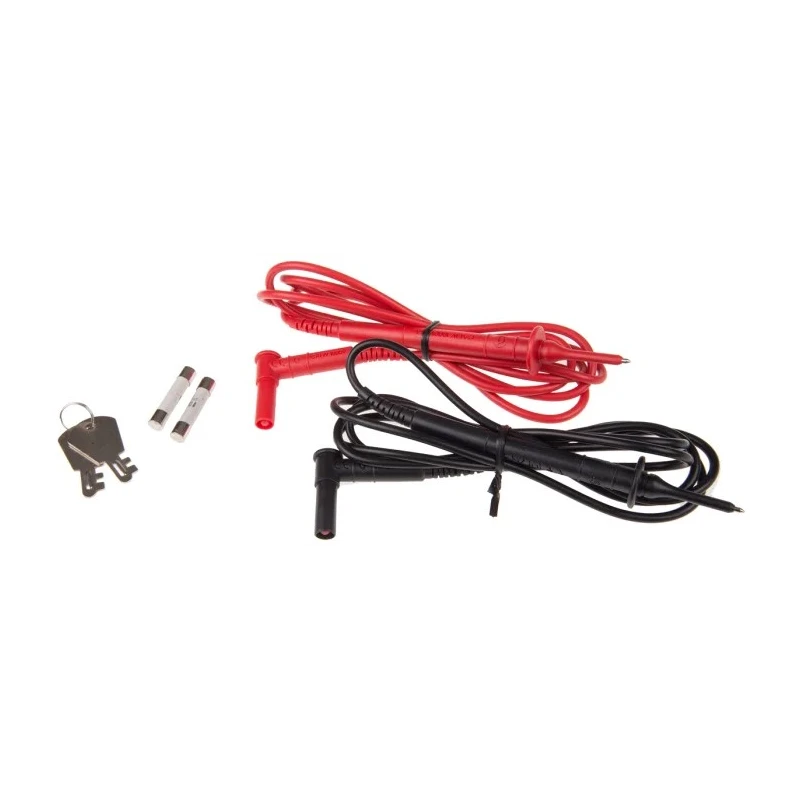

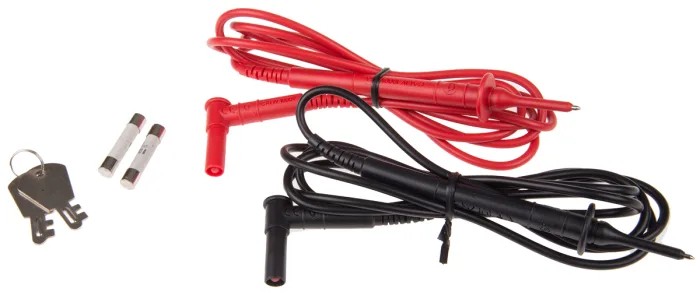

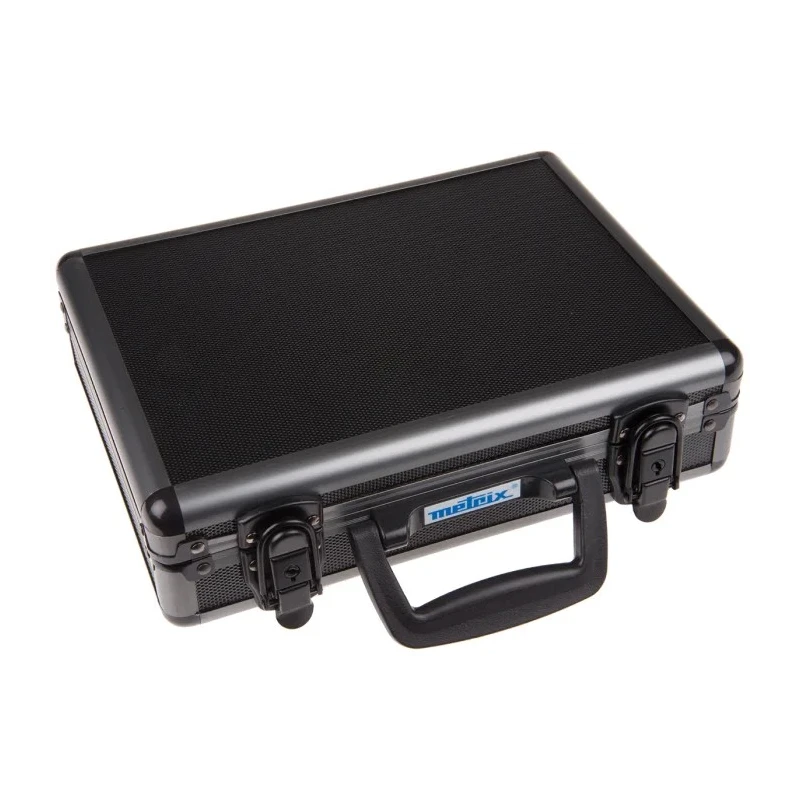

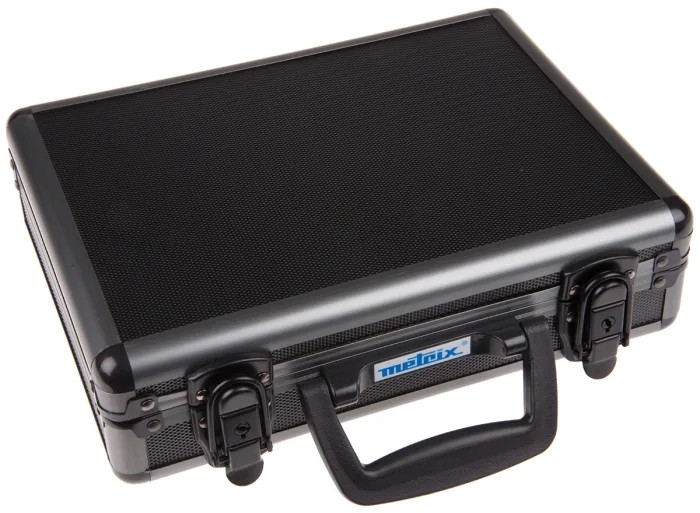

Complies with EN61010-1 CAT II 600 V safety standard. Supplied with carry case, test leads, spare fuses, battery, and instruction manual.

This Metrix handheld Multimeter is ideal for electrical testing in industrial, laboratory, HVAC, manufacturing, and maintenance applications. Explore the full range of measuring instruments and accessories available at EnvMart to complement your electrical testing needs.
