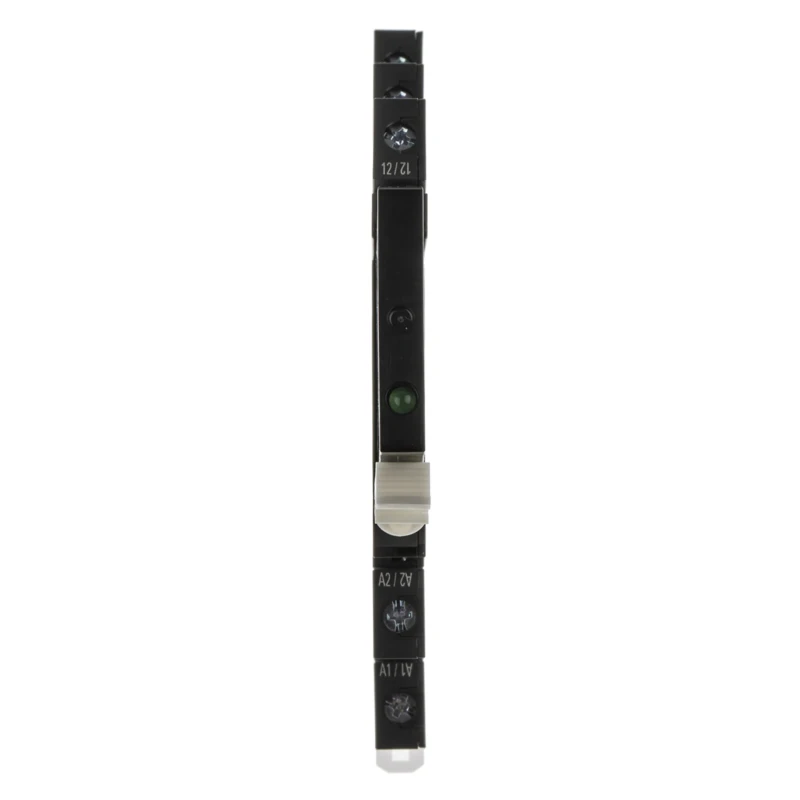

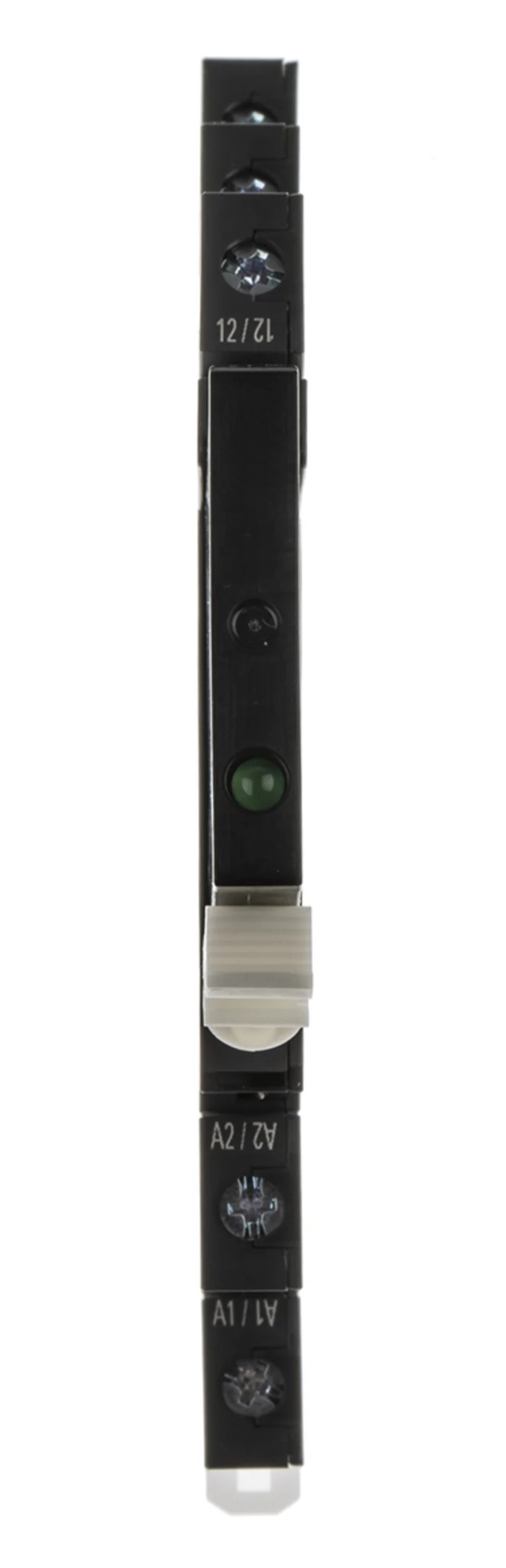

Omron Solid State Interface Relay 110V AC DIN Rail Screw Terminal G3RV-SR

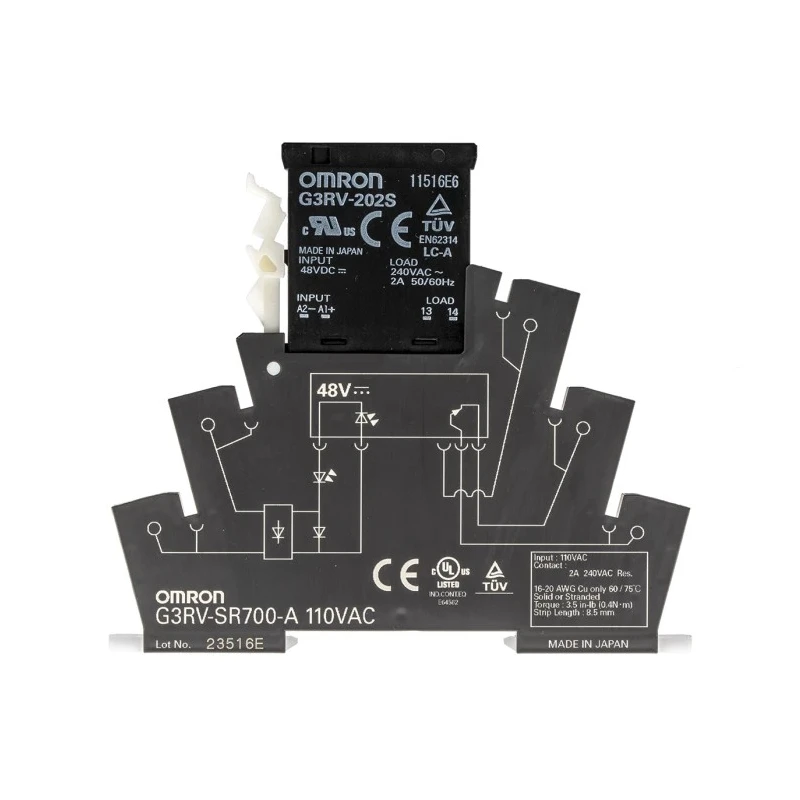

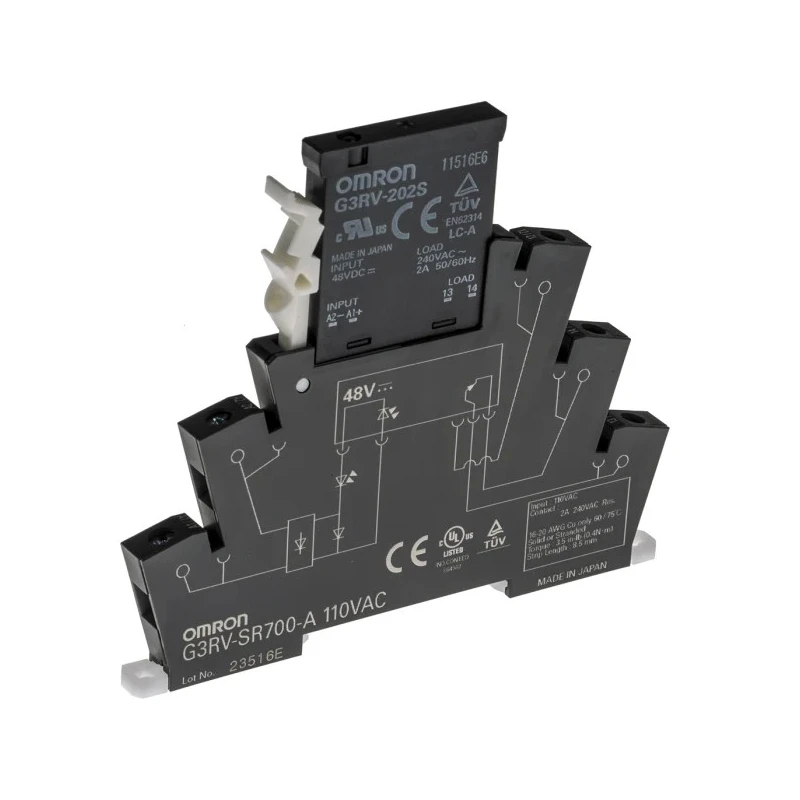

Omron G3RV-SR700-A AC110 Solid State Interface Relay is a low profile, slim I/O SSR designed to enable efficient and reliable switching of AC loads with a control voltage of 110 V AC. The relay features a compact 6.2 mm wide footprint allowing efficient space utilization in control panels. It is equipped with screw terminals that reduce wiring time by up to 60%, enhancing installation efficiency.

Equipped with zero cross function and triac output, the relay minimizes electrical noise by switching on the load as AC voltage approaches zero. It supports a wide load voltage range of 75 to 264 V AC and load currents from 0.1 to 2 A at ambient temperatures of 25°C, along with inrush current resistance of 30 A for one cycle at 60 Hz to handle transient surges.

Its fast operating times, including an operate time of 1/2 cycle plus 1 ms maximum and a release time of 60 ms maximum, provide high-speed switching performance. The relay is built to endure demanding industrial conditions with vibration resistance from 10 to 55 Hz double amplitude and shock resistance up to 300 m/s². Operating temperature ranges from -30°C up to +55°C, making it suitable for diverse industrial, automation, and control applications.

Assembled in Japan, this product assures quality and reliable performance in industrial automation, manufacturing control systems, and electrical panel designs. Compatible accessories include DIN rails PFP-100N and PFP-50N for mounting, along with end plates and spacer plates to facilitate panel integration and safety.

Screw terminal design reduces wiring time by approximately 60 percent. Compact low profile relay measuring 6.2 mm wide for space saving in control panels. Supports AC output with triac and zero cross function to minimize electrical noise.

Operates with input voltage tolerance of ±10% and must operate voltage of 99 V max. Rated load voltage range from 75 to 264 V AC and load current from 0.1 to 2 A at ambient 25°C. Inrush current resistance up to 30 A for one cycle at 60 Hz frequency.

Operate and release times of 1/2 cycle +1 ms max and 60 ms max respectively for fast switching. Designed to withstand vibration and shock with ratings of 10 to 55 Hz double amplitude and 300 m/s² shock. Ambient operating temperature range from -30°C to +55°C suitable for industrial environments.

Manufactured in Japan ensuring high build quality and reliability. Explore more Omron relays and Solid State Interface Relays on EnvMart for your industrial and automation needs.
