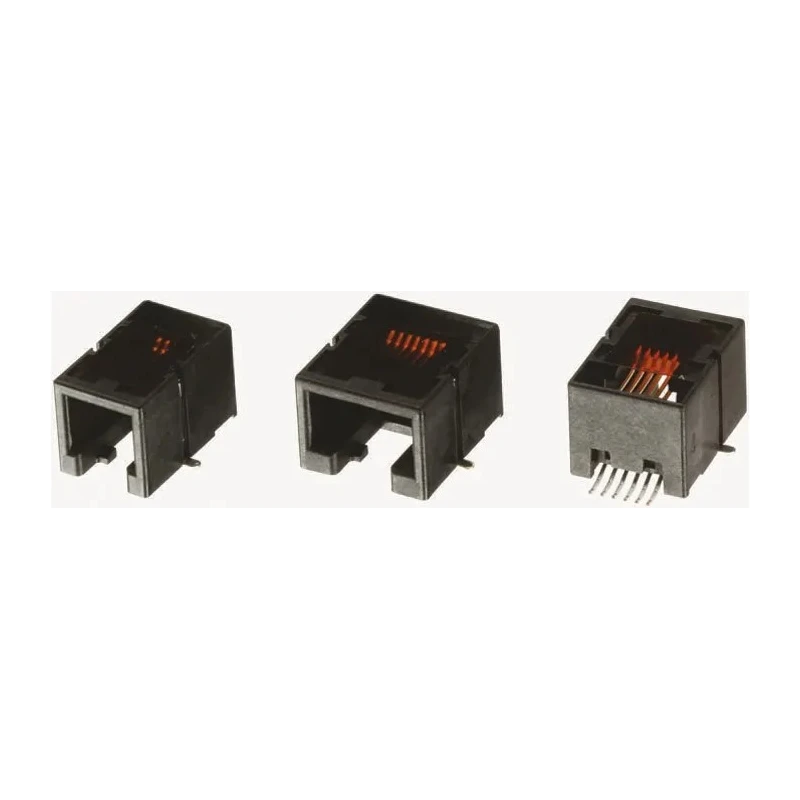

Molex RJ11 Female Surface Mount Cat3 UTP Shielded Right Angle Modular Jack Connector 1 Port 6 Way

Molex RJ11 RJ11 Connector Female Surface Mount Cat3 UTP Shield Right Angle 1 Port 6 Way modular jack connector provides reliable and durable connectivity for Ethernet and telecom applications. It is built with brass contacts plated in gold over nickel, ensuring excellent conductivity and longevity. The connector supports Category 3 LAN with a single port and six ways, suitable for low-speed data and voice networks.

This connector is designed for surface mounting on PCB boards with solder termination, guaranteeing stable and secure electrical connections. Its right angle orientation facilitates compact installation in devices requiring space efficiency. The connector casing is made of UL 94V-0 thermoplastic ensuring flame resistance and safety.

Operating temperature range from -40°C up to 85°C enables this connector to perform reliably in varied industrial and commercial environments. The shield type is unshielded twisted pair (UTP), making it compatible with Cat3 cabling standards. The connector excludes magnetic and LED features, focusing on essential connectivity.

Measured dimensions of 16.16 mm length, 11.5 mm width, and 18.1 mm depth provide a low profile footprint fitting most designs. This Molex 85502 series connector fits applications in telecommunications, networking equipment, and other electronic components where RJ11 modular connectors are required for voice or low-data-rate signals.

This connector features a right angle orientation for space-saving PCB design. It offers Category 3 LAN compatibility with 1 port and 6 ways. The connector is surface mount type with solder termination for reliable connections.

Designed with brass contact material plated with gold over nickel for durability and corrosion resistance. Supports operating temperature range from -40°C to 85°C for versatile applications. Shield type is UTP, without magnetic or LED features.

Compact dimensions: length 16.16 mm, width 11.5 mm, depth 18.1 mm ensure low profile footprint. Ideal for industrial, telecommunications, and networking equipment requiring quality Ethernet connections. This connector is suitable for industrial, laboratory, telecom, manufacturing, and networking applications requiring robust RJ11 modular connections.
