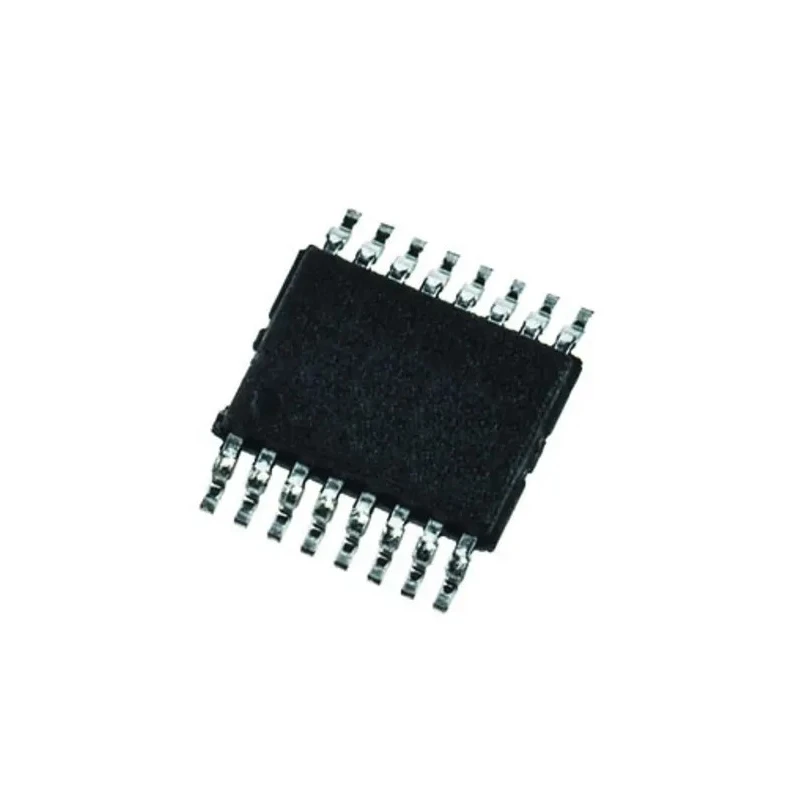

Infineon MOSFET Gate Driver 1 Output, 2.4 A, 16-Pin Surface Mount DSO Package 28 V 1ED020I12B2XUMA1

Infineon 1ED020I12B2XUMA1 MOSFET Gate Driver is a type of power management integrated circuit designed to provide isolated gate drive signals for MOSFET and IGBT transistors. It comes in a 16-pin DSO surface mount package, offering a compact form factor optimized for PCB layouts requiring precise and efficient gate control.

This driver supports an output current of 2.4 A, making it capable of driving power MOSFETs and IGBTs in applications such as AC motor drives, brushless DC motor controls, and general power switching circuits. The operational voltage range spans from 5.5 V minimum supply to a maximum of 28 V, lending versatility for various industrial and commercial power electronics systems.

The driver features an input to output isolation voltage to ensure robust electrical separation in sensitive circuits. It provides one driver with five outputs, facilitating multiple gate drive points. The switching characteristics include a fall time of 600 ns and rise time of 800 ns, enabling high-speed switching with reduced power losses.

Thermal specifications allow operation between -40°C and 105°C, suitable for harsh industrial and automotive environments, although it does not specifically meet automotive standards. The physical dimensions of the device are 10.47 mm in length, 7.59 mm in width, and 2.35 mm in height, compatible with advanced surface mount technology manufacturing.

The 1ED-B2 series from Infineon offers solutions for isolated MOSFET and IGBT gate drivers meeting industry demands for robust, efficient, and flexible device integration in power management circuits.

This MOSFET gate driver is designed for isolated MOSFET and IGBT gate drive applications. It supports a maximum output current of 2.4 A, enabling efficient switching performance. The device has a minimum supply voltage of 5.5 V and maximum of 28 V, allowing flexible operation ranges.

Featuring fall and rise times of 600 ns and 800 ns respectively, it ensures fast switching speeds. The 16-pin DSO surface mount package provides compact and reliable mounting suitable for automated assembly. Operating temperature ranges from -40°C to 105°C, suitable for industrial environments.

One driver output with five outputs, supporting robust gate driving configurations. Dimensions are 10.47 mm length, 7.59 mm width, and 2.35 mm height, fitting tight PCB layouts. No automotive standard compliance is declared.

The series identifier is 1ED-B2, indicating the product family within Infineon gate drivers.

This MOSFET gate driver is ideal for industrial electronics, power management, motor control, and automation applications including AC motors and brushless DC motor drives. Its robust isolation and efficient output drive ensure reliable operation in demanding electrical environments. For professional electronics engineers and manufacturers, this device supports streamlined PCB assembly and efficient power device control.
