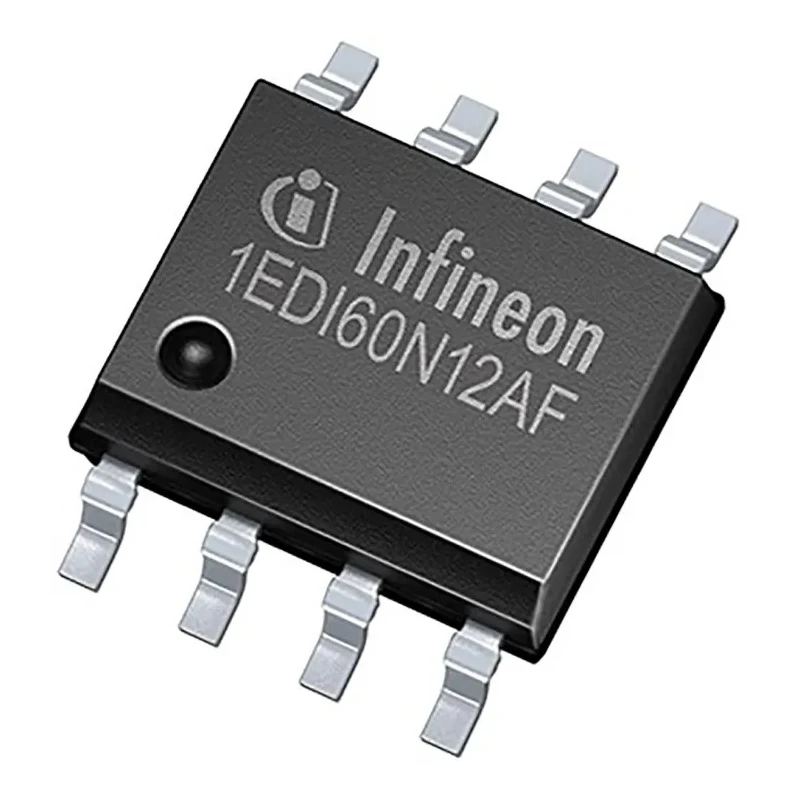

Infineon MOSFET Gate Driver 17V 10A 8-Pin Surface Mount 1EDI60N12AFXUMA1
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Infineon |
| Height | 1.65mm |
| Length | 5mm |
| Model | 1EDI60N12AFXUMA1 |
| Width | 4mm |
| Mount Type | Surface |
| Series | 1EDI60N12AF |
| Output Current | 10A |
| Maximum Operating Temperature | 125°C |
| Package Type | DSO |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Rise Time | 20ns |
| Pin Count | 8 |
| Minimum Supply Voltage | 17V |
| Number of Drivers | 2 |
| Fall Time | 19ns |
| Driver Type | MOSFET |
Key Features
- Dual isolated MOSFET gate drivers suitable for power management.
- 8-pin DSO package with surface mount design.
- Fast switching with 19ns fall time and 20ns rise time.
- Operating temperature range from -40°C to 125°C ensures reliability.
- Designed for AC motor and brushless DC motor drives.
- Separate source and sink outputs for accurate control.
- Optimized for MOSFET and IGBT gate driving applications.
- Manufactured in Indonesia adhering to industrial standards.
Product Description
The Infineon 1EDI60N12AFXUMA1 MOSFET Gate Driver is a high-performance isolated gate driver designed for MOSFET and IGBT applications, offering reliable operation at a supply voltage of 17V and delivering an output current of 10A. Packaged in an 8-pin DSO surface mount package, it features fast switching characteristics with a fall time of 19ns and a rise time of 20ns, making it ideal for high-speed power management circuits.
This device accommodates a wide operating temperature range from -40°C to 125°C, ensuring stable performance in harsh industrial, automotive, and commercial environments. With two outputs and drivers, it provides separate source and sink outputs for precise and efficient switching control.
Its compact dimensions (5mm length, 4mm width, 1.65mm height) enable integration into space-constrained circuit boards, commonly found in AC motor drives and brushless DC motor control systems. The surface mount design facilitates automated assembly processes.
Manufactured in Indonesia, the 1EDI60N12AFXUMA1 is suitable for applications in power management ICs within industrial electronics, motor drives, HVAC systems, and other demanding sectors requiring robust gate driving solutions.
Dual isolated MOSFET gate drivers suitable for power management. 8-pin DSO package with surface mount design. Fast switching with 19ns fall time and 20ns rise time. Operating temperature range from -40°C to 125°C ensures reliability.
Designed for AC motor and brushless DC motor drives. Separate source and sink outputs for accurate control. Optimized for MOSFET and IGBT gate driving applications. Compact size: 5mm length, 4mm width, 1.65mm height. Manufactured in Indonesia adhering to industrial standards.
Explore more power management ICs and MOSFET Gate Drivers in EnvMart's comprehensive electronics category to find the ideal components for your industrial or laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 10A.
This gate driver operates with a minimum supply voltage of 17V.
The dimensions of this unit are 5mm in length, 4mm in width, and 1.65mm in height.
It has an operating temperature range from -40°C to 125°C.
The Infineon 1EDI60N12AFXUMA1 is packaged in an 8-pin DSO surface mount design.
The rise time is 20ns and the fall time is 19ns.
This model features two outputs.
Yes, it is designed for AC motor and brushless DC motor drives.
It is optimized for MOSFET and IGBT gate driving applications.
This product is manufactured in Indonesia.
This unit has a pin count of 8.
Separate source and sink outputs allow for accurate control in switching applications, enhancing performance.
