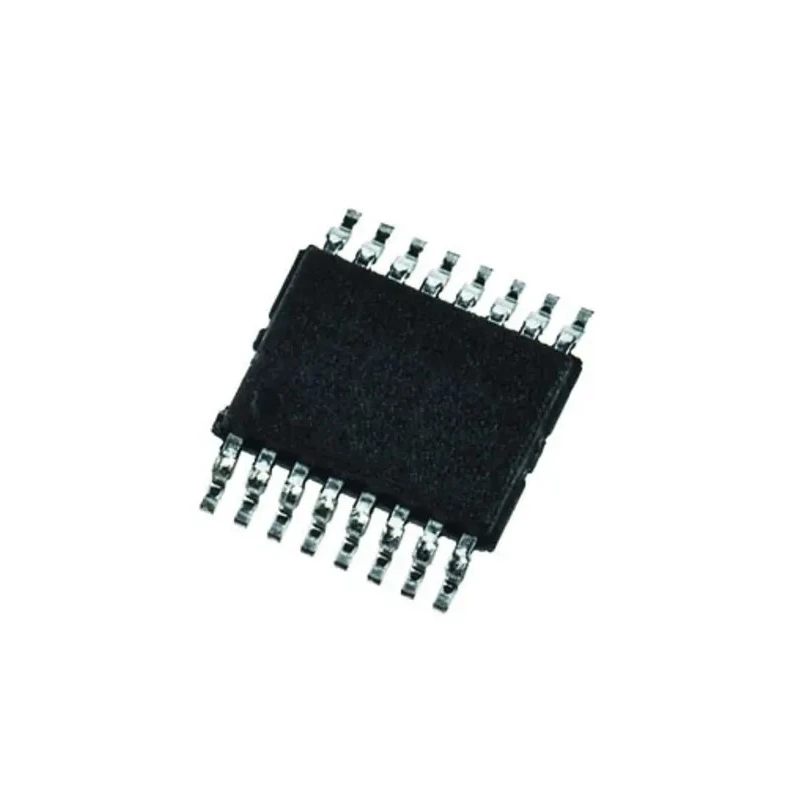

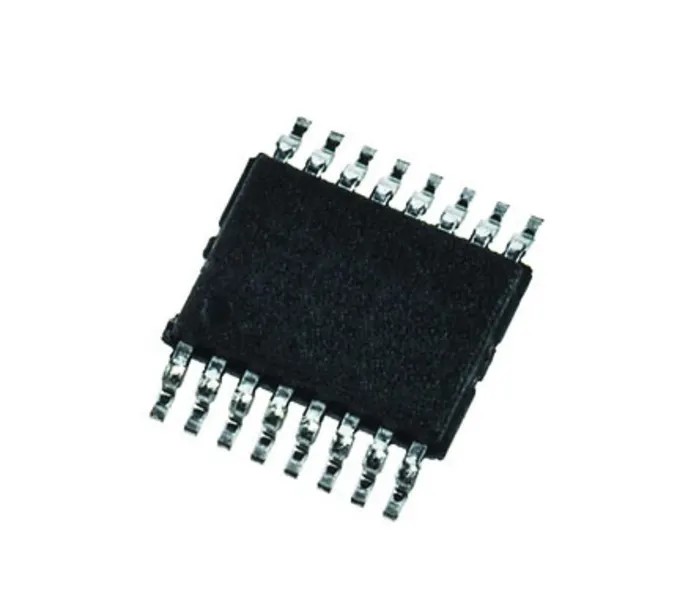

Infineon MOSFET Gate Driver 1 Output 2.4 A 28V 16-Pin DSO 1ED020I12B2XUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 2.35mm |
| Length | 10.47mm |
| Model | 1ED020I12B2XUMA1 |
| Width | 7.59mm |
| Mount Type | Surface |
| Series | 1ED-B2 |
| Output Current | 2.4A |
| Maximum Operating Temperature | 105°C |
| Package Type | DSO |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Rise Time | 800ns |
| Pin Count | 16 |
| Maximum Supply Voltage | 28V |
| Minimum Supply Voltage | 5.5V |
| Number of Drivers | 1 |
| Fall Time | 600ns |
| Driver Type | MOSFET |
Key Features
- Designed for isolated MOSFET and IGBT gate driving applications.
- Operating voltage range from 5.5V minimum to 28V maximum.
- Features fast fall and rise times of 600ns and 800ns respectively.
- Single output with 2.4A driving current capability.
- Compact 16-pin DSO surface mount package.
- Wide operating temperature range from -40°C to 105°C.
- Suitable for AC motor and brushless DC motor drive applications.
Product Description
Infineon 1ED020I12B2XUMA1 is a MOSFET Gate Driver designed for high-performance isolated MOSFET and IGBT gate driving applications. This device supports a single output with an output current capability of 2.4 A, ideal for power management and industrial electronics use cases. The driver operates over a broad voltage range from 5.5 V minimum to 28 V maximum, ensuring robust performance in demanding environments.
Engineered for surface mounting, the 16-pin DSO package offers compactness with precise dimensions of 10.47 mm length, 7.59 mm width, and 2.35 mm height, facilitating integration into space-constrained circuit designs. The device boasts fast switching speeds, with fall and rise times of 600 ns and 800 ns respectively, improving efficiency in motor drives and other power electronics applications.
This MOSFET Gate Driver provides separate source and sink outputs, allowing for efficient control of high-speed switching transistors. It is well suited for use in applications such as AC motors and brushless DC motor drives, enabling advanced industrial control systems, automation, and power management solutions.
With an operating temperature range from -40°C to 105°C, the gate driver is suitable for industrial and commercial environments requiring reliable temperature performance. It complies with no specific automotive standards and offers a reliable driver type in the 1ED-B2 series.
Designed for isolated MOSFET and IGBT gate driving applications. Operating voltage range from 5.5 V minimum to 28 V maximum. Fast switching with 600 ns fall time and 800 ns rise time. Single output with 2.4 A driving current capability.
Compact 16-pin DSO surface mount package. Temperature range from -40°C to 105°C suitable for industrial use. Ideal for AC motor and brushless DC motor driver applications.
Infineon products are known for their innovation and reliability in power semiconductor solutions. Explore the comprehensive selection of Infineon gate drivers and power management ICs on EnvMart for industrial, manufacturing, and electronic design applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Infineon MOSFET Gate Driver has an output current capability of 2.4 A.
It operates over a voltage range from 5.5 V minimum to 28 V maximum.
The rise time is 800 ns and the fall time is 600 ns, allowing for fast switching performance.
The package dimensions are 10.47 mm in length, 7.59 mm in width, and 2.35 mm in height.
It can operate within a temperature range from -40°C to 105°C.
This model is suitable for isolated MOSFET and IGBT gate driving applications, including AC motor and brushless DC motor drives.
This MOSFET gate driver provides a single output.
It is designed for surface mounting, suitable for compact circuit designs.
This model belongs to the 1ED-B2 series of gate drivers.
This MOSFET gate driver does not comply with any specific automotive standards.
This device contains a single driver.
The country of origin for this MOSFET gate driver is India.
